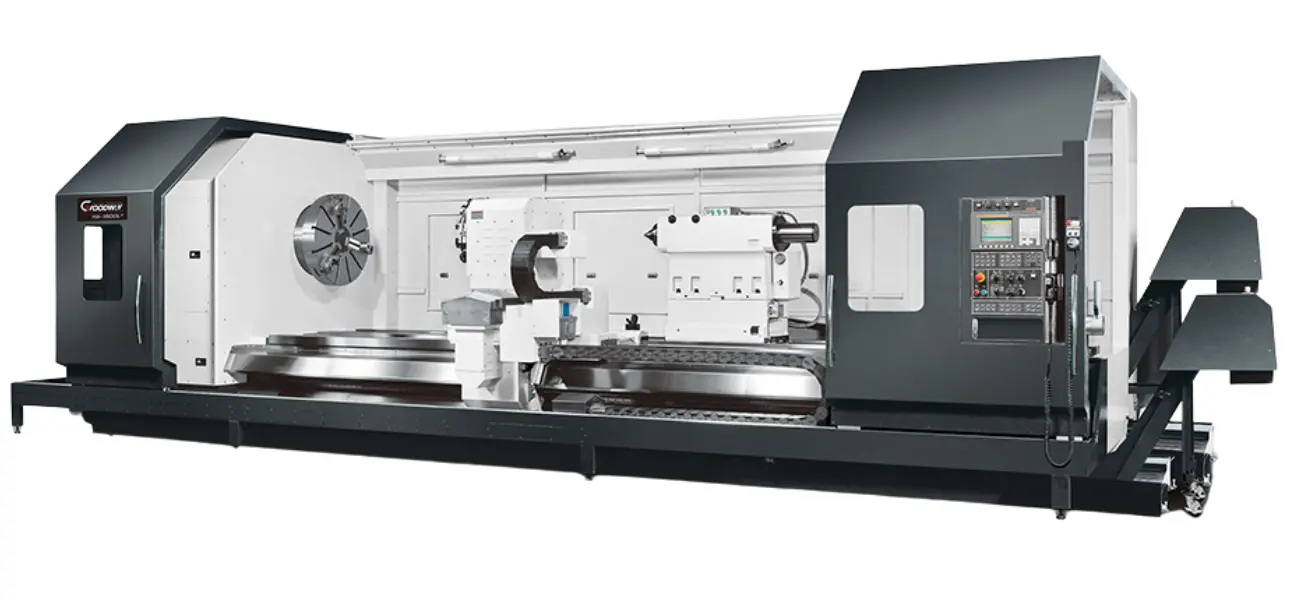

Together with the latest technology and high-quality components, the Goodway Flat-bed CNC Turning Center, HA series, utilizes high rigidity four box way bed with a 3-step gear spindle and servo indexing turret, to provide heavy-duty cutting capability for super large size workpiece applications. It is suitable for the oil and energy industry, aerospace and shipbuilding industry, and metallurgy industry. The optional four-way toolpost, boring tooling, and high rigidity steady rest equipment provide a more efficient turning performance for large workpiece applications. Furthermore, the live tooling center and C-axis are also available which allows the machine to perform more complicated tasks such as turning, milling, and drilling to fulfill your needs for today and tomorrow.
KEY FEATURES:
• One-piece 4-box way and flatbed casting provide a large platform with a heavy-duty structure, suitable for super large size workpiece applications.
• 3-step gear spindle provides great torque output under low speed, to fulfill heavy cutting needs.
• Key components such as the X-axis saddle, turret, and tailstock are designed with optimized configuration, to greatly increase structural rigidity and ensure both heavy-duty cutting and precision turning capabilities.
• Z-axis twin chip conveyor system with a separated large coolant tank design provides highly efficient chip disposal and stable turning accuracy.
| Swing Over Saddle | 1,500 mm | 59.055" |
| Max Swing Diameter | 2,000 mm | 78.74" |
| Max Turning Diameter | 1,700 mm | 66.929" |
| Max Turning Length | 5,000 mm | 196.85" |
| Spindle Center Height (from ground) | 1,625 mm | 63.976" |
| Flat Bed Height | 815 mm | 32.087" |
| Flat Bed Width | 1,350 mm | 53.15" |
| Table Load | 15,000 kg | 33,069.3 lb |
| Transverse Travel (X) | 695 mm | 27.362" |
| Longitudinal Travel (Z) | 5,150 mm | 202.76" |
| CN Control | Fanuc 0i-TF PLUS | Fanuc 0i-TF PLUS |
FANUC 0I-TF PLUS WITH 10.4" LCD SCREEN
FANUC ABSOLUTE ENCODER AC SERVO DRIVE MOTORS
BOX GUIDWAYS ON ALL AXES
MAIN SPINDLE ALPAH 40 (37/45KW) MOTOR WITH 3 SPEED GEAR BOX
UPGRADED MAX. TURNING LENGTH TO 5,000 MM
12 STATION LIVE TOOLING TURRET, DRIVEN TOOL MOTOR 7.5/9 kW, ID SHANK 60MM, OD SHANK 32MM, LIVE TOOL COLLET 0° ER-50, 90°: ER-40 MAX. SPEED 3000 RPM
- CLAMPING PIECE (CA-3044/ CA-3045, 3 PCS OF EACH)
- OD TOOL HOLDER (CA-3377B) X 2 SETS
- FACING TOOL HOLDER (VI-3680) X 1 SET
- ID TOOL HOLDER (VI-3676) X 6 SETS
- DRILL SOCKET (CA-3041A/B) MT4/ MT5 X 1EA
- BORING BAR SLEEVE (CA-3042A/B/C) DIA. 32/ 40/ 50 X 1EA
- BORING BAR SLEEVE (CA-3043A/B) DIA. 20/ 25 X 1EA
- THROW-AWAY DRILL SOCKET (CA-30A2A/B/C) DIA. 32/40/50 X 1EA
2 X 0° LIVE TOOL HOLDER ER-50/EC
2 X 90° LIVE TOOL HOLDER ER-40/EC
CF-AXIS (GREASE TYPE SPINDLE)
CHIP CONVEYOR (HINGE TYPE) WITH AUTO TIMER
COOLANT SYSTEM WITH GRUNDFOS 3/4 HP COOLANT PUMP
ELECTRIC CABINET HEAT EXCHANGER
FOUNDATION AND LEVELING KIT/MAINTENANCE TOOL KIT
OPERATION & MAINTENANCE MANUALS
