NEW 2024 HAITIAN PRECISION TC25X500II

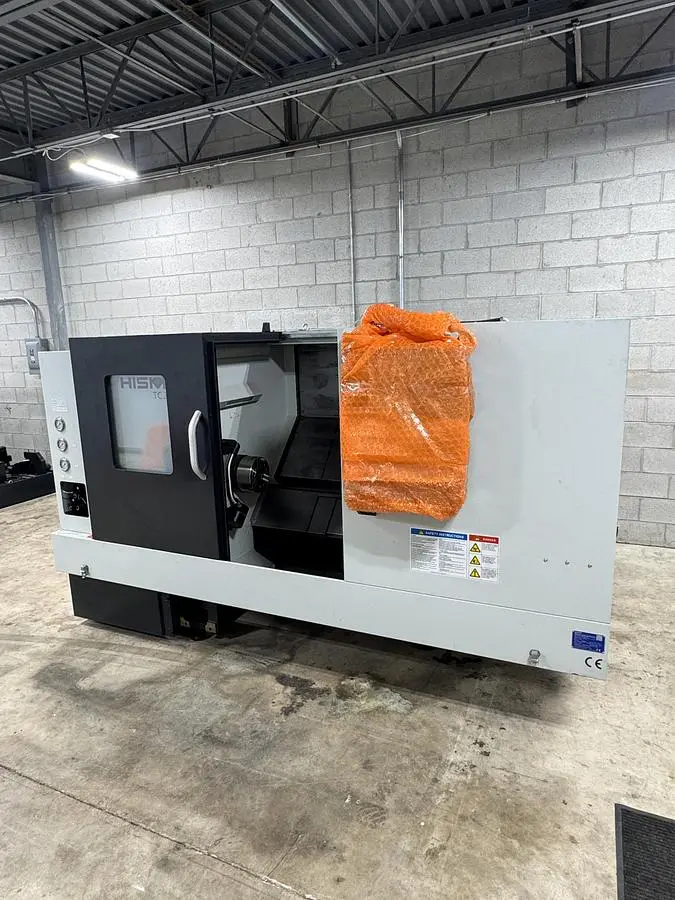

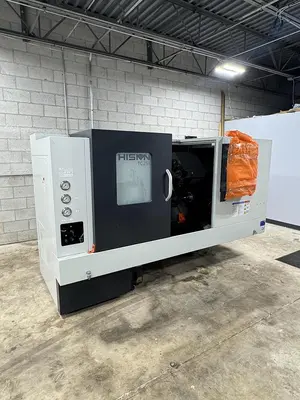

The Haitian Precision TC25x500II is a new horizontal box way lathe offering robust performance for various metalworking applications. This model supports a maximum swing over bed of 22 inches and a swing over saddle of 12.6 inches, accommodating diverse workpiece dimensions. It provides a maximum turning diameter of 15.7 inches and a turning length of 21.6 inches, making it versatile for medium-sized jobs.

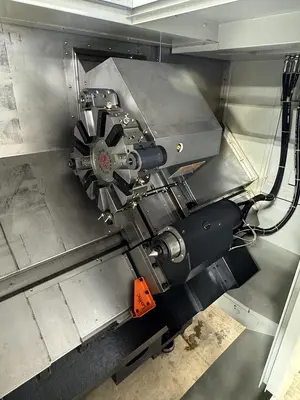

Powerful yet precise, the lathe operates with a spindle speed reaching up to 4500 rpm. The spindle power is 20.1 HP under S6 duty and 14.8 HP under S1 duty, delivering substantial torque for efficient material removal. The hydraulic turret accommodates 12 tools with a swift tool-changing time of 0.55 seconds, enhancing productivity during operations.

Featuring a Fanuc 0i TF PLUS control system, this machine ensures ease of operation alongside precision. Rapid feeds of up to 1181 ipm for the X-axis and 945 ipm for the Z-axis allow for fast and accurate positioning. With additional features like a hydraulic tailstock and a 53-gallon coolant tank, the TC25x500II is well-equipped for reliable, high-performance machining tasks. Weighing 9921 lbs, it is built for stability and durability in demanding industrial environments.

Max. Swing Over Bed: 22 in.
Max. Swing Over Saddle: 12.6 in.
Max. Turning Diameter: 15.7 in.
Max. Turning Length: 21.6 in.
Spindle Center Height: 38.6 in.
X - Axis Stroke: 8.3 in.
Z - Axis Stroke: 24 in.
Turret Type: Hydraulic
Turret Capacity: 12
Tool Changing Time (including clamp): 0.55 sec
OD Tool Size: 0.98 x 0.98 in.
Max Boring Bar Size (Holder): 1.57 in.
Drive Type: Belt
Max. Spindle Speed: 4500 rpm
Spindle Power (S6/S1): 20.1 / 14.8 HP
Spindle Torque (S6/S1): 184.4 / 103.3 ft-lbs
Spindle Through Hole: 2.44 in.
Spindle Bearing Diameter (front): 3.94 in.
Chuck Size (Hollow): 8 in.
Bar Through Spindle Diameter: 2.008 in.
Rapid Feed X/Z: 1181 / 945 ipm
Servo Motor Power X/Z: 2.41 HP
Tail Stock Type: Hydraulic
Quill Bore Taper: MT No. 4
Tailstock Travel: 16.1 in.
Quill Diameter: 3.94 in
Quill Travel: 4.7 in
Machine Weight: 9921 lbs
Coolant Tank: 53 Gal
Control: Fanuc 0i TF PLUS (ß5)
