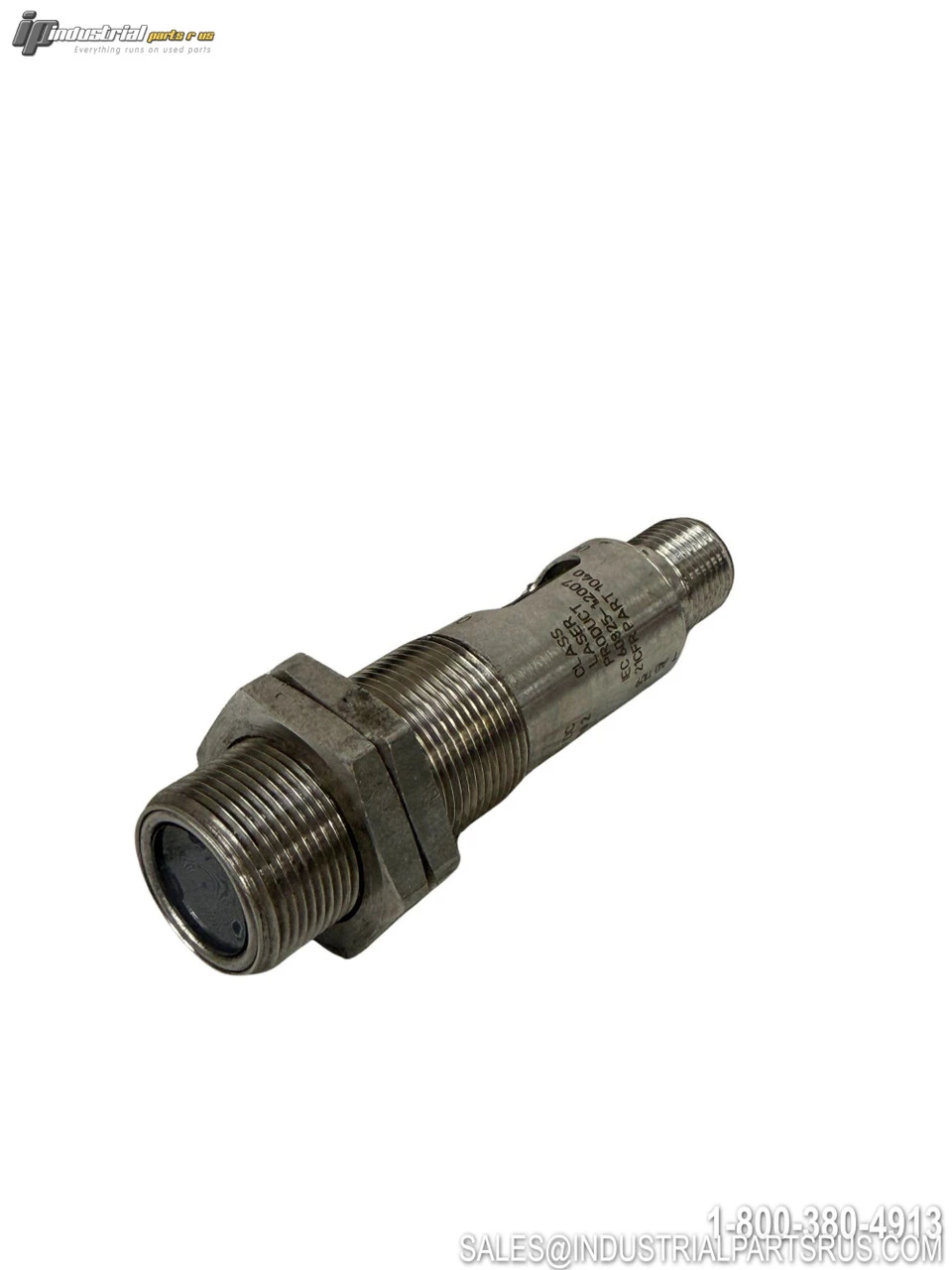

The IFM Electronic OGE701 is a professional through-beam laser sensor receiver designed for industrial automation applications. This M18 threaded sensor features a 2-meter sensing range with 655nm red laser wavelength and provides reliable object detection with programmable light-on/dark-on switching functionality.
Specification
Value
Brand
IFM Electronic
Model/Part Number
OGE701
Type
Through Beam Sensor
Sensor Type
Laser Through-Beam Receiver
Sensing Range
2m
Operating Voltage
10-36V DC
Output Type
PNP
Current Type
DC
Current Consumption
11mA
Housing Thread
M18 x 1
Mounting Type
Threaded
Length
72mm
Connection Type
M12 Connector
Termination Type
M12 Connector
Housing Material
Stainless Steel 316L
Lens Material
PMMA
Protection Rating
IP65/IP67
Wavelength
655nm (Red Laser)
Switching Function
Light-On/Dark-On Programmable
Wire Configuration
3-Wire
Weight
50g
