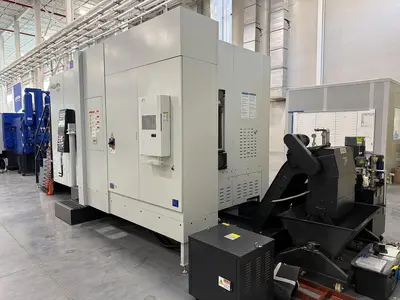

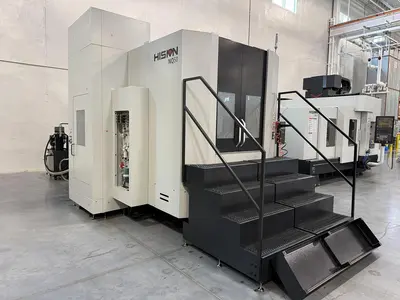

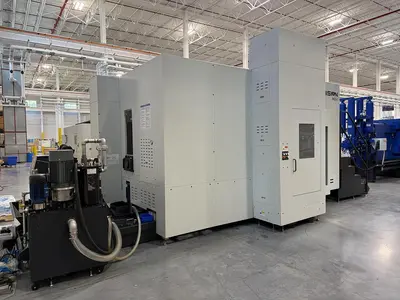

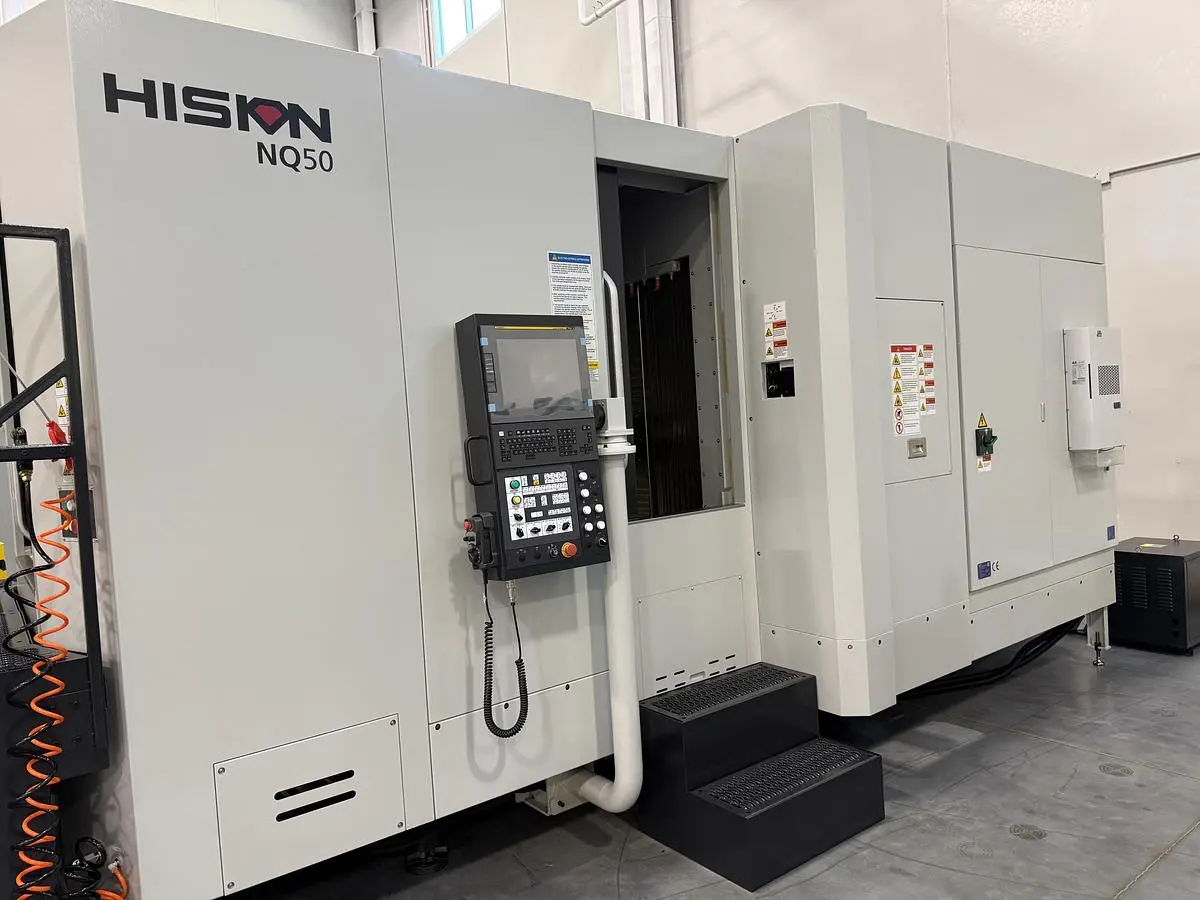

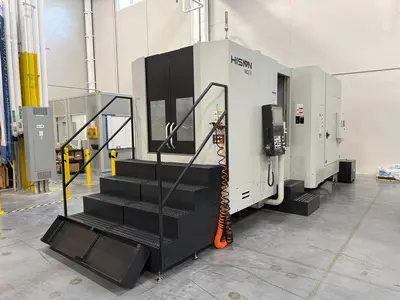

NEW 2025 HAITIAN PRECISION NQ50

X Travel (in): 28.7
Y Travel (in): 28.7
Z Travel (in): 31.5
Spindle Center to Table Surface (in): 3.1 - 31.9
Spindle Nose to Table Surface (in): 2.8 - 34.3
Table Size (in): 19.7 x 19.7
Table Load (lbs.): 1102
Max. Work Piece Size (Ø x H) (in): Ø31.50" × 39.37"
Pallet Indexing: .001° (NC rotary Table)
Pallet Change Type: APC Rotary
Pallet Exchange Time: 9 Sec.
Pallet Quantity: 2 (Bolt Hole)
Drive Type: Built-in Spindle
Spindle Taper: CAT40 - BIG PLUS
Max. Spindle Speed (rpm): 12000
Spindle Power (HP): 50 / 25
Spindle Torque (ft-lbs): 184.4 / 70.4
Pull Stud: 45° ANSI (CAT 40)
Rapid Traverse (X/Y/Z) (ipm): 2362 / 2362 / 2362
Cutting Feed Rate (X/Y/Z) (ipm): 2362 / 2362 / 2362
Tool Magazine Capacity: 60
ATC Magazine Type: Vertical Double Servo
Tool Change Time (T-T): 1.5 sec
Max. Tool Dia. (Full / Adjacent Vacant) (in): ⌀3.1 / ⌀6.3
Max. Tool Length (in): 19.7
Max. Tool Weight (lbs): 26.5
Machine Weight (lbs): 36376.27
Power Capacity (A): 240
Control: FANUC 31i MODEL-B PLUS 15"
