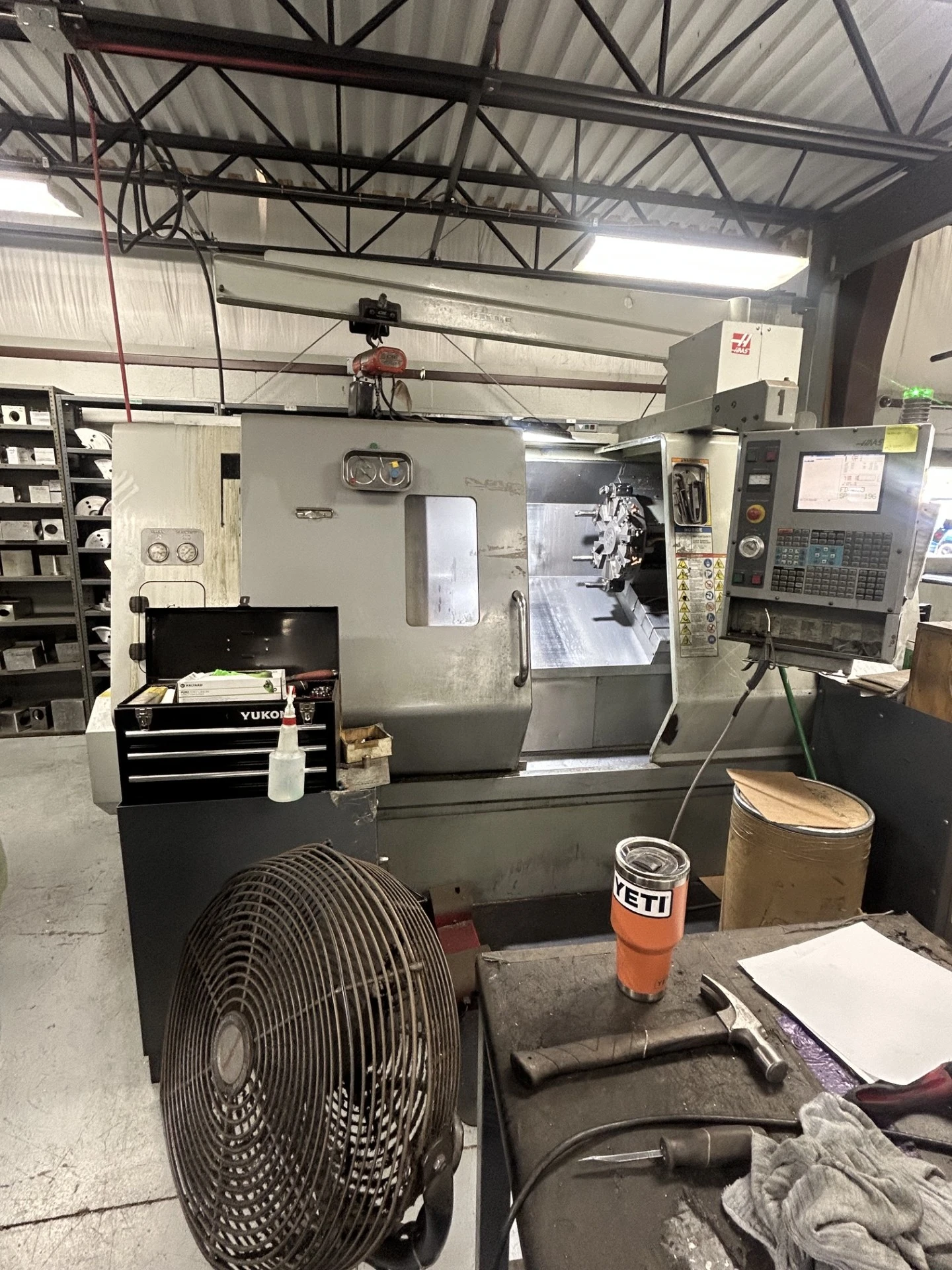

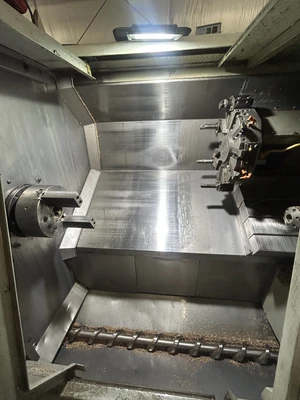

2004 Haas SL-30T Turning Center

Model: SL-30T
Year: 2004
Type: CNC Slant-Bed Lathe with Tailstock
Axes: 2-axis (X & Z)

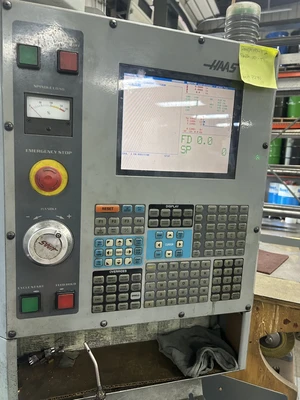

Control: Haas CNC Control (full conversational operation)

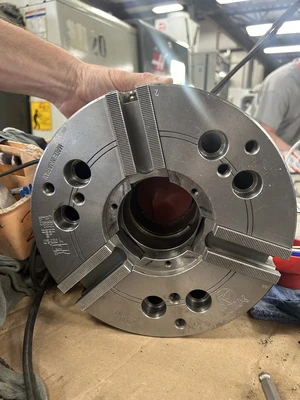

Chuck Size: 10″ hydraulic chuck
Bar Capacity: 3.00″ (76 mm)
Max Turning Diameter: 17.00″ (432 mm)
Max Turning Length: 34.00″ (864 mm)
Swing Over Bed: 30.00″ (762 mm)
Swing Over Front Apron: 30.00″ (762 mm)
Between Centers: 39″ (991 mm)
Spindle Bore: 3.50″ (88.9 mm) A2-8
Spindle Motor: 30 HP (22.4 kW) belt-driven constant surface speed
Max Spindle Speed: 3,400 RPM
Torque: ~850 ft-lb @ 250 RPM (optional transmission)
Max Power Rating: 30 HP
Rapid Traverse: ~710–945 IPM depending on source

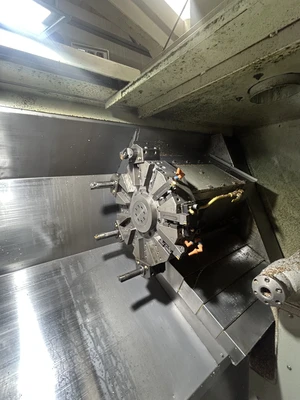

Turret: 12-station hydraulic turret with bolt-on tool change
Live Tooling: No

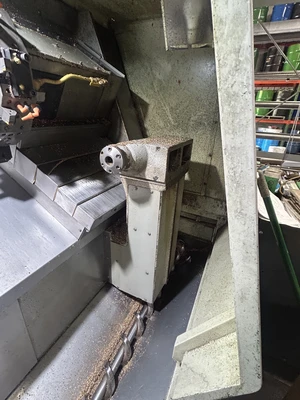

Tailstock: Programmable hydraulic tailstock
Workholding: Chuck
Rigidity: Single-piece cast iron bed with box ways
Weight: ~14,000 lbs
Dimensions: ~162″ x 64″ x 75″
