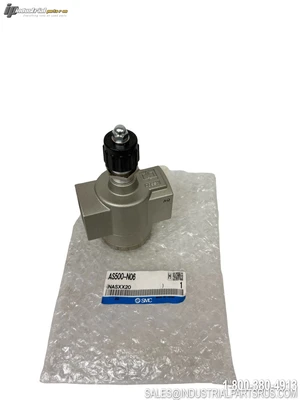

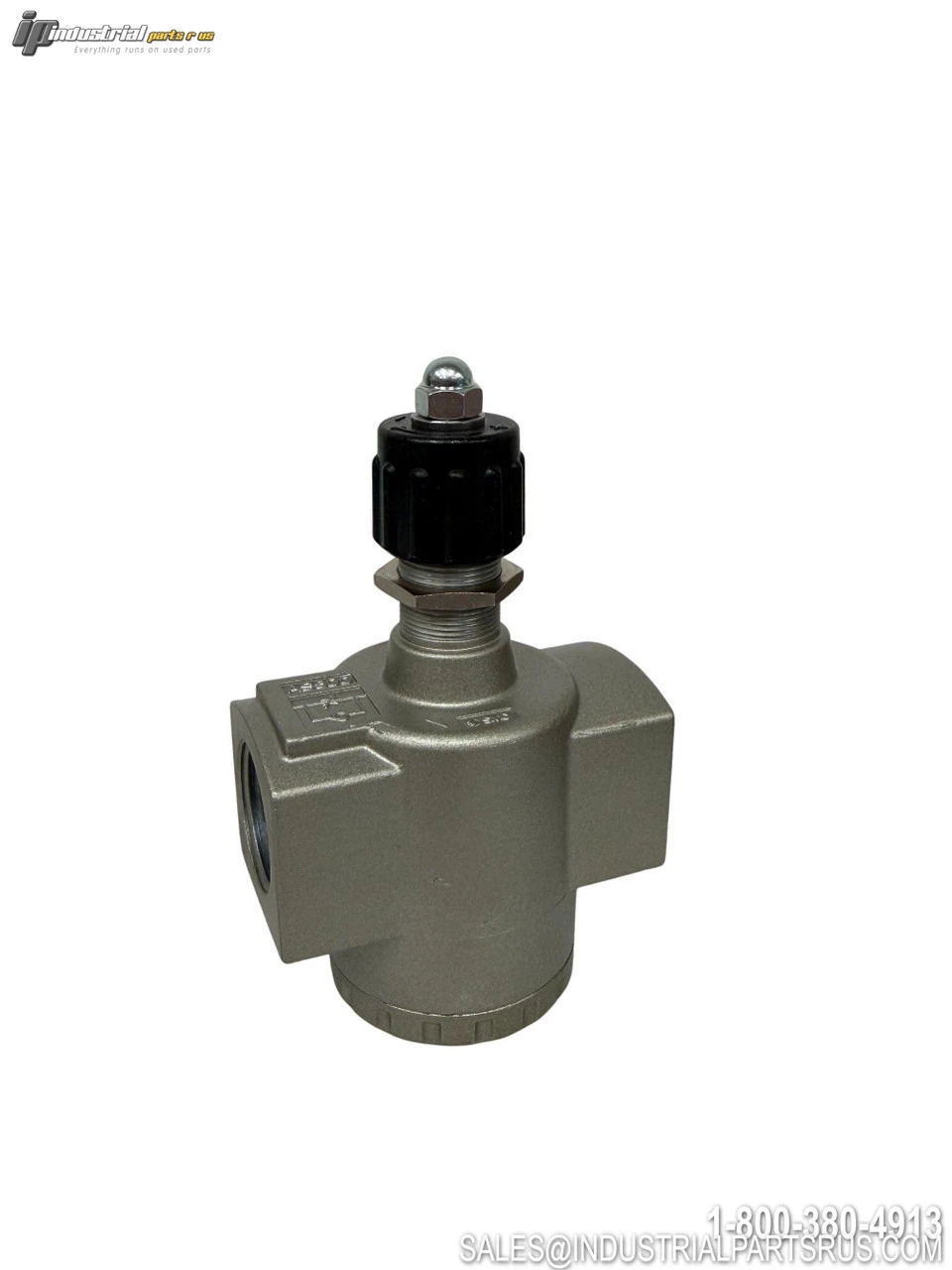

USED SMC AS500-N06

The SMC AS500-N06 is a pneumatic flow control valve/speed controller designed for air applications with meter-out flow control. This inline-type device features an aluminum body with 3/4" NPT threaded connections and needle valve control mechanism for precise speed adjustment. It operates within a pressure range of 0.05 to 1.0 MPa and temperature range of -5 to +60°C.
Specification
Value
Brand
SMC
Model/Part Number
AS500-N06
Product Type
Pneumatic Flow Control Valve/Speed Controller
Series
AS
Construction Type
Inline
Body Size
3/4"
Port Size
3/4"
Thread Standard
NPT
Connection Type
Female NPT Threaded
Body Material
Aluminum
Seal Material
Nitrile
Valve Function
Needle
Metering Type
Meter Out
Operating Medium
Air
Operating Pressure Range
0.05 to 1.0 MPa
Maximum Operating Pressure
1.0 MPa
Minimum Operating Pressure
0.05 MPa
Proof Pressure
1.5 MPa
Operating Temperature Range
-5 to +60°C
Flow Coefficient (Controlled Flow)
123 mm²
Flow Coefficient (Free Flow)
154 mm²
Overall Length
74 mm
Overall Width
50 mm
Overall Height
115 mm
Standards Compliance
JIS
We warranty all items for 30 days from date of purchase.

SKU: AI1633
UPC: 679523686284
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686284
Manufacturer: SMC
Part Number: AS500-N06
Shelf: A-6
Model: AS500-N06
MPN: AS500-N06
Type: Pneumatic Valve
