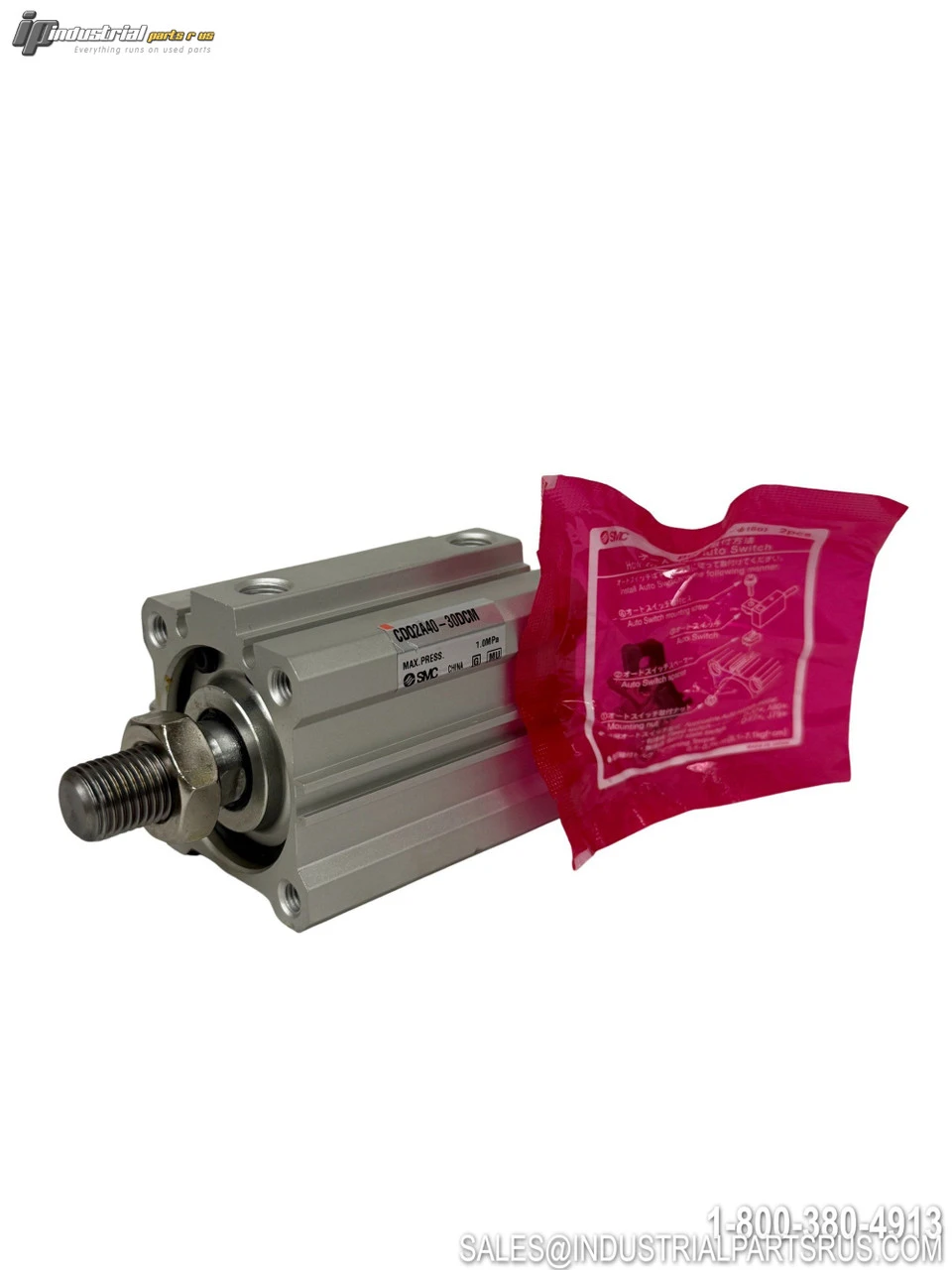

USED SMC CDQ2A40-30DCM

The SMC CDQ2A40-30DCM is a compact pneumatic cylinder from the CQ2 series, designed for space-saving industrial automation applications. This double-acting single rod cylinder features auto switch mounting capabilities and the compact body design that makes the CQ2 series the world's best-selling pneumatic cylinder line.
Specification
Value
Brand
SMC
Model/Part Number
CDQ2A40-30DCM
Series
CQ2
Product Type
Compact Pneumatic Cylinder
Action
Double Acting, Single Rod
Bore Diameter
40mm
Stroke Length
30mm
Maximum Operating Pressure
1.0 MPa (145 PSI)
Proof Pressure
1.5 MPa (218 PSI)
Port Thread
1/8 BSPT (32-100mm bore series)
Operating Temperature
-10°C to +60°C
Mounting Style
Through-hole/Both Ends Tapped
Auto Switch Capable
Yes, 4-surface mounting
Product Status
Obsolete
We warranty all items for 30 days from date of purchase.

SKU: AI1616
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Manufacturer: SMC
Part Number: CDQ2A40-30DCM
Shelf: A-11
Model: CDQ2A40-30DCM
MPN: CDQ2A40-30DCM
Type: Pneumatic Cylinder
