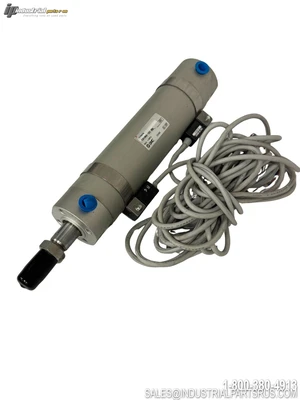

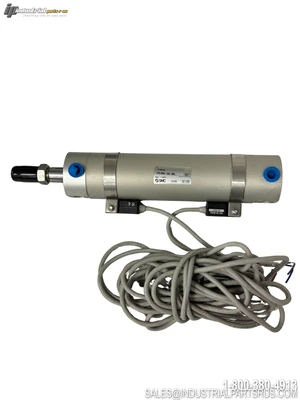

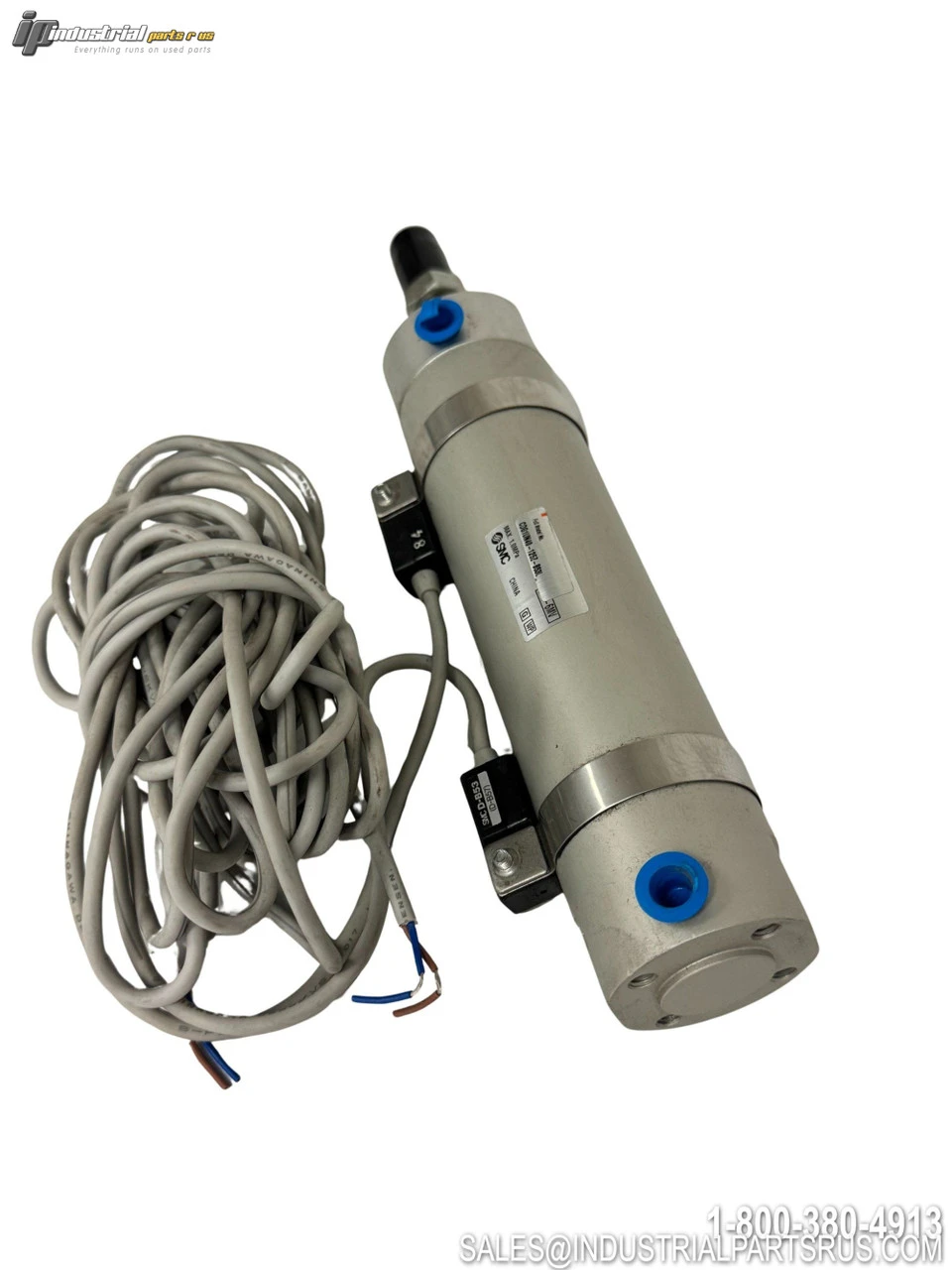

USED SMC CDG1UN40-125Z-B53L
Overview
Description
The SMC CDG1UN40-125Z-B53L is a double acting, single rod pneumatic cylinder from SMC's proven CG1 series. This round body cylinder features a 40mm bore diameter, 125mm stroke length, and includes auto switch capability for position sensing applications. The impact extruded aluminum tube provides exceptional smoothness for low breakaway pressure and smooth stroke operation.
Specification
Value
Brand
SMC
Model/Part Number
CDG1UN40-125Z-B53L
Series
CG1
Cylinder Type
Double Acting, Single Rod
Bore Diameter
40mm
Stroke Length
125mm
Max Operating Pressure
1.0 MPa
Min Operating Pressure
0.05 MPa (50 kPa)
Connection Port Size
RC1/8"
Rod End Type
Male Thread
Piston Rod Thread
M14 x 1.5mm
Piston Rod Material
Carbon Steel
Housing Material
Aluminum Alloy
Seal Material
NBR
Auto Switch Capability
Yes (B53L)
Overall Length
255mm
Width
44mm
Mounting Type
Basic Style
Max Piston Speed
1 m/s
Min Piston Speed
50 mm/s
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 2.00 LBS | 2.00 LBS |
|---|
SKU: AI1634
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: CDG1UN40-125Z-B53L
Shelf: B-4
Bore Diameter: 40 mm
Model: CDG1UN40-125Z-B53L
MPN: CDG1UN40-125Z-B53L
Type: Pneumatic Cylinder
