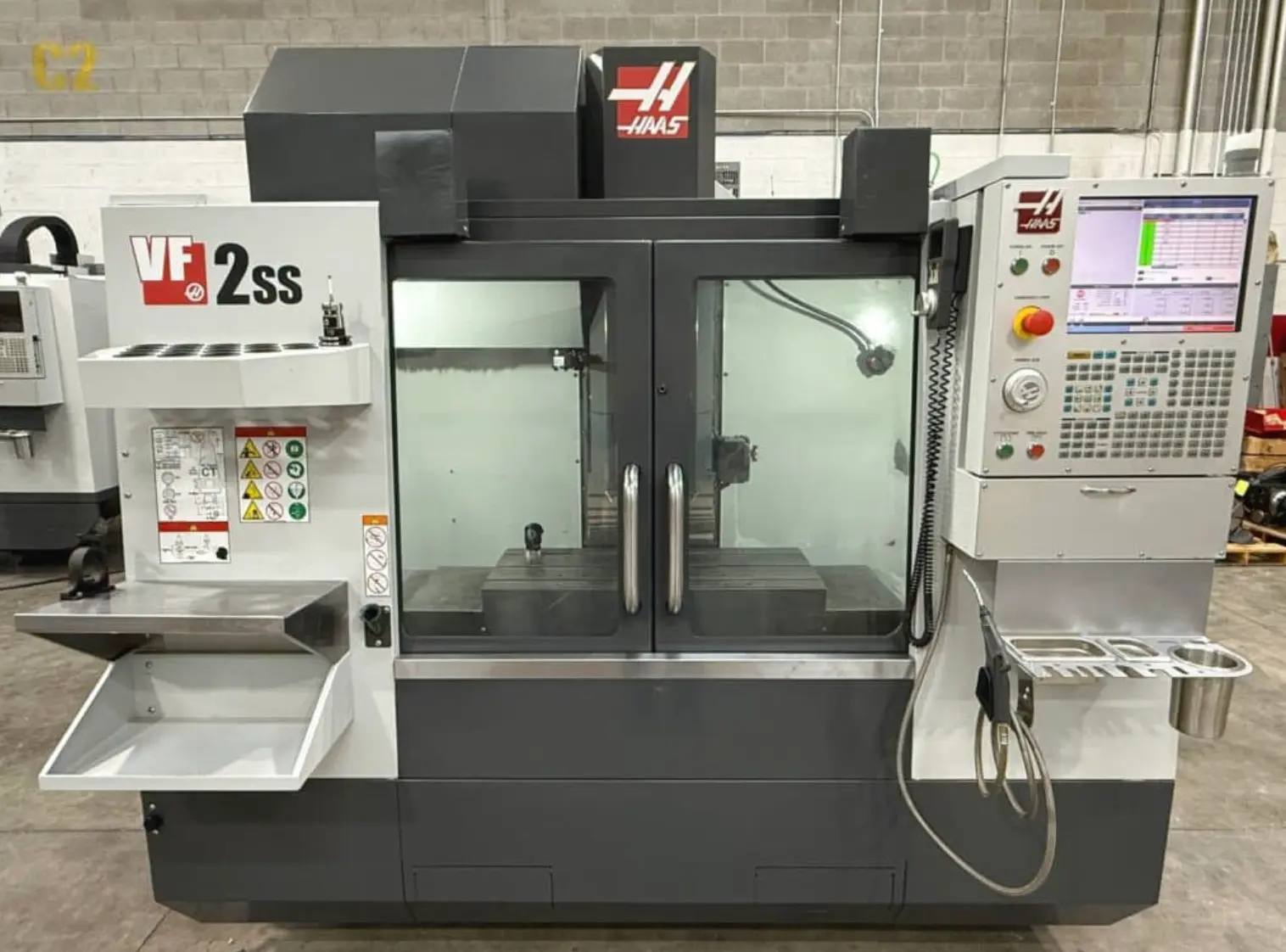

Used Vertical Machining Center, 3-axis, 30" x 16" x 20" travels, 12,000 RPM, 30 ATC. Features Haas NextGen Control, Renishaw WIPS, high-speed machining, and more. Equipped with a reliable 30 hp power and CAT 40 taper.
| X | 30" | 762 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |
| # Axis | 3 | 3 |
| Control | CNC (HAAS) | CNC (HAAS) |
Haas NextGen Control, Renishaw Wireless Intuitive Probing System (WIPS), Side-Mount Tool Changer (30 ATC), Window Air Blast, Chip Auger, Visual Part Programming System (VPS Editing), Coordinate Rotation & Scaling, Media Display M-Code (M130), High-Speed Machining, Spindle Orientation, Rigid Tapping, Macros, Ethernet, USB Port, 1Gb Memory, Wifi Connection
