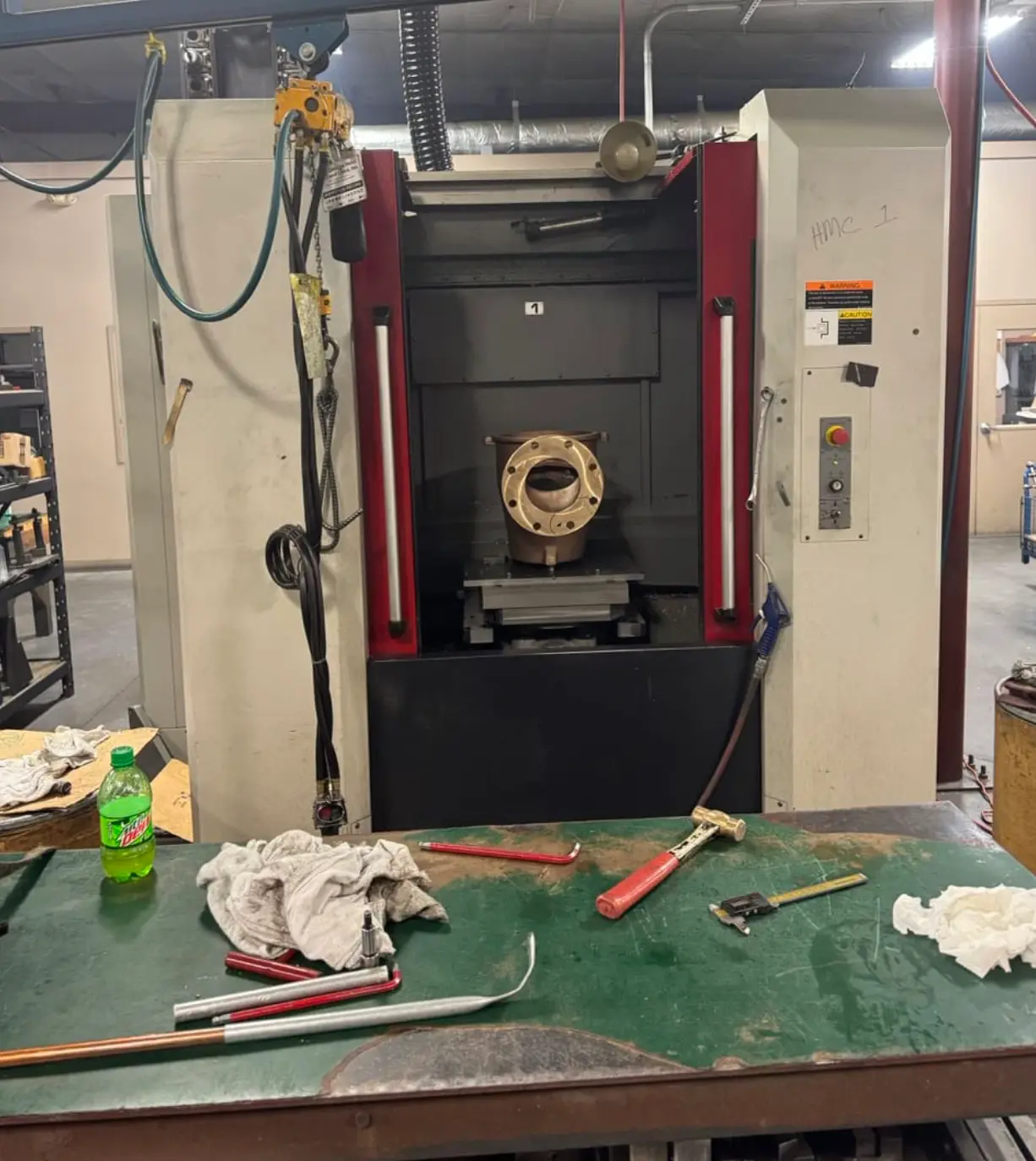

Horizontal Machining Center, used with 8,215 hours. Features include Fanuc 31i-B CNC Control, 50 HP spindle, 15,000 RPM, 22" travels in X/Y, 27" Z travel, and dual pallets.
| X | 22" | 558.8 mm |
| Y | 22" | 558.8 mm |
| Z | 27" | 685.8 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 60 | 60 |
| Taper | BT 40 | BT 40 |
| Pallet-W | 15.75" | 400.05 mm |
| Pallet-L | 15.75" | 400.05 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 102″ x 202″ x 142″ | 102″ x 202″ x 142″ |
| Weight | 18,800 lb | 18,800 lb |
X-Travel: 22.05″
Y-Travel: 22.05″
Z-Travel: 27.17″
Rapid Traverse: 2,480 IPM
Cutting Feed Rate: 1575 IPM
Table / Pallet Indexing: 0.001
Horizontal Table/Pallet Size: 15.75″
Number of Pallets: 2
Spindle Taper Type: BT40
Spindle Speed: 15,000 RPM
Spindle Motor: 50 HP
Tool Magazine Capacity: 60
Tool Changer Type: Arm
Tool Change Time: 1.4 seconds
Chip-to-Chip Time: 3 seconds
Machine Dimensions: 102″ x 202″ x 142″
Machine Weight: 18,800 lb
Power Requirements: 220V/ 3phase
Hours: 8,215
Fanuc Series 31i-B CNC Control
Absolute Position Detection
Alarm Display/Alarm History Display
Auto Corner Override
Auto Restart
Automatic Coordinate System Setting
Auxillary Function, MST Look
Background Editing Function
Backlash Compensation
Backlash Compensation: for rapid traverse & cutting feed
Block Delete
Clock Function
Cutter Compensation C Tool offset memory radius, G40-G42
Data Protect Key
