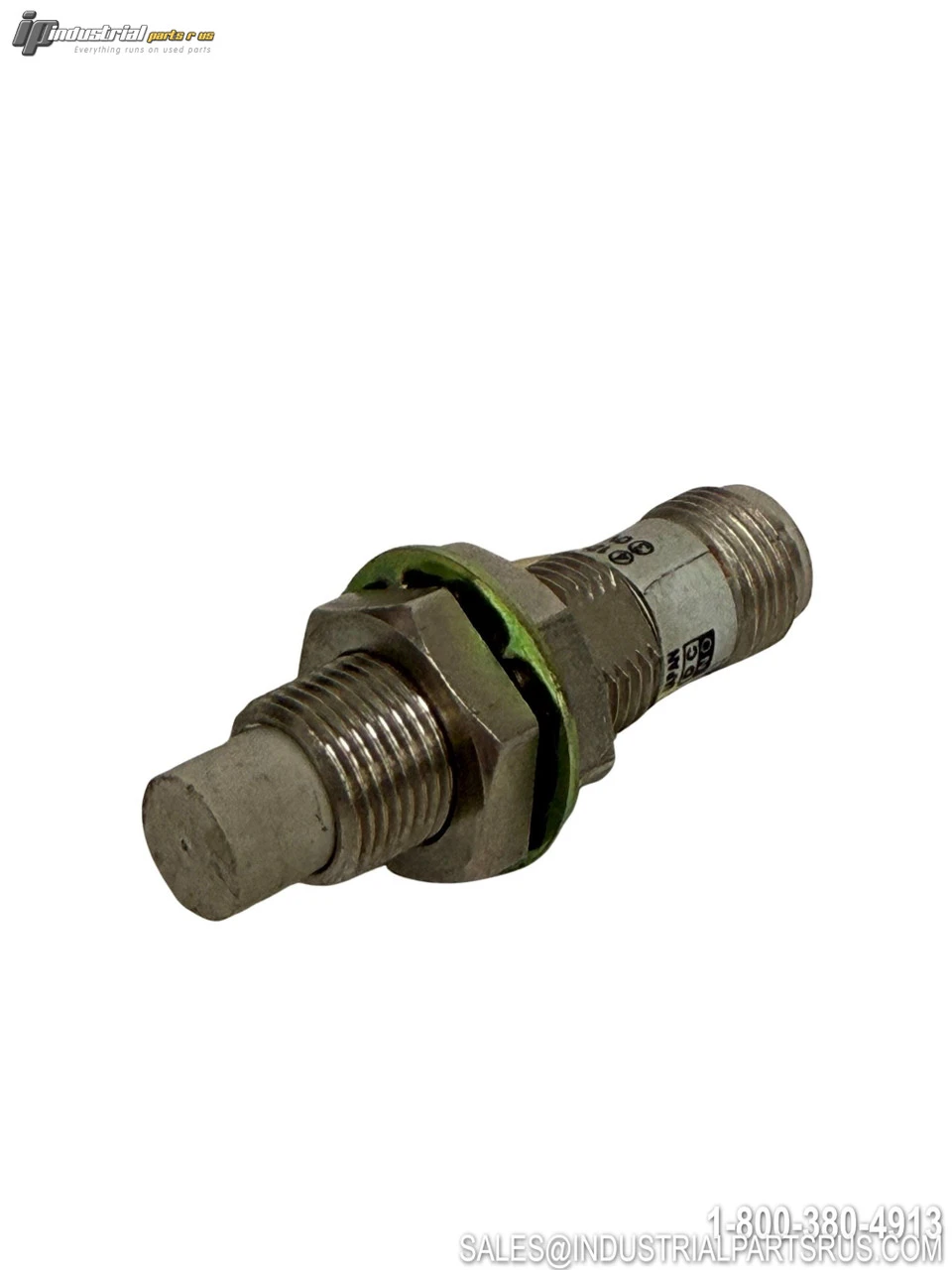

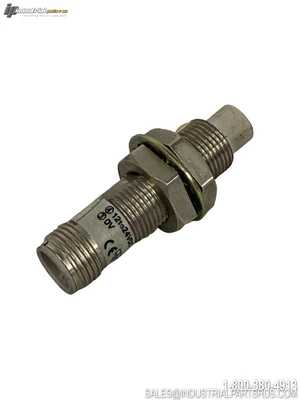

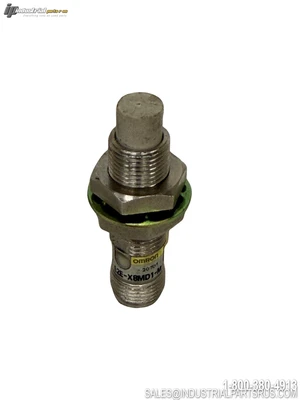

USED OMRON E2E-X8MD1-M1

The Omron E2E-X8MD1-M1 is an inductive proximity sensor designed for reliable detection of ferrous metals in industrial applications. This unshielded sensor features an 8mm sensing range with M12 connector and operates on DC 2-wire configuration with normally open output.
Specification
Value
Brand
Omron
Model/Part Number
E2E-X8MD1-M1
Sensor Type
Inductive Proximity Sensor
Series
E2E
Sensing Range (Nominal)
8mm
Setting Distance (Actual)
0 to 6.4mm
Sensing Technology
Inductive
Design
Unshielded / Non-embeddable
Output Type
DC 2-Wire, NO (Normally Open)
Contact Form
NO (Normally Open)
Supply Voltage
10-30VDC (12-24VDC nominal)
Switching Frequency
800Hz max
Connection Type
M12 Connector
Shape
M12 Threaded Cylindrical
Housing Diameter
12mm
Thread Size
M12 x 1
Housing Material
Nickel-plated Brass
Sensing Surface Material
Thermoplastic P.B.T. Polymer
IP Rating
IP67
Operating Temperature
-25°C to +70°C
Mounting Type
Non-flush / Unshielded
Sensible Object
Ferrous Metal
Load Current
3-100mA
We warranty all items for 30 days from date of purchase.

SKU: AI1629
UPC: 679523686208
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686208
Output Type: NO (Normally Open)
Sensor Type: Inductive Proximity Sensor
Full Load Amps: 3-100mA
Manufacturer: Omron
Part Number: E2E-X8MD1-M1
Shelf: N-5
Model: E2E-X8MD1-M1
MPN: E2E-X8MD1-M1
Type: Inductive Proximity Sensor
