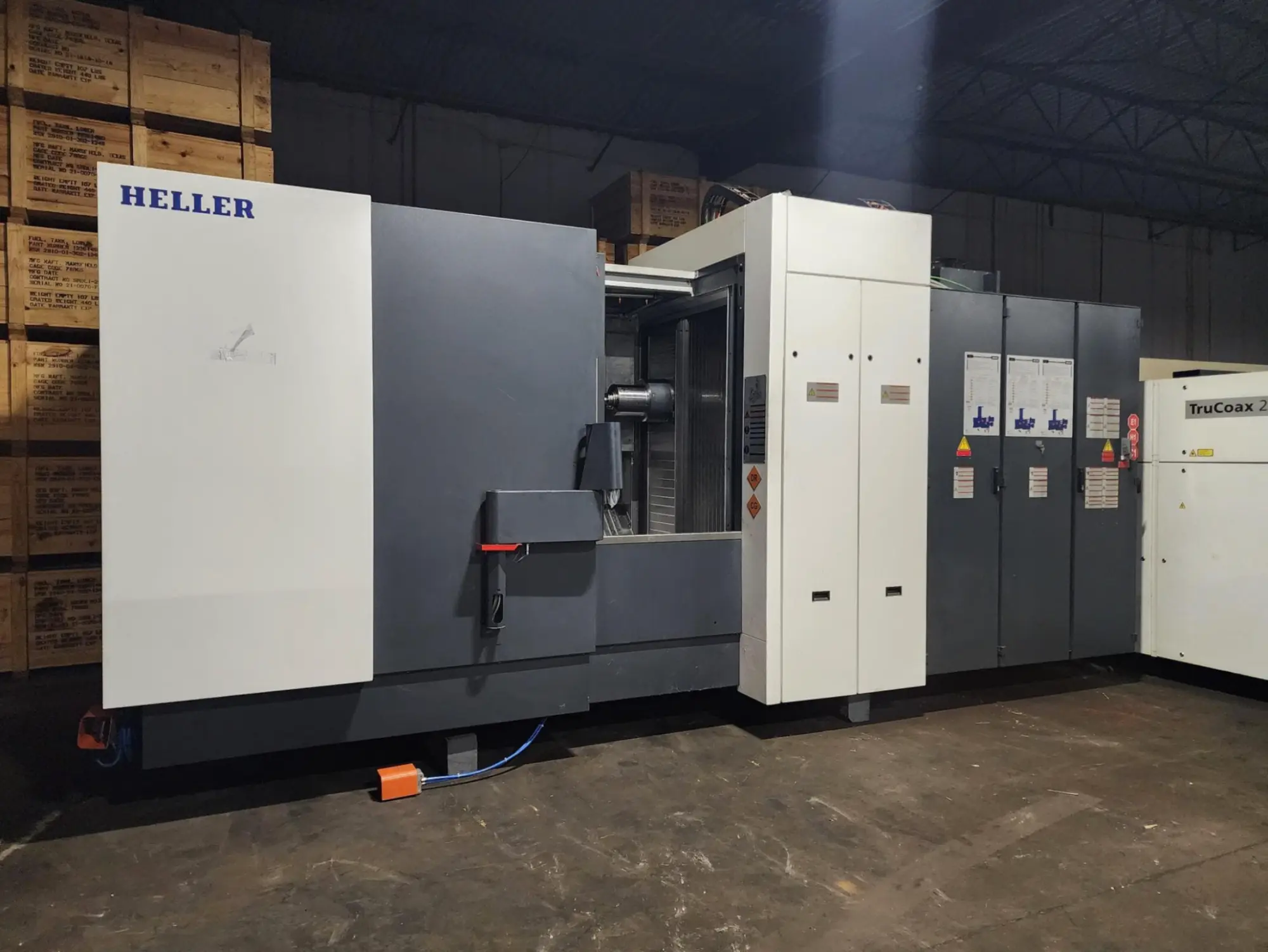

Used Horizontal Machining Center. Features include X/Y/Z travel of 900/950/930 mm, 10,000 RPM spindle, and 100-station ATC. Table size ~810×900 mm, max load 750-850 kg, and powerful 1,000 PSI coolant.
| X | 35.4" | 899.16 mm |
| Y | 37.4" | 949.96 mm |
| Z | 35.4" | 899.16 mm |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 100 | 100 |
Work Envelope / Travels
X-Axis Travel: ~900 mm (≈ 35.4″)
Y-Axis Travel: ~950 mm (≈ 37.4″)
Z-Axis Travel: ~930 mm (≈ 35.4″)
Table / Pallet
Table Size: ~810 × 900 mm (varies with configuration)
Pallet Size: Typical ~500 × 630 mm (19.7″ × 24.8″)
Maximum Table Load: ~750 kg–850 kg
Spindle & Tooling
Spindle Options: Power Cut PC100
Gebr. Heller Maschinenfabrik GmbH
Spindle Speed: 10,000 RPM
Tool Magazine Capacity: ~100-station ATC
Through-Spindle Coolant: ~1,000 PSI
