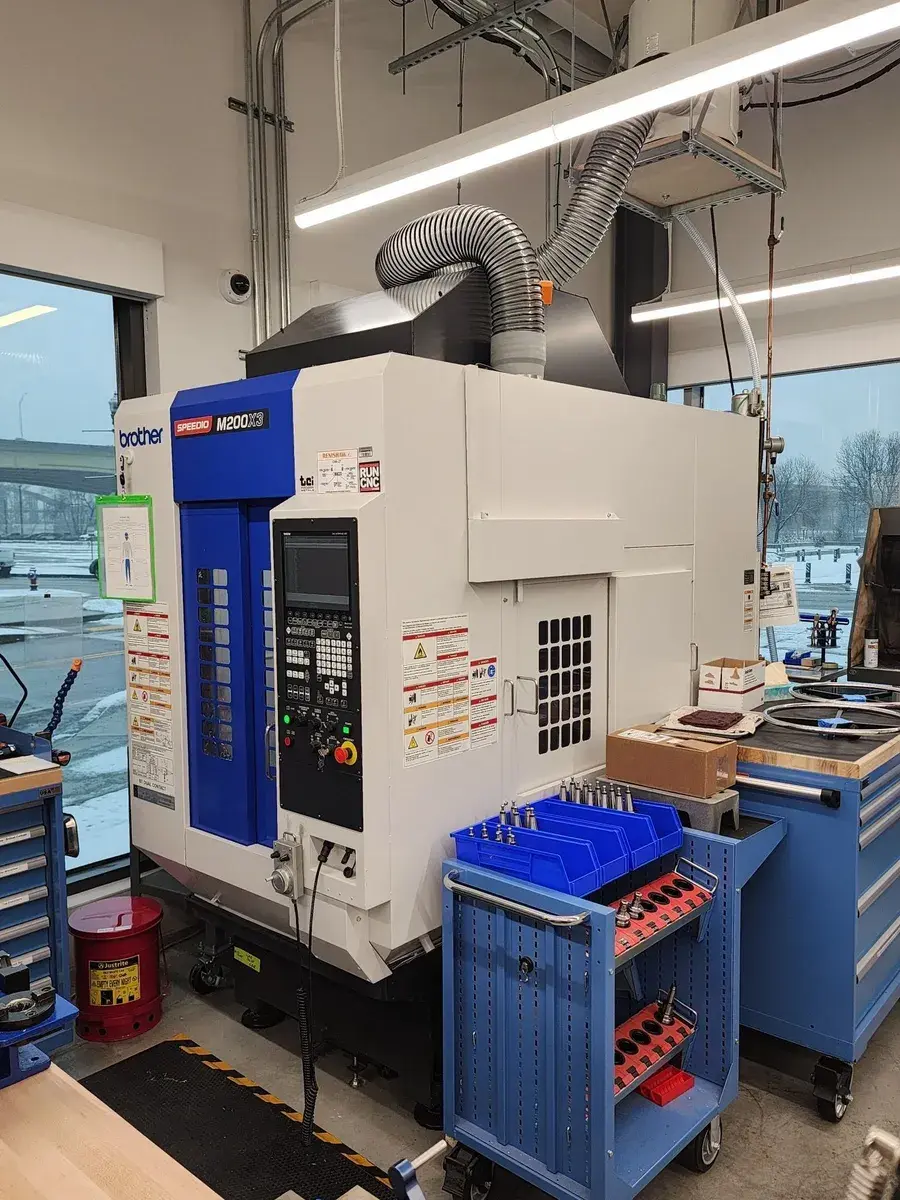

Vertical Machining Center (5-Axis). Used condition. Equipped with Renishaw probes, Amano mist collector, and a high-pressure pump. Specs: X/Y/Z: 200/440/305 mm, 22 ATC, 1600 RPM, BT-30 taper.
| X | 200 mm | 7.874" |
| Y | 440 mm | 17.323" |
| Z | 305 mm | 12.008" |
| # Axis | 5 | 5 |
| RPM | 1,600 RPM | 1,600 RPM |
| # ATC | 22 | 22 |
| Taper | BT-30 | BT-30 |
| Dimensions | 62.67 x 59.1 x 85.83 | 62.67 x 59.1 x 85.83 |
| Weight | 6800 LBS | 6800 LBS |
Manual Pulse Generator (HPG-B-100-L-CL)
Work Light Kit (1-Light) w/Brackets (WL100-SPD)
Spindle Override (6B6512001)
High Accuracy Mode BII (6B6904002)
435 PSI High Pressure Pump (SK-CTS Option)
Amano MJ-15 Mist Collector with Top Mount Installation Kit
Renishaw OMP40 Spindle Probe Kit
Renishaw 2" Probe Gage Ring
Renishaw TS27R H/W Tool Probe Kit
Renishaw BT30 Calibration Master
Renishaw Brother Inspection Plus Software Kit
Custom M200X3 Tool Probe Mount
Side Door MX3 Option M200X3 ONLY (6C9188001)
Memory EXP COO Control (6B6843001)
Amano Mist Collector Stand #H-4159
Amano Mist Collector Stand Casters #H-4162
Renishaw Square Stylus #A-2008-0384
