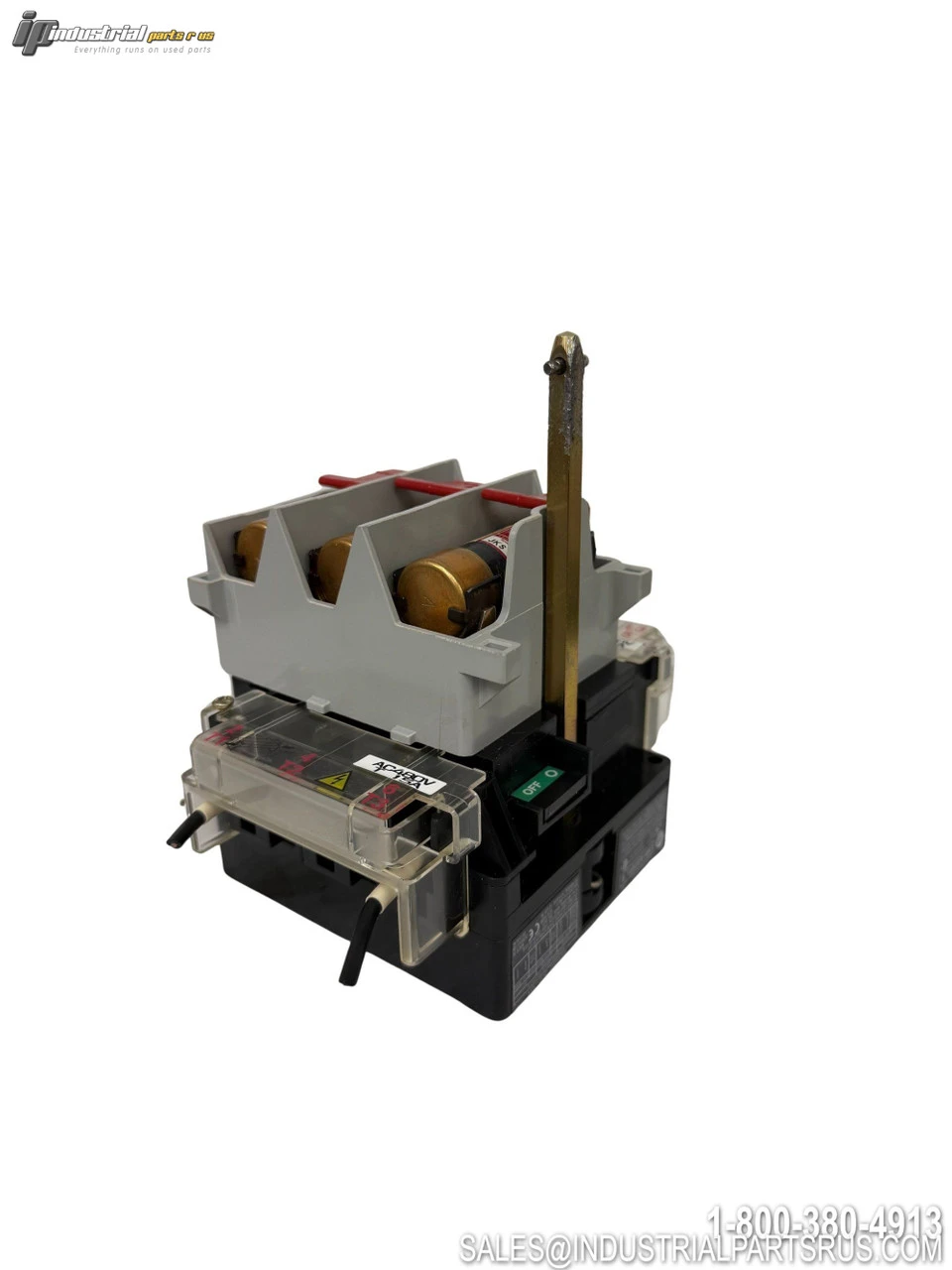

USED ALLEN-BRADLEY 194R-NJ030P3

The Allen-Bradley 194R-NJ030P3 is a fusible rotary disconnect switch designed for reliable power isolation in industrial applications. This open-style switch provides safe circuit disconnection with its touch-safe design and electrically isolated phases. It is suitable for motor disconnections and service entrance applications with NFPA 79 compliance and high short circuit current rating of 200kA.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
194R-NJ030P3
Manufacturer
Rockwell Automation
Current Rating
30 Amps
Voltage Rating
600 VAC / 250 VDC
Poles
4
Enclosure Type
Open Style
Mounting Type
DIN Rail / Flange
Fuse Type
UL Class CC & J, CSA HRCI-J
Short Circuit Rating
200 kA
Operating Temperature
-20°C to 60°C
Ambient Operating Temperature (Enclosed)
-20°C to 40°C
Operating Temperature (Open)
-2°C to 55°C
Maximum Operating Altitude
2000 meters
Weight
1.74 lbs
Handle Type
Rotary
Compliance
NFPA 79, IEC 60947-1, RoHS
Phase Configuration
Single-phase or Three-phase
Product Status
Discontinued by Manufacturer
We warranty all items for 30 days from date of purchase.

SKU: AI1611
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 10.00
(in)
Height: 8.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Allen-Bradley
Enclosure Type: Open Style
Part Number: 194R-NJ030P3
Shelf: C-12
Model: 194R-NJ030P3
MPN: 194R-NJ030P3
Type: Disconnect Switch
