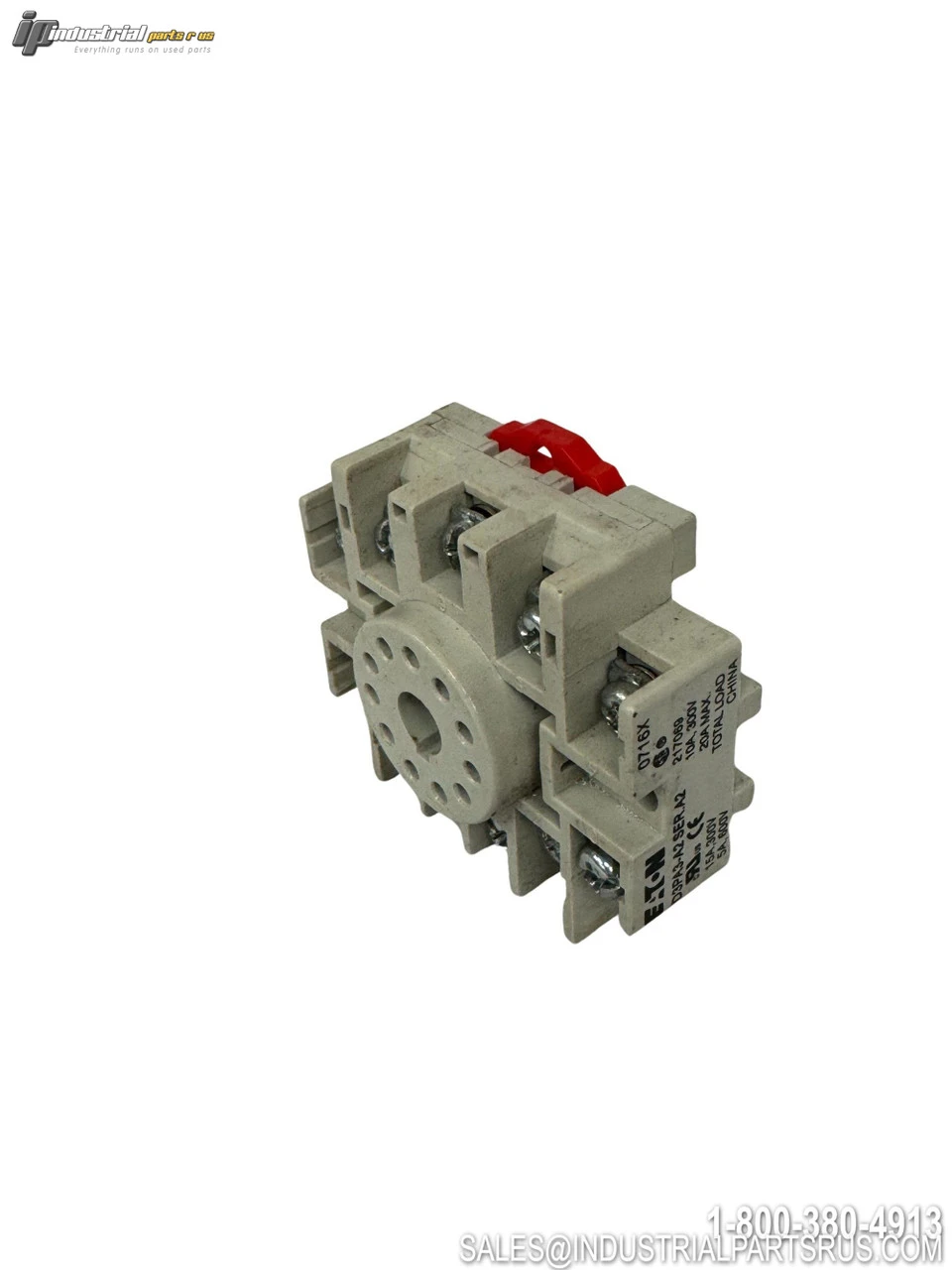

USED EATON D3PA3-A2

The Eaton D3PA3-A2 is a D3 Series relay socket designed for 11-pin, 3-pole relay applications. This socket features DIN rail and panel mounting capabilities with screw clamp terminal connections for secure and reliable installation. It is compatible with various D3 series relays including D3PR3, D3PF3, and D3PR5 relays as well as TRFP timers.
Specification
Value
Brand
Eaton
Model/Part Number
D3PA3-A2
Series
A.2
Product Type
Relay Socket
Pin Configuration
11-Pin
Pole Configuration
3-Pole
Current Rating
15A @ 300V, 5A @ 600V
Voltage Rating
300/600 VAC
Maximum Current
20A
Mounting Type
DIN Rail/Panel Mount
Terminal Type
Screw Clamp
Compatible Relays
D3PR3, D3PF3, D3PR5, TRFP Timers
Dimensions
1.6" x 0.97" x 2.12"
Operating Temperature
-28°C to +55°C
Certifications
UL/cRUus Listed, CSA/CE Certified, RoHS Compliant
We warranty all items for 30 days from date of purchase.

SKU: AI1641
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Eaton
Part Number: D3PA3-A2
Shelf: J-10
Model: D3PA3-A2
MPN: D3PA3-A2
Type: Relay Socket
