Used

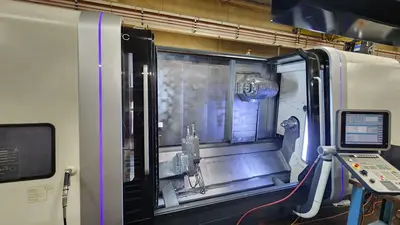

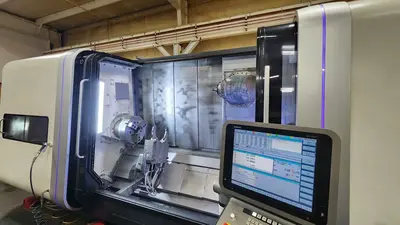

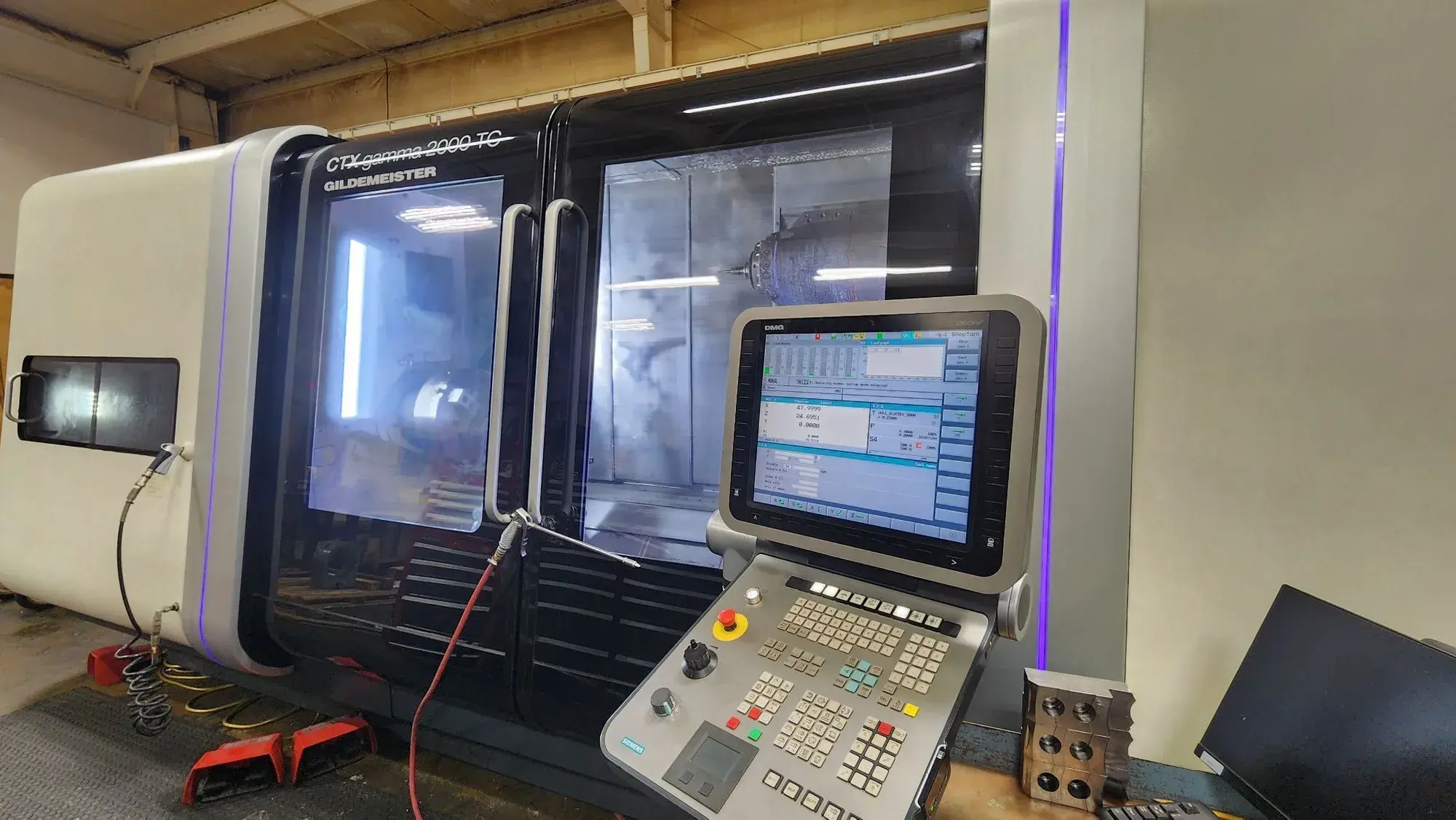

USED 2013 DMG MORI CTX GAMMA 2000TC

Ohio, United States
1,570Listings|483Followers
Overview
5-Axis or More CNC Lathes

Used 2013 DMG MORI CTX GAMMA 2000TC. This 9-axis CNC lathe features a 24.8" swing, 80.7" machining length, 18" chuck, and 4.1" bar capacity. Experience 70 hp, 4,000 RPM.

Specs
# Axis
9
9
Swing
24.8"
629.92 mm
Machining Length
80.7"
2,049.8 mm
Chuck Size
18"
457.2 mm
Bar Capacity
4.1"
104.14 mm
Power
70 hp
52.2 kW
Max RPM
4,000 RPM
4,000 RPM
Control
CNC (Siemens 840D)
CNC (Siemens 840D)
Weight
48,000 LBS
48,000 LBS
Equipped With

Programmable Steady Rest

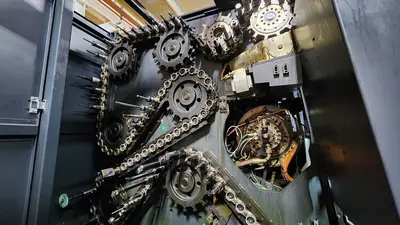

120 Position ATC
HSK 63 Milling Spindle
