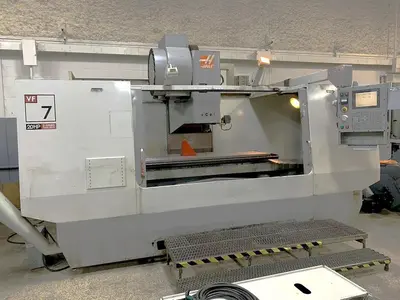

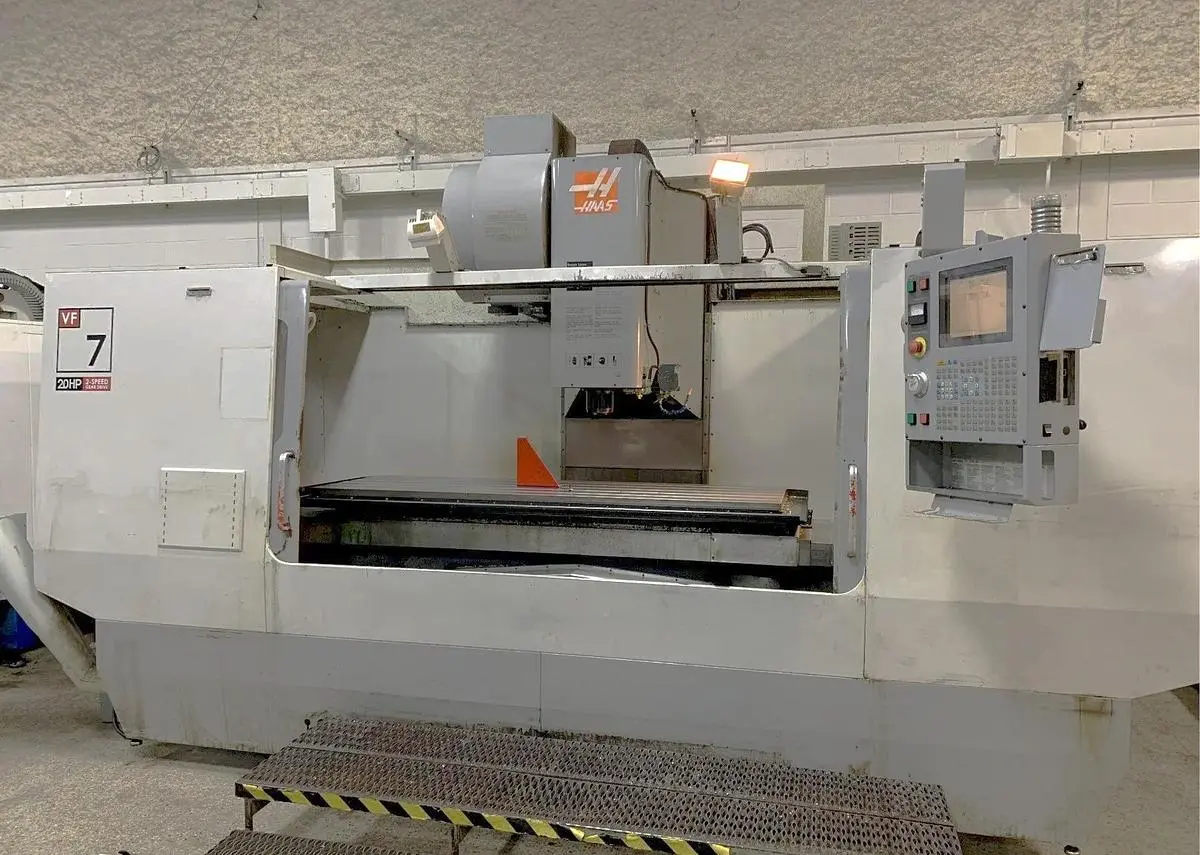

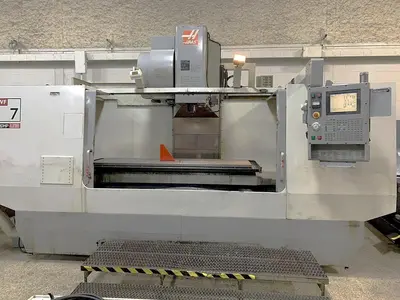

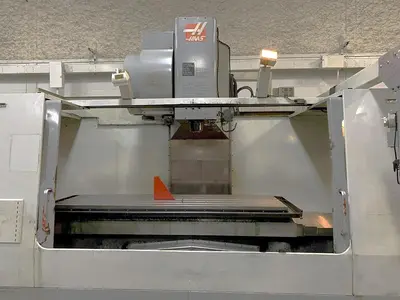

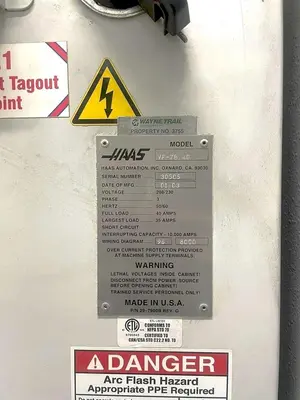

USED 2003 HAAS VF-7B/40

24 Station Side Mounted Tool Changer

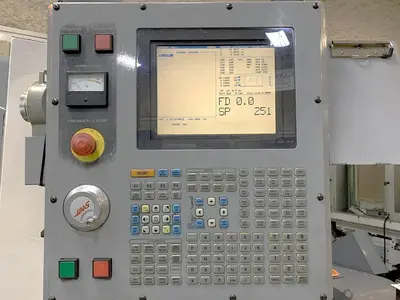

Remote Jog Handle
Auger Style Chip Conveyor
High Speed Machining
Visual Quick Code Programming
Rigid Tapping
Programmable Coolant Nozzle
High Intensity Lighting
8 MB Programming Memory
2 Speed Gearbox
3.5" Floppy Disk Drive Interface
RS 232 Port Interface
Coolant System with Tank & Pump
Brushless Servos
Wired 208-230V Electrics

**Machine Motion Hours 21,084**
**Machine Spindle Hours 19,323**

The 2006 Haas VF-7/40 is a robust CNC vertical machining center, suitable for complex and high precision tasks. It features a large worktable measuring 84" x 28", supporting a maximum load of 4,000 lbs, catering to substantial projects. Its travel dimensions include an X-axis of 84", a Y-axis of 32", and a Z-axis of 30", ensuring ample space for diverse operations.

Equipped with a CAT 40 spindle taper, the VF-7/40 operates at a maximum speed of 7,500 RPM and is powered by a 20 HP spindle motor, enabling efficient machining and enhanced performance. The machine is equipped with a 24+1 station side-mounted tool changer for quick and seamless transitions between tools. Additionally, it is prepared for Thru-Spindle Coolant (TSC) and offers high-speed machining capabilities, enhancing productivity.

Rapid traverse rates of 400 ipm for the X-axis and 600 ipm for both Y and Z axes minimize cycle times. With its comprehensive 4th axis drive capability, the Haas VF-7/40 is designed to handle demanding tasks with precision. The dimensions of this machine are 214"x102"x129" and it weighs approximately 25,600 lbs, indicating a substantial, durable build suitable for industrial use.

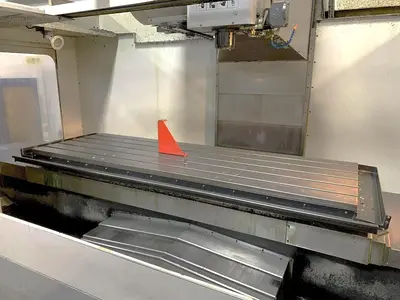

Table Size: 84" x 28"
Maximum Table Load: 4,000 lbs
X-Axis Travel: 84"
Y-Axis Travel: 32"
Z-Axis Travel: 30"
Spindle Taper: CAT 40
Spindle Speed: 7,500 RPM
Spindle Motor: 20 HP - 2 Speed Gearbox
Tool Magazine Capacity: 24+1 Station Side Mounted Tool Changer
Distance Spindle Nose to Table Top: 4" - 34"
Rapid Traverse Rates (X, Y, Z): 400 ipm / 600 ipm / 600 ipm
Machine Dimensions LxWxH: 214"x102"x129"
Machine Weight: 25,600 lbs
