OKUMA MC-60VAE Vertical Machining Center, 1998 model, offers a work area with X/Y/Z axes of 59.0/24.8/22.4. Equipped with 30.0 HP, 5000 RPM, and CAT-50 taper, it's ideal for your precision machining needs. Table size: 25.0 x 60.0, 20 ATC.
| X | 150 cm | 59.055" |
| Y | 63 cm | 24.803" |
| Z | 61 cm | 24.016" |
| Power | 30 hp | 22.4 kW |
| RPM | 5,000 RPM | 5,000 RPM |
| # ATC | 20 | 20 |
| Taper | CAT-50 | CAT-50 |
| Table-W | 25" | 635 mm |
| Table-L | 60" | 1,524 mm |
| Control | CNC (Okuma OSP7000M) | CNC (Okuma OSP7000M) |
| Dimensions | LxWxH: 4570x4530x3265 mm | LxWxH: 4570x4530x3265 mm |
| Weight | 11000 kg | 11000 kg |

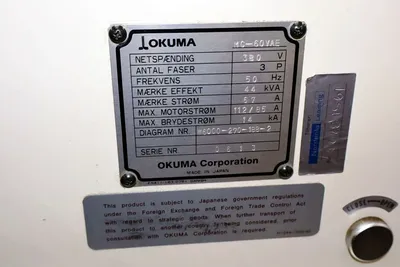

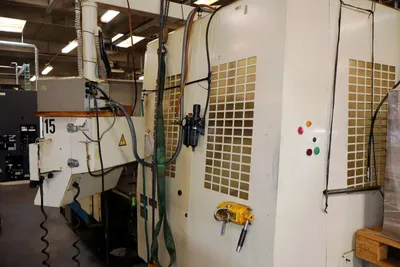

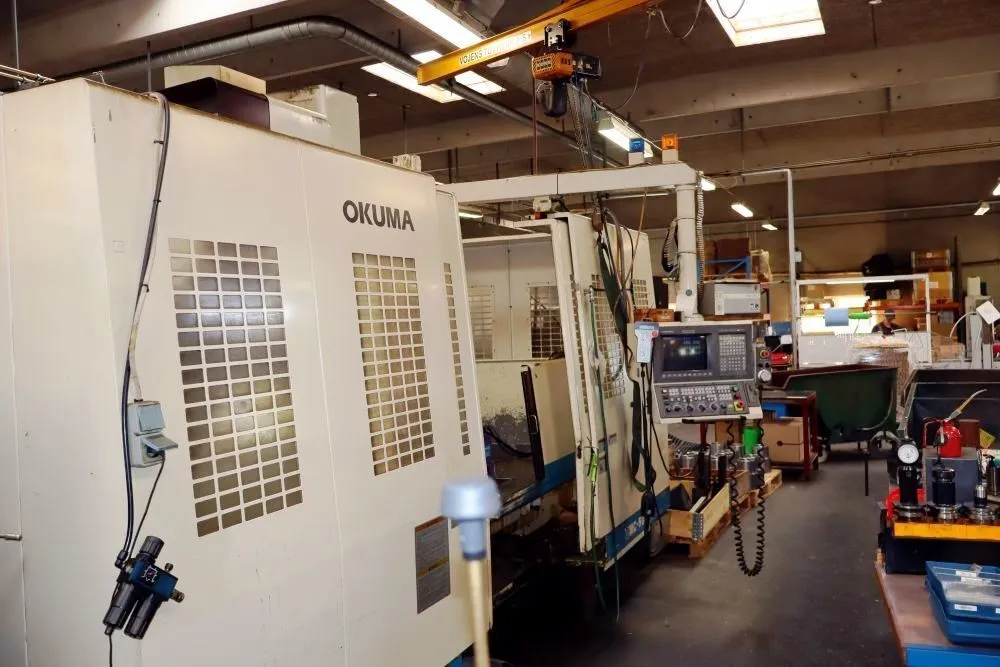

Okuma type MC-60VAE. Vertical Machining Center. Serial number: 0613. Year 1998.11

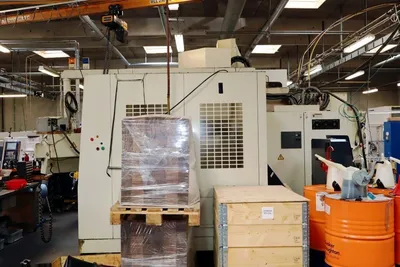

The machine is under power. Selling by instruction of the client due to transfer of production to a country outside Denmark. The machine is located in Skrydstrup.
Weight: 11 tons
Power: 59180 hours (April 12, 2026)
Operation: 16510 hours (April 12, 2026)
Cutting: 11525 hours (April 12, 2026)
Travel:
X-axis: 1500 mm
Y-axis: 630 mm
Z-axis: 610
Load max. Kg: 1500

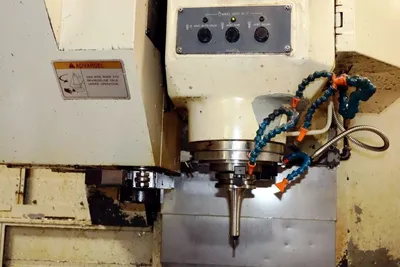

Spindle speed: 10-5000 rpm.

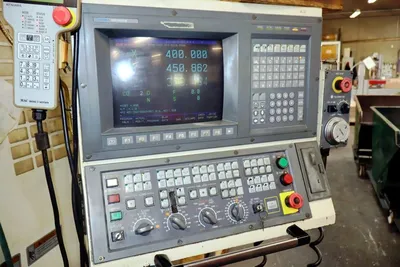

Control: Okuma OSP7000M
Tool magazine, ATC: 20 positions. Tools in the machine included.

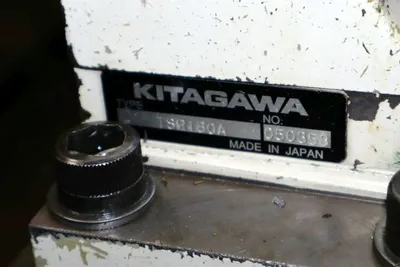

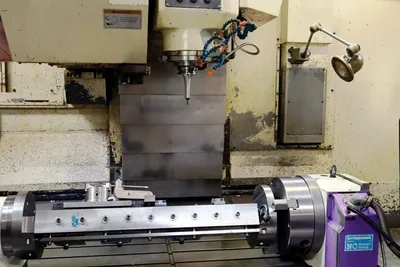

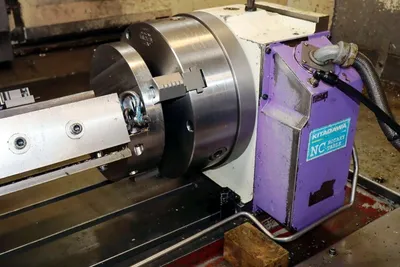

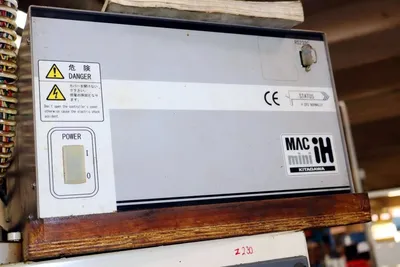

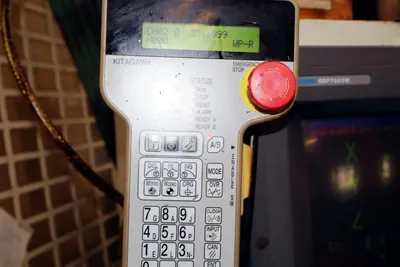

3-axis with Kitagawa NC Rotary Table / turntable, type TSR180A. SN: 050353, hand terminal and Mac mini IH.
Taper: BT50, 90 degrees.

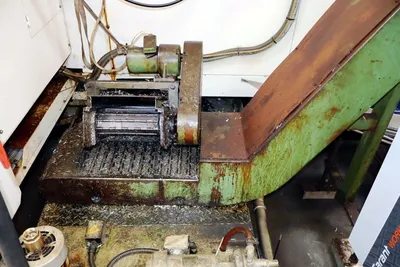

Oil skimmer and chip conveyor included.

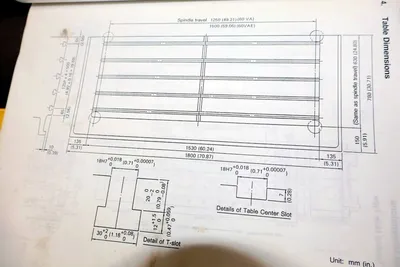

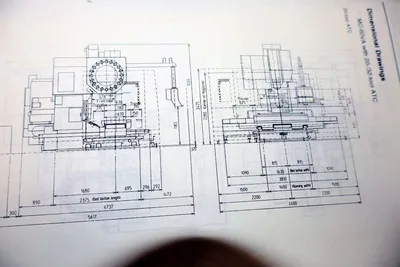

Machine dimensions – please see image documentation. LxWxH: 4570x4530x3265 mm.

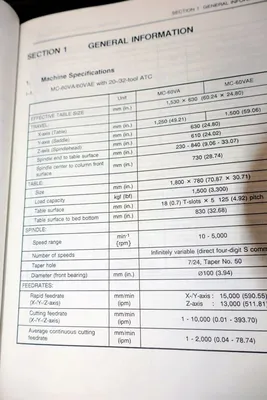

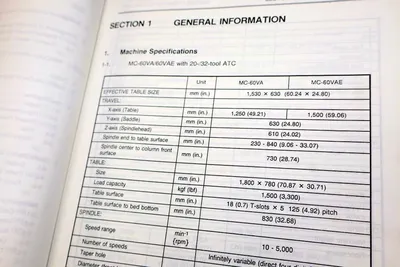

The machine is fully functional. Manuals and original tolerance charts are included.
Backup of parameters included.
The seller has not placed the machine into transport position.
There are no transport brackets for the machine.
