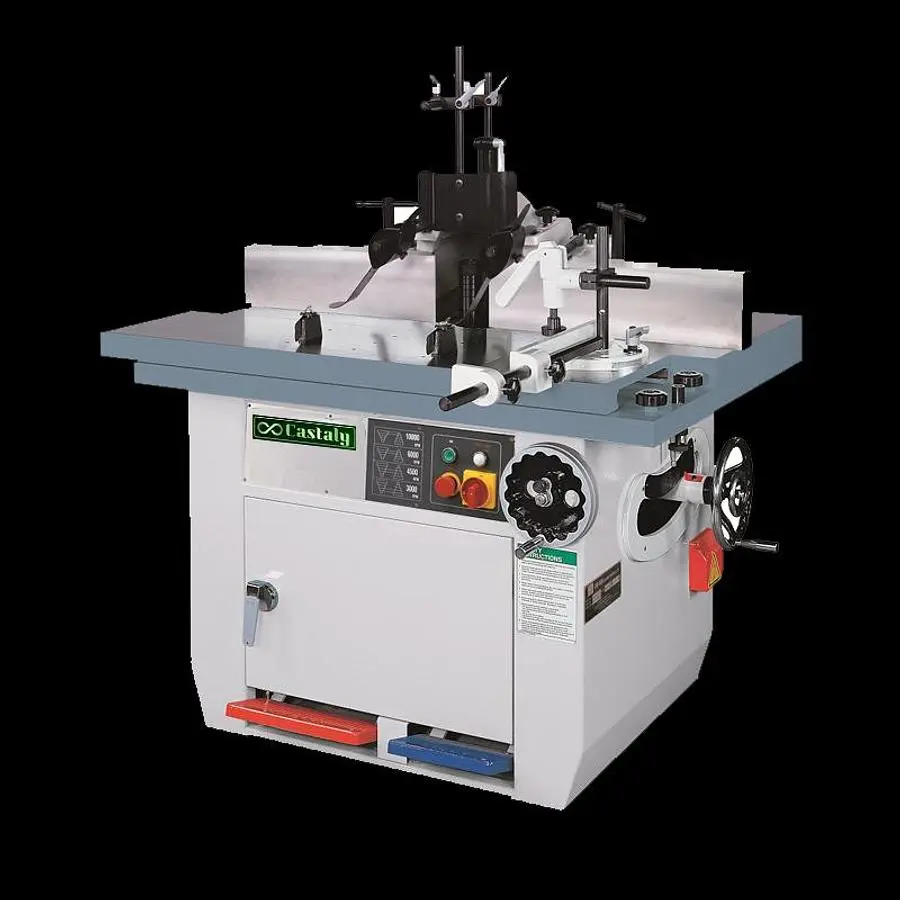

NEW CASTALY SP-750S

Features:

Designed for heavy industrial work.

Industrial full power motor for maximum cutting capacity.

Precision ground large cast iron table.

Three spindle speeds for versatile cutting.

Industrial full power motor for heavy cutting capacity.

Sealed long-life ball bearing.

Heavy sheet metal cabinet base for durability usage.

Magnetic control for overload protection.

Quick-change spindles.

Individual two side micro adjustable fence.

SPECIFICATION SP-750S

Table Size 48" x 36-1/2"

Fence Sizes 23-1/2" x 5-3/4"

Height of Working Table 35-1/2"

Spindle Dimensions

Diameter 1", 1 1/4"

Length under Nut 4", 5-1/2"

Stroke 7"

Table Insert 6-1/4" ~ 13"

Speed (RPM) 3000/ 4500/ 7500/ 10000

Motor 7-1/2 HP, 3 PH (10 HP Opt.)

Spindle Tilt -5 ~ +45 Degree

Sliding Table 13" x 48"

Sliding Table Stroke 46"

Locking of Spindle by Foot Pedal

Braking of Spindle by Foot Pedal

Machine Sizes 53" x 42" x 51"

N.W. 1480 LBS
