Matsuura MX-330 – 2016

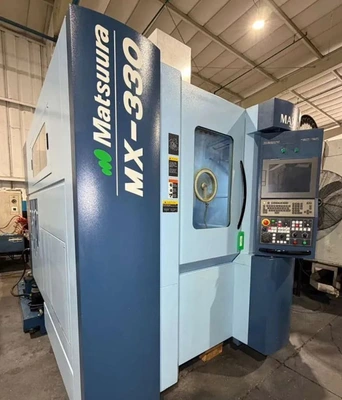

2016 MATSUURA MX330 5-AXIS CNC VERTICAL MACHINING CENTER

X 17.13″

Y 18.31″

Z 22.05″

# AXIS 5

POWER 25 hp

RPM 15,000 RPM

# ATC 60

TAPER CAT-40

CONTROL CNC (Matsuura G-Tech 31i (Fanuc) CNC Control)

DIMENSIONS 205″ x 183″ x 126″ High Approx.

WEIGHT 13,860 lbs Approx.
Travels:

X Axis: 17.13″

Y Axis: 18.31″

Z Axis: 22.05″

A Axis: -125° to +10°

C Axis: 360° Continuous
Trunnion Table:

Table Diameter: 9.84″

Max Workpiece Diameter: 12.99″

Max Workpiece Height: 12.59″

Max Weight on Table: 176 lbs
Spindle:

Taper Size: CAT-40

Spindle Speed: 15,000 RPM

Spindle Power: 25 HP
Feed Rates:

Rapid Traverse Rate X, Y & Z Axis: 1,574 IPM

Cutting Feed Rate X, Y & Z Axis: 1,574 IPM

Rapid Traverse Rate A / C: 17 / 33 RPM
Tool Changer:

Capacity: 60 Tools

Taper: CAT-40

Max Tool Diameter: 3.14″

Max Tool Diameter (Without Adjacent Tools): 5.90″

Max Tool Length: 11.81″

Max Tool Weight: 22 lbs
General:

Power Requirement: AC 220V / 3-Phase / 50 / 60 Hz / 30 KVA

Dimensions: 205″ x 183″ x 126″ High Approx.

Weight: 13,860 lbs Approx.

Matsuura G-Tech 31i (Fanuc) CNC Control

5-Axis Simultaneous Machining

Rigid Tapping

Spindle Orientation

Coolant System

9.84″ Diameter Rotary Table

15,000 RPM High Speed Spindle

60 Station Automatic Tool Changer

Renishaw Receiver Installed

Renishaw Tool Probe

Through Spindle Coolant

Cool Jet Coolant Unit

LNS Chip Conveyor
