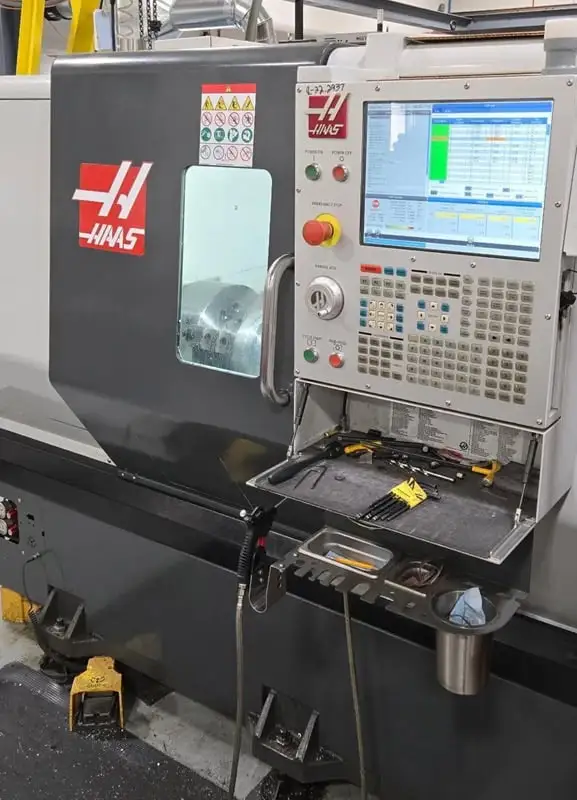

Haas ST35 CNC Turning Center
Chuck Size 12.0 in
Max Part Swing 21.0 in
Max Cutting Length (varies with workholding) 32.5 in
Bar Capacity 4.00 in
Between Centers (max) 32.5
Travels S.A.E
X Axis 9.40 in
Z Axis 32.50 in
Feedrates S.A.E
Rapids on X 945 ipm
Rapids on Z 945 ipm
Axis Motors S.A.E
Spindle Nose A2-8
Max Rating 40.0 hp
Max Speed 3200 rpm
Max Torque 425.0 ft-lbf @ 325 rpm
Spindle Bore ø 4.62 in
WEIGHT 14,300 Lbs
Haas CNC Control
Programmable Tailstock
Chip Conveyor
Tool Presetter
12″ chuck
