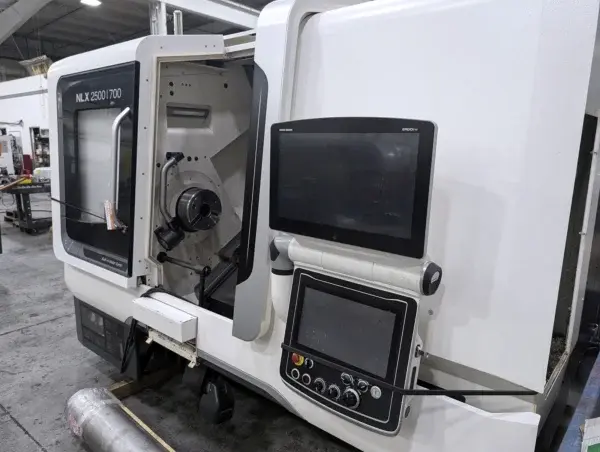

DMG Mori NLX-2500SY/700 – 2022

2022 DMG Mori NLX2500SY/700
machine specifications

Swing over Bed: 36.2″

Swing over cross slide: 29.2″

Max Turning Diameter: 14.4″

Max Turning Length: 27.7″

Bar Capacity: 3.15″

Main Spindle Speed: 4,000 RPM

Main Spindle Nose: A2-8

Main Spindle Bore: 3.58″

Sub Spindle Speed: 5,000 RPM

Sub Spindle Nose: A2-6

Sub Spindle Bore: 2.87″

Axes Travel (X / Z / Y): 10.2″ / 31.3″ / ±2.0″

Rapid Traverse Rate: 1,181 IPM (X/Z)

Turret: 12-Station BMT

Rotary Tool Speed: 10,000 RPM

Rotary Tool Torque: 29.5 / 22.1 / 10.3 ft-lbs

Chuck Size (Main): 12″ Kitagawa

Chuck Size (Sub): 8″ Kitagawa

Coolant Tank Capacity: 96.6 Gallons`

Machine Dimensions (L x W): 131.8″ x 82.9″

Machine Weight: Approx. 13,500 lbs
machine equipped with

Mitsubishi M730UM with CELOS (MAPPS V)v

Extended Transferable Warranty – Expires in 2027

Sub Spindle (5000 RPM

2.87″ bore)

Y-Axis Capability (±2.0″)

BMT Turret with Live Tooling

Rotary Tool Spindle (10000 RPM)

12″ Hydraulic Chuck (Main)

8″ Kitagawa Hydraulic Chuck (Sub)

High-Pressure Coolant System (116 PSI)

Hinge-Type Chip Conveyor (Right Discharge). Coolant Gun

Built-In Parts Catcher / Workpiece Unloader

Workpiece Conveyor System

Bar Feeder Interface

Tool Presetters

MPG Handwheel

No Tooling included
