USED 1999 HWACHEON HL720

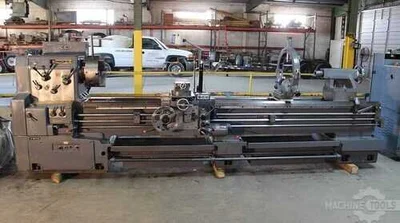

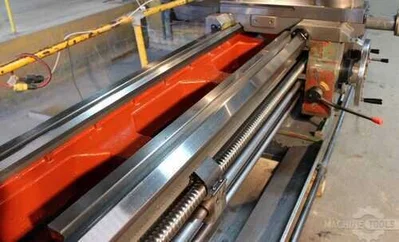

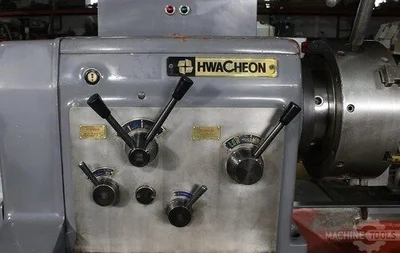

Hwacheon HL720 28" x 120" Precision Engine Lathe w/ Sony 2-Axis DRO

General Info

Stock #: 143260003
Location: Ohio
Brand: Hwacheon
Model: HL720
Year: 1999
Approx. Shipping Weight: 10,250 LBS.
Approx. Shipping Dimensions: 187"L x 61"W x 58"H
Skidding Fee: Skidding Unavailable

Specifications

Swing Over Bed: 28.34"
Swing Over Cross Slide: 18.50"
Distance Between Centers: 118.11"
Spindle Nose: D1-8
Spindle Bore: 3.03"
Number of Spindle Speeds: 12
Range of Spindle Speeds: 27 RPM - 1,205 RPM
Number of Feed Changes: 40
Longitudinal Feed (Z-Axis): .0015" - .0216" / rev
Cross Feed (X-Axis): .0016" - .0228" / rev
Cross Slide Travel: 15.35"
Compound Rest Travel: 6.69"

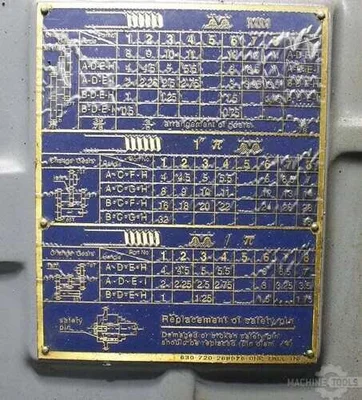

Inch Threads: 56-2
Metric Threads: .5 - 14
D.P. Threads: 4 - 56
Module Threads: 1 - 7

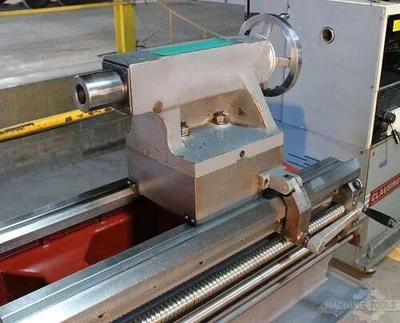

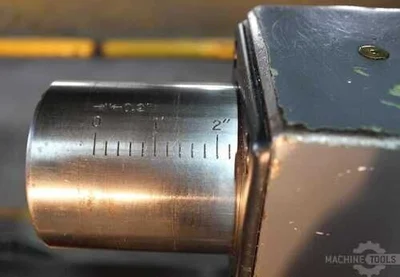

Tail Stock Quill Travel: 5.90"
Tail Stock Quill Taper: No. 5
Spindle Motor HP: 14.74

Equipped With

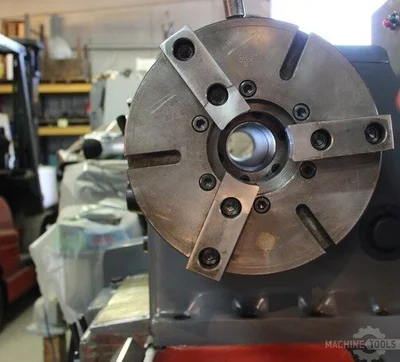

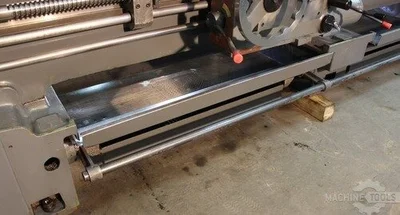

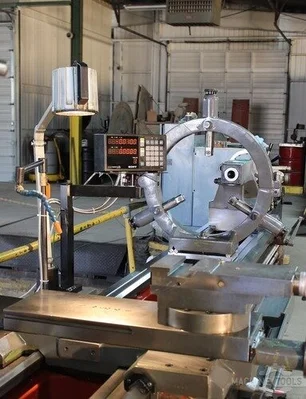

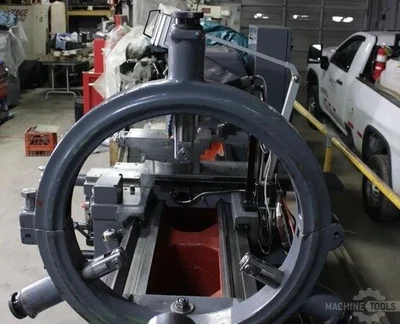

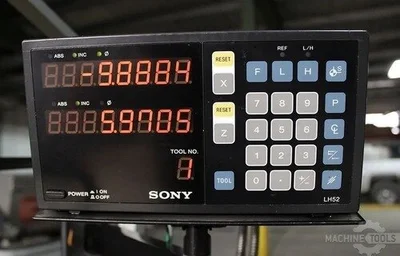

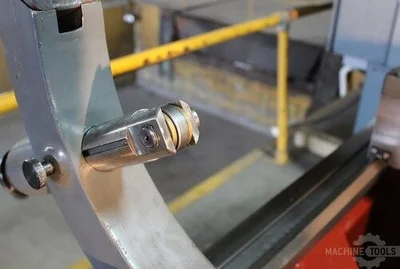

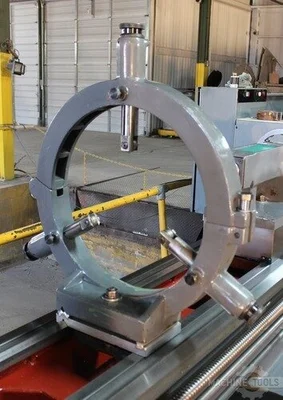

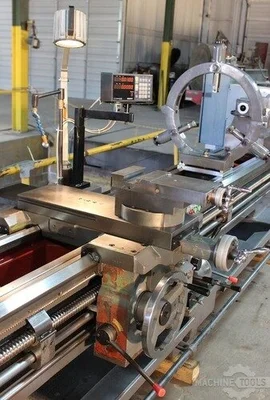

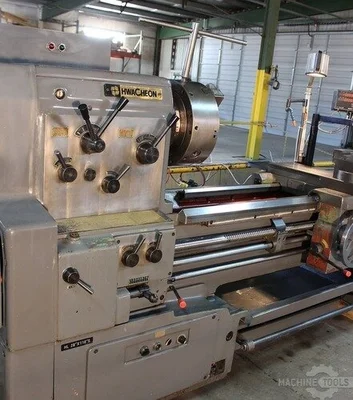

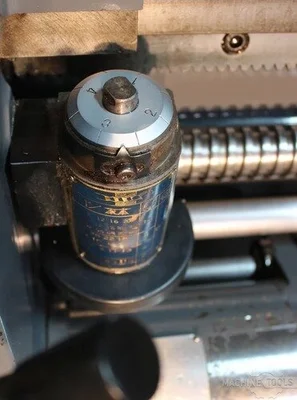

Sony 2-Axis Digital Readout System, Halogen Work Lamp, 15" Heavy Duty Buck 3-Jaw Chuck, Coolant System, Two Removable Chip Pans, Two Removable Sub-Coolant Pans, Thread Dial, Rapid Traverse, Steady Rest (Over Sized : 11"~17"), Disc Brake w/ Dual Length Foot Brake Lever
