USED 2014 GANESH ASL-15L

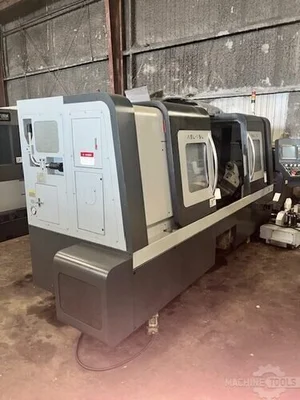

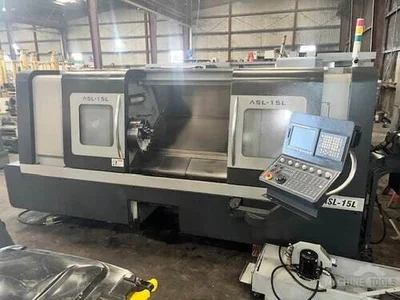

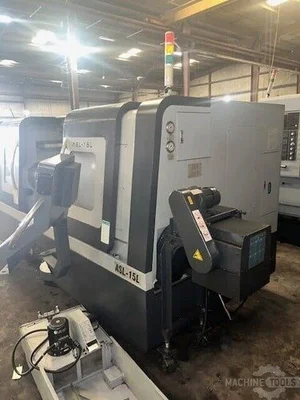

Ganesh ASL-15L CNC Lathe, Long Bed (2014)

General Info

Stock #: 143260005
Location: Houston, TX
Brand: Ganesh
Model: ASL-15L
Year: 2014
Approx. Shipping Weight: 20'L x 6'W x 6'H
Approx. Shipping Dimensions: 13,500 LBS.
Skidding Fee: Skidding Unavailable

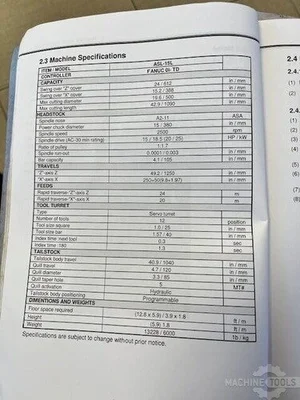

Specifications

Swing Over "Z" Cover: 24"
Swing Over "X" Cover: 15.2"
Maximum Cutting Diameter: 19.6"
Maximum Cutting Length: 42.9"
Spindle Nose: A2-11
Power Chuck Diameter: 15"
Maximum Spindle Speed: 2,500 RPM
Spindle HP (Continuous): 15 HP
Spindle HP (Peak): 20 HP
Bar Capacity: 4.1"
Tailstock Body Travel: 40.9"
Tailstock Quill Travel: 4.7"
Tailstock Quill Taper: No. 5 MT

Equipped With

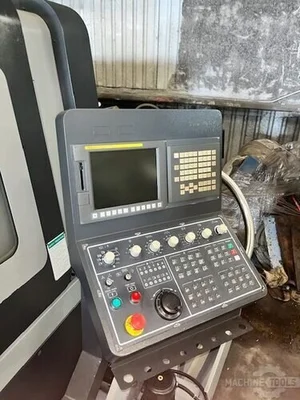

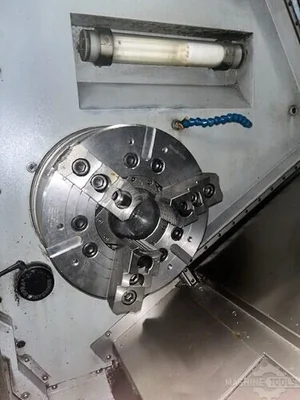

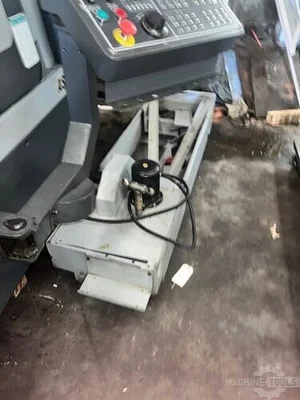

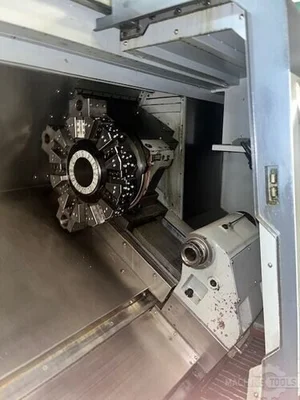

Fanuc 0i-TD Control, 15" 3-Jaw Powered Chuck, 12 Position BOT Turret, Removable Tool Setter, Coolant Tank, Chip Conveyor, Programmable Tailstock w/ Hydraulic Quill
