USED 2020 GANESH ASL-15LX

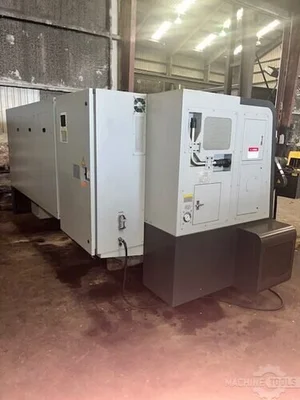

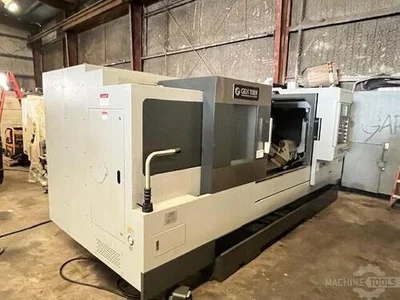

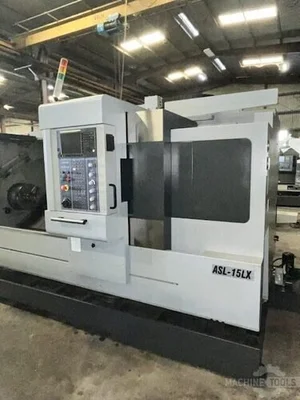

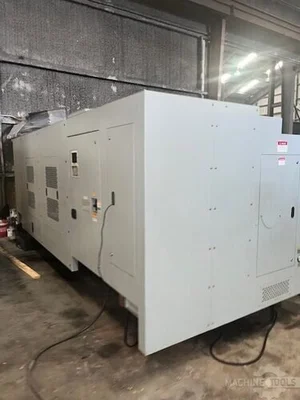

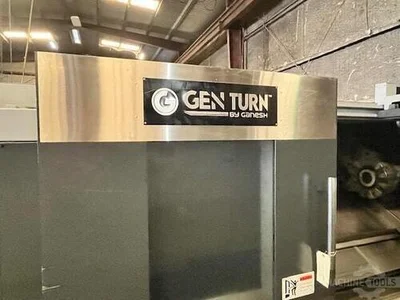

Ganesh ASL-15LX CNC Lathe, Long Bed (2020)

General Info

Stock #: 143260006
Location: Houston, TX
Brand: Ganesh
Model: ASL-15LX
Year: 2020
Approx. Shipping Weight: 15,000 LBS.
Approx. Shipping Dimensions: 24'L x 6'W x 6'H
Skidding Fee: Skidding Unavailable

Specifications

Swing Over "Z" Cover: 24"
Swing Over "X" Cover: 15.2"
Maximum Cutting Diameter: 19.6"
Maximum Cutting Length: 66"
Spindle Nose: A2-11
Powered Chuck Diameter: 15"
Maximum Spindle Speed: 2,500 RPM
Spindle Motor HP (Continuous): 15HP
Spindle Motor HP (Peak): 20HP
Bar Capacity: 4.1"
Tailstock Quill Travel: 4.7"
Tailstock Quill Taper: No. 5 MT

Equipped With

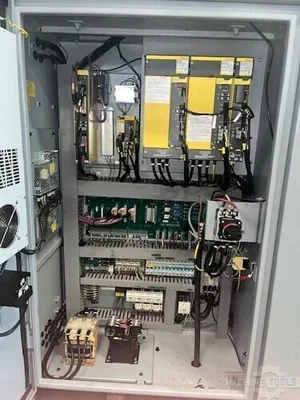

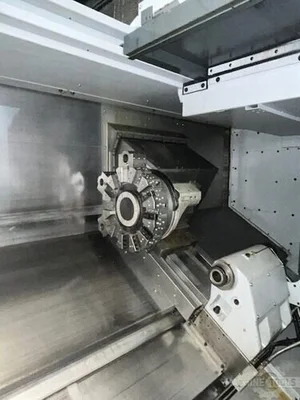

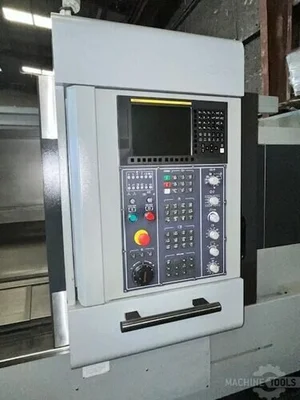

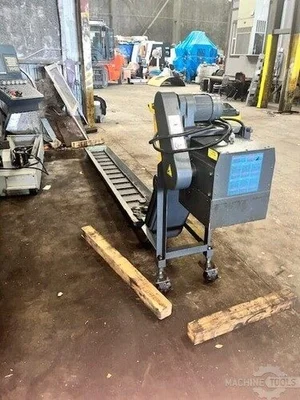

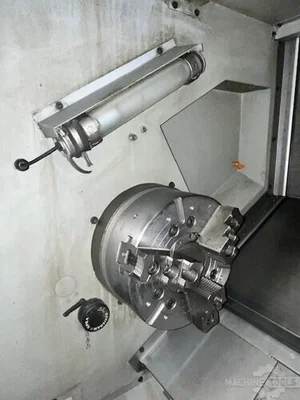

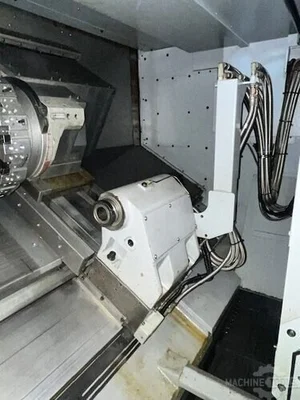

Fanuc 0i-TD Control, 15" 3-Jaw Powered Chuck, 12 Position BOT Turret, Removable Tool Setter, Coolant Tank, Chip Conveyor, Programmable Tailstock w/ Hydraulic Quill
