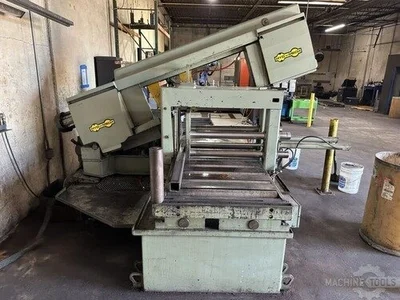

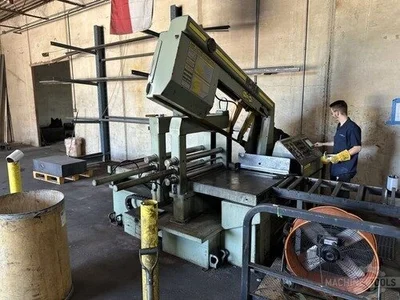

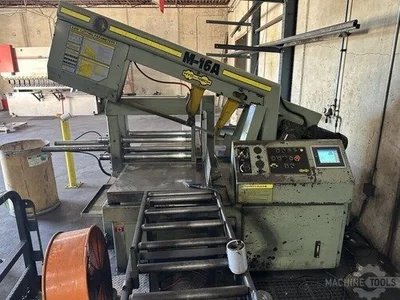

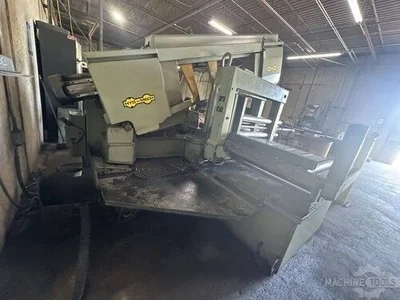

Hyd-Mech M-16A 16" x 25" Automatic Horizontal Pivot Style Bandsaw
| Rect-Cap (H) | 16" | 406.4 mm |
| Rect-Cap (W) | 25" | 635 mm |
| Rounds-Cap | 16" | 406.4 mm |
| Power | 7.5 hp | 5.6 kW |
| Blade Width | 1.25" | 31.75 mm |
| Blade Length | 222" | 5,638.8 mm |
General Info
Stock #: 171260020
Location: TX
Brand: Hyd-Mech
Model: M-16A
Approx. Shipping Weight: 7,500 LBS
Approx. Shipping Dimensions: 10'8"L x 7'9"W x 7'8"H
Loading Fee: Rigging Required
Specifications
Rectangular Capacity (90°): 16" x 25"
Round Capacity (90°): 16"
Rectangular Capacity (45°): 15" x 16"
Round Capacity (45°/30°): 16" / 11"
Blade Size: 1-1/4" x 18'6"
Blade Drive: 7.5 HP (VFD)
Blade Speed: 50 - 350 SFM
Band Wheels: 19" DIA
Shuttle Stroke: 0 - 33" (Multi-Indexing Standard)
Workload Capacity: 8,000 LBS
Down Feed: Hydraulic Positive Feed
Power Required: 208V / 3 Phase
Equipped With
VFD True Direct Blade Drive, Powered-Driven Angle Adjustment, Full Capcity Hydraulic Overhead Bundling, Hydraulic Guide Arm, Coolant System
Additional Info
Machine is under power and available to demo.
