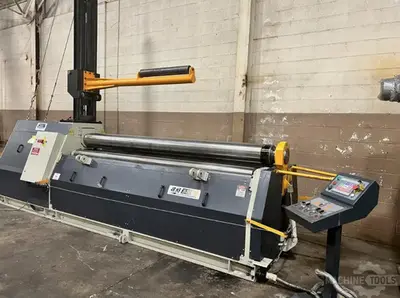

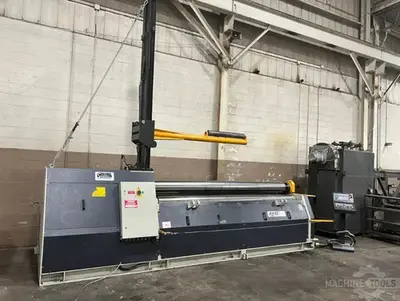

USED 2019 CARELL 4R

⅜” X 10’ Plate Roll with Portable NC Color Touchscreen Control, Hydraulic Drop End, Bottom Pinch Roll Hydraulically Positioned, Dual Speed and Mechanical Overhead Roll Support.GENERAL SPECIFICATIONS Capacity @ 36,000 PSIRolling OD 5X Top Roll:                    ⅜” X 10’Rolling OD 1.5X Top Roll:                    5/16” X 10’Prebending OD 5X Top Roll:                5/16” X 10’Prebending OD 1.5X Top Roll:                ¼” X 10’Capacity @ 50,000 PSIRolling OD 5X Top Roll:                    ¼” X 10’Rolling OD 1.5X Top Roll:                    7/32” X 10’Prebending OD 5X Top Roll:                7/32” X 10’Prebending OD 1.5X Top Roll:                3/16” X 10’Top Roll Diameter:                        10.2”Lateral Roll Diameter:                    7.87”(2) Rotation Speeds:                    5 FPM / 18 FPMTotal Power:                            10 HPVoltage:                            440 V 3 PhDimensions:                            197” X 63” X 63”Weight:                            16,450 LbsINCLUDES: Portable NC Color Touchscreen Control, Hydraulic Drop End, Bottom Pinch Roll Hydraulically Positioned, Dual Speed and Mechanical Overhead Roll Support.
