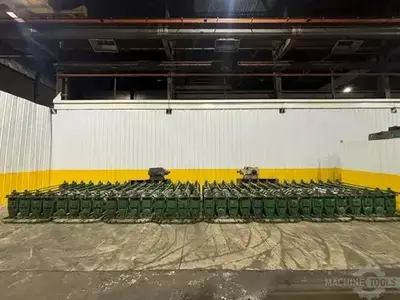

USED HI-RIB 36" 7.2 TYPE Roll Formers

Panel Rafted Rollformer Line with Uncoiler and Flying Cutoff Shear

Request a Quote
Add to Cart
Uncoiler Coil Capacity: 20,000 Lbs
Max Coil Width: 48"
Max Coil O.D: 60"
Coil I.D: 14" - 20"
Uncoiler Drive Motor: 3 HP
Autoquip Coil Car Capacity: 18,000 Lbs

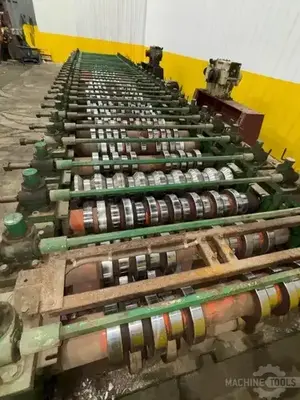

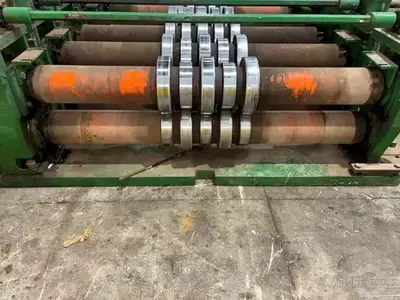

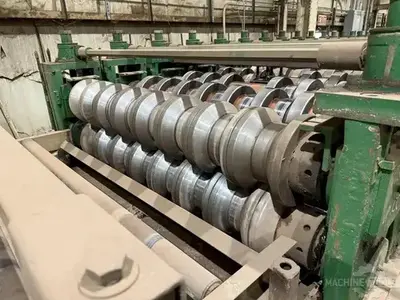

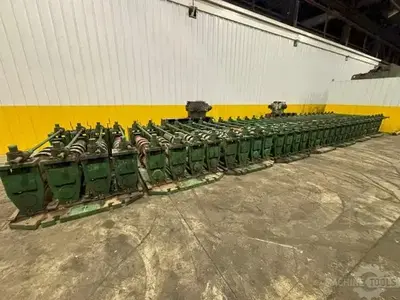

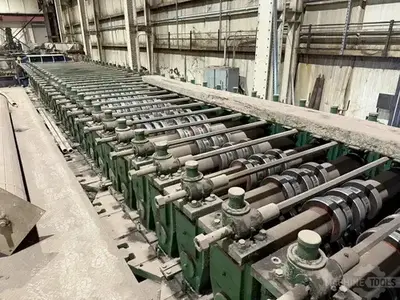

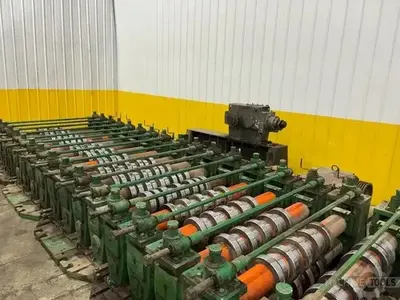

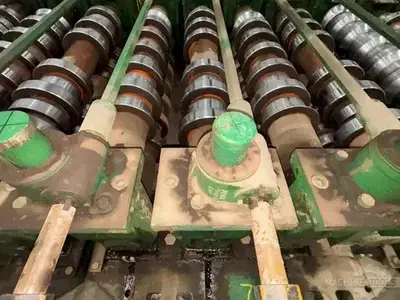

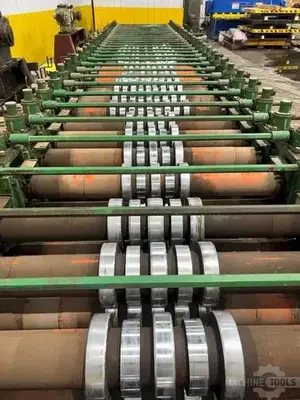

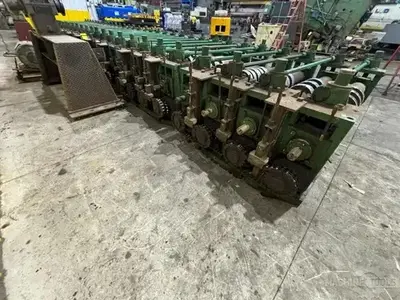

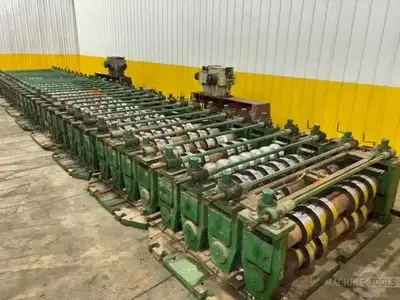

Rollformer: Hi-Rib Panel
Panel Thickness Capacity: 18 to 24 Gauge
Number of Passes: 32
Number of Rafts: 8 (4 Passes per Raft)
Roll Spacing: 44"
Horizontal Centers: 15"
Vertical Adjustment: 7" - 10"
Base to Bottom of Spindle: 8"
Direction: Right to Left

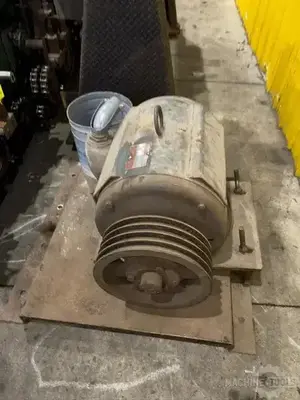

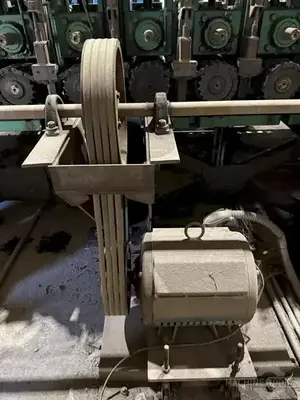

Rollformer Motor: 60 HP

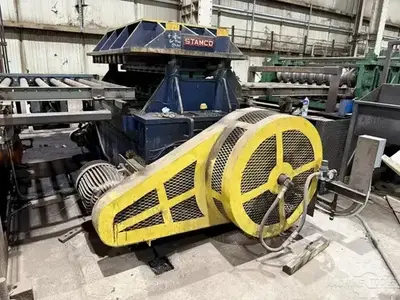

Stamco Press Coil Capacity: 30 thru 12 Gauge
Stamco Motor: 15 HP

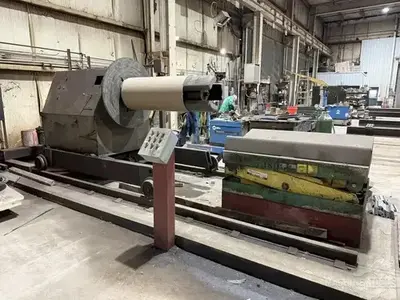

American Uncoiler Model 10: Autoquip Coil Car Model 24K18
Durant Controller Series 5884: Fabricated Steel Base

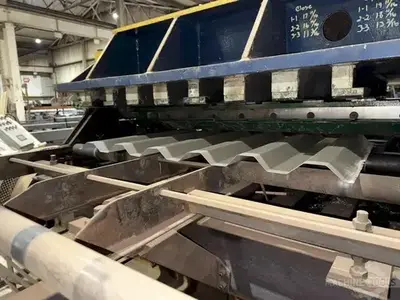

Flying Cut Off Die: Operator Control Station for Uncoiler

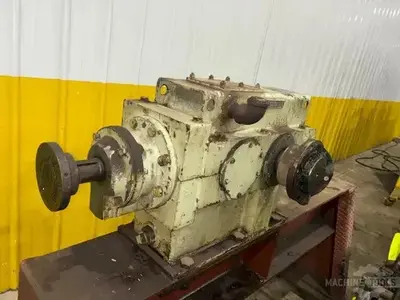

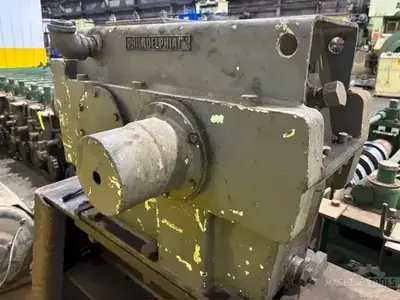

Philadelphia Gear Reducers: Powered Traversing on Uncoiler

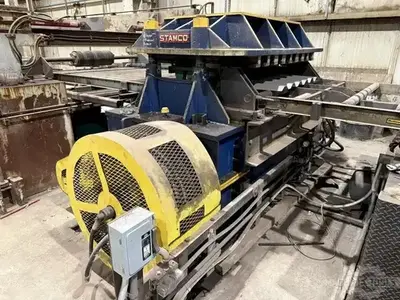

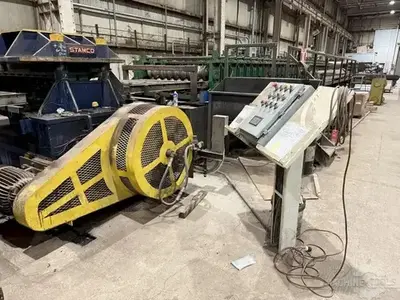

Rotary Dial Counter: Stamco Cut Off Press Model 3607

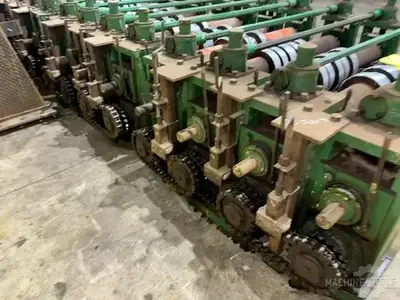

Chain Driven: Air Clutch
