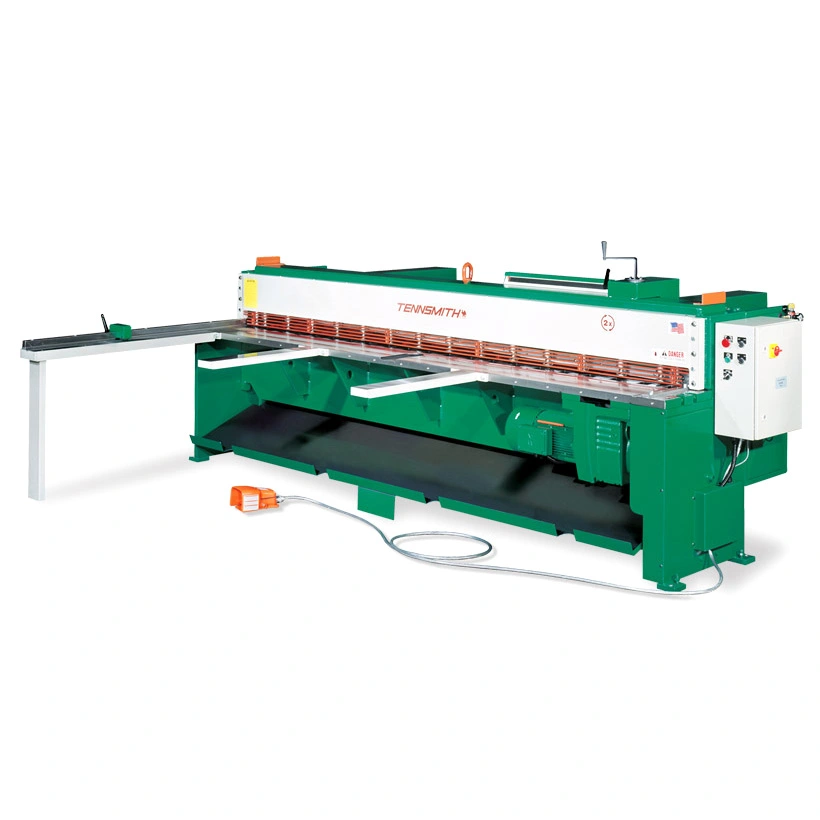

NEW TENNSMITH LM1014

The LM Series shears are standard with four-edge, high carbon, high chrome top and bottom blades, independent, self-leveling holddown feet with neoprene inserts, single, continuous and job stroke cycles, motor reverse switch, precision-machined table with hand well, dual inch/metric inlaid bed scales and non-metallic gibs.
The LM1014 will handle 14-gauge mild steel up to 121 inches. The LM1214 is rated for 14-gauge mild steel with 145-inch cutting length. To enhance productivity, optional equipment available for the machines include: four or ten-foot squaring arm, front support arms, light beam and protractor attachment. On models LM1014 and LM1214, the air operated sheet support is available in two styles: System R drops the supported material to the rear of the machine; System F returns the supported material to the front of the machine via a front return chute. Please call for details.
