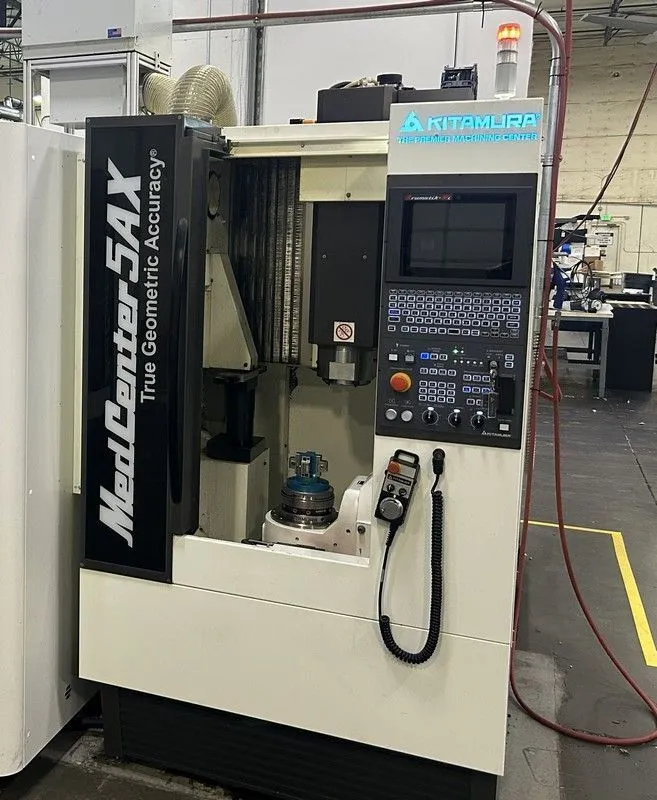

USED 2024 KITAMURA MEDCENTER5AX
Overview
Description
Kitamura’s versatile MedCenter5AX is an ultra-high precision, 5-axis simultaneous vertical machining center that offers unparalleled accuracy and speed for expanded machining capability in the machining of highly complex small to medium, multi-sided parts in one set-up. The machine’s maximum stiffness, flexibility, and cutting capability make it an optimal choice for manufacturing precision parts for the medical, aerospace, automotive and telecommunications industries and micro machining.
Automation ready with the ability to field retrofit a 20-station APC and a high performance 120 tool ATC – all in a super compact, space saving footprint, this small 5-axis machining center works overtime to eliminate waste, increase productivity and lower costs.
Specifications
| X | 10" | 254 mm |
|---|---|---|
| Y | 13" | 330.2 mm |
| Z | 13" | 330.2 mm |
| # Axis | 5 | 5 |
| RPM | 30,000 RPM | 30,000 RPM |
| # ATC | 40 | 40 |
| Taper | HSK- E40 | HSK- E40 |
Specifications
Table Size (Ø170mm) Ø6.7″
Travel (X, Y, Z) (254 x 330 x 330mm) 10″ x 13″ x 13″
Travel (A, C) 240° (-120 to +120°), 0 to 360°
Spindle Taper HSK-E40
Spindle Speed 300~30,000 min‾¹
Tool Storage Capacity 120 Tools
Rapid Feed (X,Y x Z) 60m/min (2,362ipm) x 50m/min (1,969ipm)
Rapid Feed (A, C) 100 min‾¹ (36,000 deg/min), 200 min‾¹ (72,000 deg/min)
Power Requirement 35KVA, 200v AC, 3 Phase
