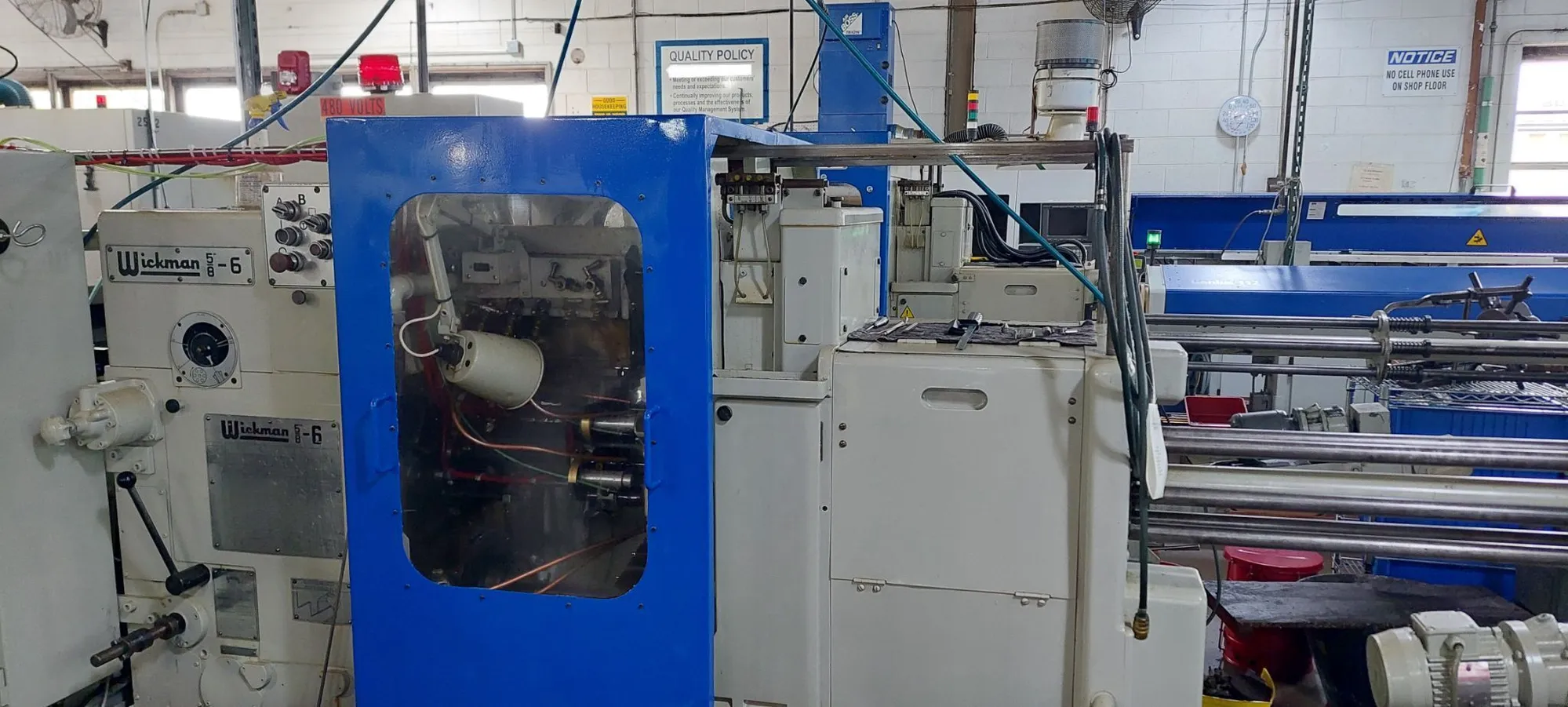

USED 2019 WICKMAN 5/8-6

Round Size....................................5/8"
Hexagon Across Flats..........................0.54"
Square Across Flats...........................0.44"
Bar Feed Stroke...............................3-1/2"
Approach Stroke...............................2"
Independent Slide Stroke......................2"
Lower Cross Slide Position 1 and 2............1/2"
Upper Cross Slide Position 4 and 5............1/2"
Intermediate Cross Slides Position 3 and 6....0.35"
Idle Time.....................................0.64 Seconds
Spindle Speed.................................400-5000 RPM +/-10 with inverter
Range of Cycle Times..........................1.1 - 50 Seconds
Main Motor....................................15 HP
Coolant System Motor Power....................1.1 kW
Lubrication System Motor Power................0.12 KW
Without Stock Carriage........................36" x 116"
With Stock Carriage...........................36" x 228"
Electrics.....................................480V
Net Weight....................................6,725 lb

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
