USED 1996 HAAS VF-3B

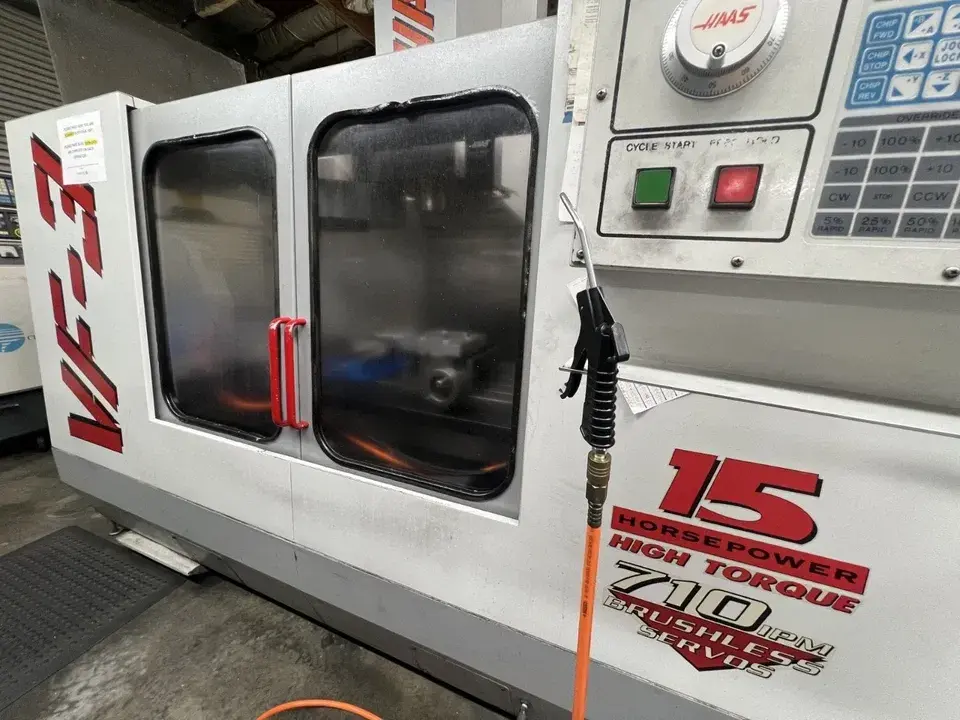

1996 Haas VF-3B CNC Vertical Machining Center | Geared Head | One-Owner | New Spindle 2018 | Under Power l 4th Axis

CONDITION: Used – Excellent Mechanical & Functional Condition

LOCATION: Hayward, CA (On shop floor, under power)

=============================
PREMIUM ADVANTAGES & SELLING POINTS
=============================

* THE "B" ADVANTAGE (Geared Head): This is a true VF-3B model featuring the sought-after High-Torque 2-Speed Gearbox Drive. Ideal for rigid, heavy-milling operations in tough materials, steel, or mold work. Much scarcer and more valuable than standard belt-drive units.

* SINGLE-OWNER PEDIGREE: Purchased brand new from Selway Machine Tool. Never bounced around from shop to shop or abused by auction flippers.

* VERIFIED NEW SPINDLE (2018): Low hours since a complete spindle replacement. Runs incredibly smooth and quiet through the full range with zero high-RPM bearing whine.

* IN-HOUSE MAINTENANCE HISTORY: Maintained strictly via regular, disciplined in-house preventative maintenance tracking and internal logbook documentation.

=============================
PHYSICAL & MECHANICAL SPECIFICATIONS
=============================

- MANUFACTURER: Haas Automation, Inc. (Classic Los Angeles, CA Era)

- MODEL: VF-3B (High-Torque Gearbox Drive VMC)

- SERIAL NUMBER: 7518

- DATE OF MANUFACTURING: May 1996 (5/96)

- X-AXIS TRAVEL: 40"

- Y-AXIS TRAVEL: 20"

- Z-AXIS TRAVEL: 25"

- TABLE SIZE: 48" x 18"

- MAX TABLE LOAD: 3,500 lbs

- SPINDLE TAPER: CAT 40

- SPINDLE SPEED: 7,500 RPM Max

- TOOL CHANGER: 20-Station Carousel (Umbrella Style)

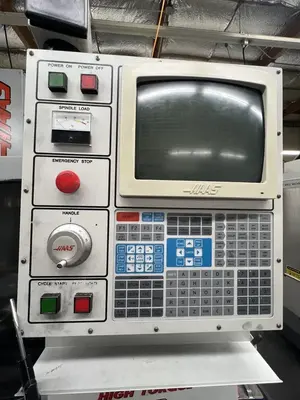

- CONTROL TYPE: Classic Haas Control

- COOLANT OPTIONS: Factory Programmable Coolant Nozzle (P-COOL)

- CHIP REMOVAL: Internal Chip Auger System Included

- Rigid Tapping

- Wired for 4th Axis with 4th Axis Card

- APPROXIMATE MACHINE WEIGHT: 12,500 lbs

- APPROXIMATE MACHINE DIMENSIONS: 118" L x 98" W x 120" H

=============================

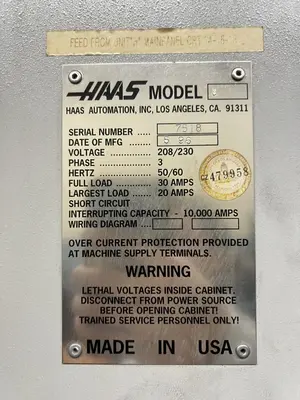

POWER & UTILITY REQUIREMENTS
=============================

- VOLTAGE: 208/230 VAC

- PHASE: 3-Phase

- HERTZ: 50/60 Hz

- FULL LOAD CURRENT: 30 Amps

- LARGEST LOAD: 20 Amps

- SHORT CIRCUIT INTERRUPTING CAPACITY: 10,000 Amps

=============================
CONDITION & DISCLOSURE NOTES
=============================

* TOOL CHANGER WEAR: The 20-station carousel shows some cosmetic and minor mechanical wear/damage typical for a mid-90s workhorse, but the unit remains functional.

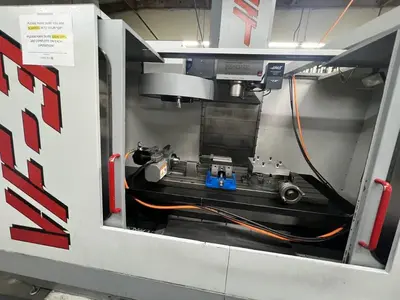

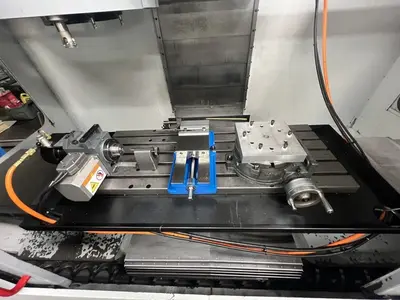

* EXCLUSIONS: Any rotary indexers, 4th-axis drives, or custom table fixtures visible in the shop environment photos are NOT included in this sale.

=============================
LOGISTICS, RIGGING & TRUCKING
=============================

* OPERATIONAL STATUS: Currently under power and fully available for inspection on the facility floor in Hayward, CA.

* RIGGING & TRUCKING: NOT INCLUDED. Rigging out of the facility, loading, and all trucking/freight logistics are the absolute responsibility of the buyer. Professional outside rigging is required for removal. Local Northern California rigger contact information can be provided upon request.
