USED 1997 HAAS VF-3

📌 BASIC LISTING DETAILS

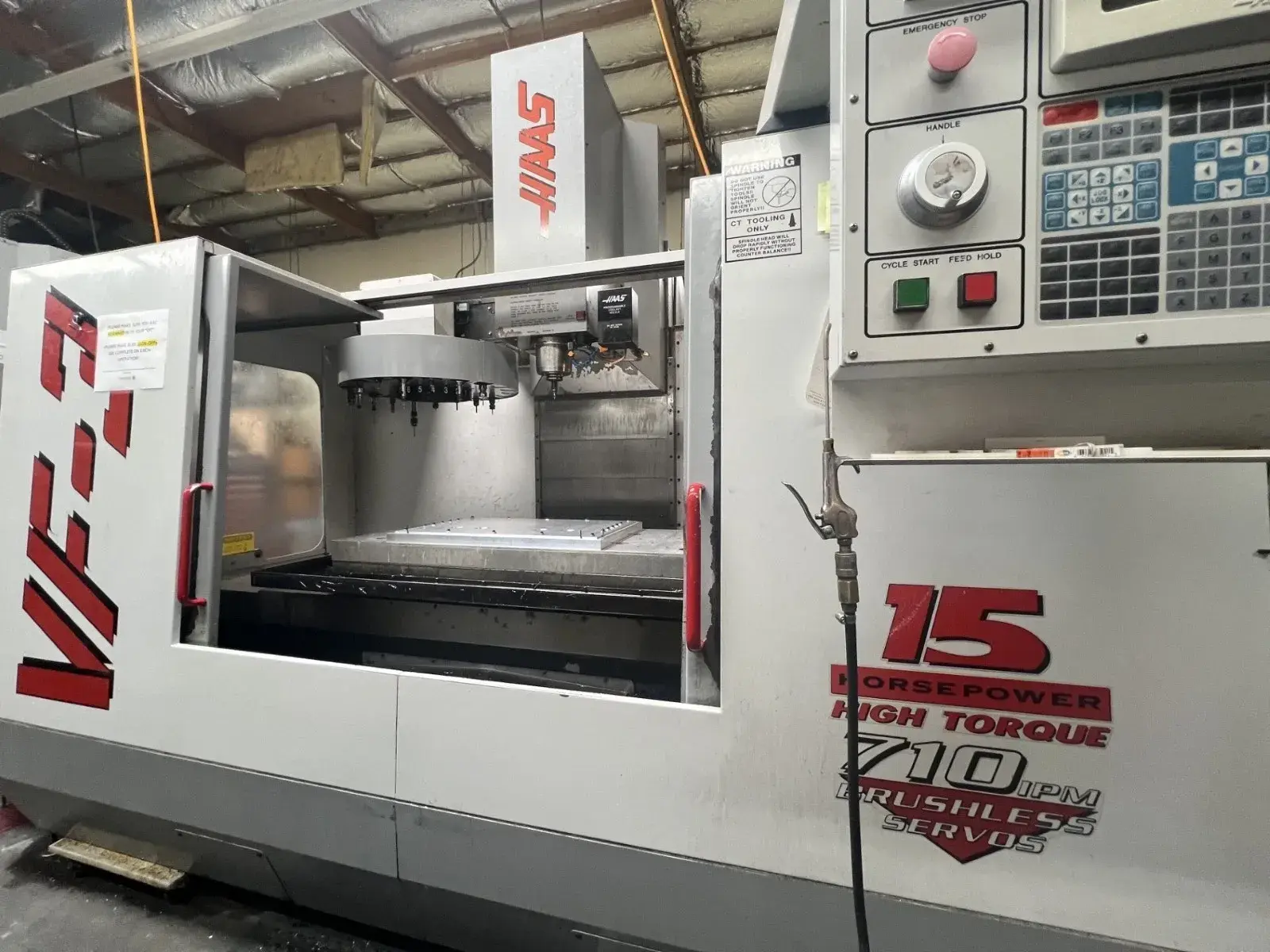

Title: 1997 Haas VF-3 CNC Vertical Machining Center | Only 7,700 Hours | One-Owner | Calmotion USB | Selway Serviced 2025 | Under Power l 4th Axis

Condition: Used – Excellent Mechanical & Functional Condition

Location: Hayward, CA (On shop floor, under power)

🚀 PREMIUM ADVANTAGES & SELLING POINTS (The "Bells & Whistles")

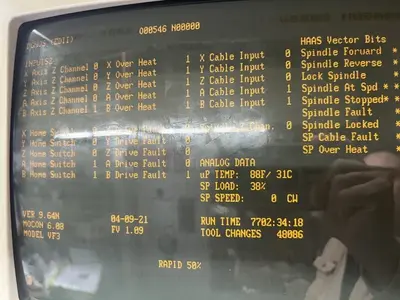

Extremely Low Verified Hours: Only 7,702 total lifetime run hours and 48,086 total lifetime tool changes. This machine was used exclusively for short-run, low-volume toolroom work—never thrashed in a high-production facility.

Calmotion USB Interface Retrofit: Includes a factory-integrated Calmotion USB-to-Serial unit plug-in. Allows seamless loading and drip-feeding of large modern CAM/G-code programs directly from a standard USB thumb drive (no legacy floppy disks or messy RS-232 serial cabling required).

Single-Owner Pedigree: Purchased brand new from Selway Machine Tool. Documented history from a clean facility floor.

Verified New Spindle (2018): Low operational hours since a complete spindle replacement. Runs exceptionally quiet up to maximum RPMs.

Recent Selway Service & Logs: Last outsourced field service performed directly by Selway on 3/31/2025 (replaced air/oil pressure kit switch). Meticulously documented by disciplined in-house PM log tracking.

Factory 4th & 5th Axis Pre-Wire: Side panel connector blocks and internal amp tracks are fully configured from the factory for plug-and-play rotary indexing.

⚙️ PHYSICAL & MECHANICAL SPECIFICATIONS
Manufacturer: Haas Automation, Inc. (Classic Los Angeles, CA Era)

Model: VF-3 Standard

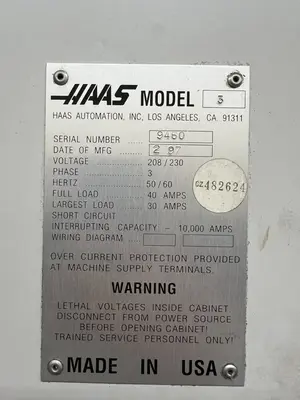

Serial Number: 9460

Date of Manufacturing: February 1997 (2/97)

Software Version: Rock-Solid, Stable Ver 9.64N (MOCON 6.08)

X-Axis Travel: 40"

Y-Axis Travel: 20"

Z-Axis Travel: 25"

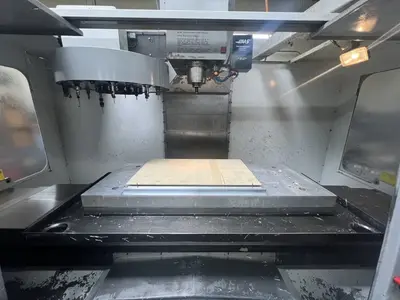

Table Size: 48" x 18"

Max Table Load: 3,500 lbs

Spindle Taper: CAT 40

Spindle Speed: 8,100 RPM Max

Servos: High-Reliability 710 IPM Brushless Servos

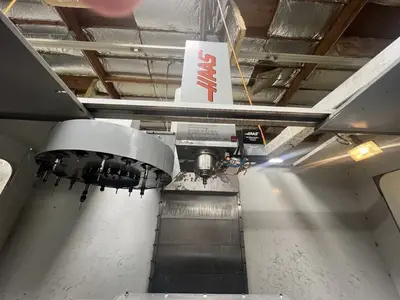

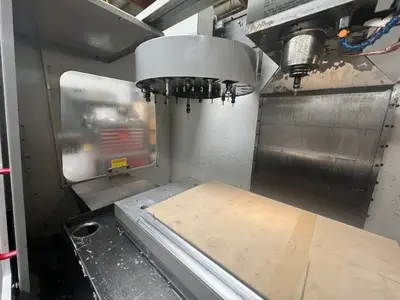

Tool Changer: 20-Station Carousel (Umbrella Style)

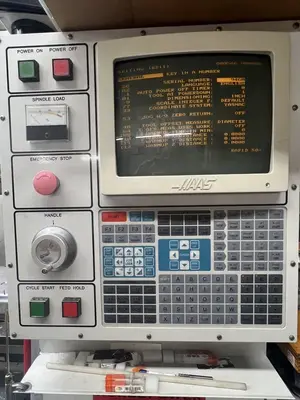

Control Type: Classic Haas Control

Coolant Options: Factory Programmable Coolant Nozzle (P-COOL)

Chip Removal: Internal Chip Auger System Included

Factory 4th & 5th Axis Pre-Wire: Side panel connector blocks and internal amp tracks are fully configured from the factory for plug-and-play rotary indexing. Includes 4th Axis Card

Rigid Tapping

Approximate Machine Weight: 12,500 lbs

Approximate Machine Dimensions: 118" L x 98" W x 120" H

⚡ POWER & UTILITY REQUIREMENTS
Voltage: 208/230 VAC

Phase: 3-Phase

Hertz: 50/60 Hz

Full Load Current: 40 Amps

Largest Load: 30 Amps

Short Circuit Interrupting Capacity: 10,000 Amps

⚠️ CONDITION & DISCLOSURE NOTES
Tool Changer Wear: The 20-station carousel shows some cosmetic and minor mechanical wear/damage typical for a mid-90s machine, but the assembly remains operational.

Exclusions: The aluminum fixture plates, wood protective sheeting, and any independent rotary indexers sitting on the table in photos are NOT included in this sale.

🚛 LOGISTICS, RIGGING & TRUCKING
Operational Status: Currently under power and fully available for inspection on the facility floor in Hayward, CA.

Rigging & Trucking: NOT INCLUDED. Rigging out of the facility, loading, and all trucking/freight logistics are the absolute responsibility of the buyer. Professional outside rigging is required for removal. Local Northern California rigger contact information can be provided upon request.
