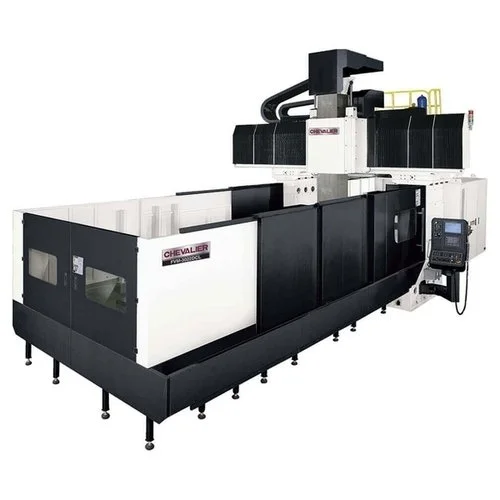

The heavily ribbed cast-iron base with Meehanite® casting ensures the best rigidity and stability.
The big size column and box-type beam construction provide better support and damping.
The entire travel of the table is fully supported by two heavy-duty roller guideways of the X-axis, providing a better acceleration and preventing a stick-slip problem.
The 400 x 400mm RAM design on Z- axis gives the machine excellent support during the cutting process.
The spindle motor, ball screw and double counter-balancing cylinders are all properly located at the best positions to avoid unequal torque while ensuring the best structural accuracy.
A forced circulation cooling and lubrication system is applied to the spindle, bearing and gearbox to reduce thermal strain on the spindle and extend the life span.
| X | 240" | 6,096 mm |
| Y | 133.8" | 3,398.5 mm |
| Z | 39.3" | 998.22 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| Taper | BT50 / CT50 | BT50 / CT50 |
| Table-W | 118" | 2,997.2 mm |
| Table-L | 240" | 6,096 mm |
| # Axis | 3 | 3 |
