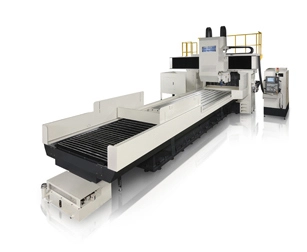

• High precision cartridge type spindle is equipped with four pieces of Class 7 (P4) angular contact ball bearings plus a set of N-N needle roller bearings in front of spindle.
• Precision ball screws (C3 grade) on cross-feed and down-feed axes are directly coupled to Delta AC servo motors.
• Roller type linear guideway design for longitudinal movement of spindle head
• Automatic cycle + continuous flow lubrication system for guideways, ball screw and table.
| Table-W | 49.2" | 1,249.7 mm |
| Table-L | 78.7" | 1,999 mm |
| Power | 25 hp | 18.6 kW |
| Grinding Wheel Width | 4" | 101.6 mm |
| Grinding Wheel Dia. | 20" | 508 mm |
| Weight | 50,600 lbs. | 50,600 lbs. |
