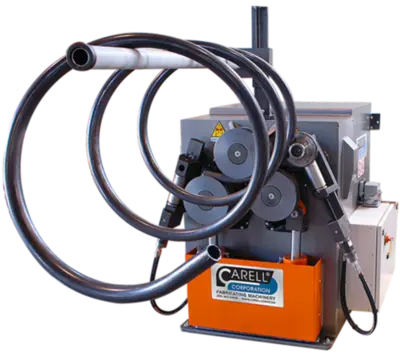

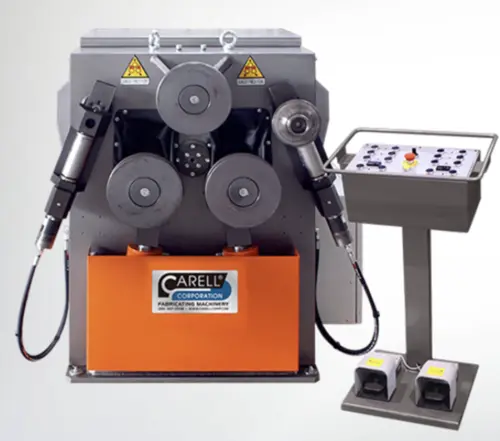

CARELL's 305HV roll bending machines are available with 6 way multi-axis adjustable lateral guides, powered rotation of all three bending rolls and independent hydraulic adjustment of the lower rolls for double pre-bending. This versatile unit is ideal for rolling standard/special sections plus tube & pipe in a variety of material types. The 305HV Series Universal Telescoping Rolls are designed for bending profiles, flat bar (on flat and on edge), square bar, tees, channel as well as round bar, square & rectangular tube sections, angles leg-in, leg-out and can be setup to operate in horizontal or vertical position adding further value to your production.
Standard Features
• Rugged one-piece solid steel weldment frame
• High Strength Steel Shafts journaled in self aligning bearings for optimum performance and efficiency
• Dual LED Digital Displays monitor bending roll positions
• Double Pinch Geometry permits pre-bending of leading & trailing ends of the profile without removal from the machine
• Telescoping modular multi-component roll set specifically designed to bend standard sections including angle leg-in/out and square/rectangular tube, as well as other shapes in a variety of material types
• Tri-Directional Lateral Guides with cam rollers for correcting inherent twist when rolling angle leg-in
• Heavy duty solid gears & motor/reducer group designed for maximum torque efficiency to all rolls
• Operates in both horizontal and vertical orientations
| Angle (L1) | 3" | 76.2 mm |
| Angle (L2) | 2.5" | 63.5 mm |
| Pipe Capacity | 2.5" | 63.5 mm |
| (Init/Dbl Pinch or Pyramid) | DBL PINCH | DBL PINCH |
| Hyd/Mech | HYD | HYD |
| Operation (Horz, Vert, Horz/Vert) | HORZ/VERT | HORZ/VERT |
| Power | 6.5 hp | 4.8 kW |
| Weight | 3450 (LBS) | 3450 (LBS) |
