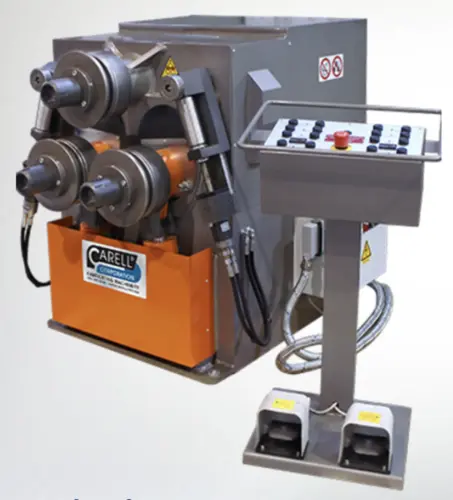

CARELL's 304HV double initial pinch universal bending machines are available with independent hydraulic adjustment of both lateral bending rolls and powered rotation of all three bending rolls. This versatile unit is ideal for rolling standard/special sections as well as tube and pipe in mild-structural-stainless steels, aluminum, brass, copper and other materials. Machines are furnished with a set of standard universal rolls.
Standard Features
• Dual LED Digital Displays monitor bending roll positions
• Double Pinch Geometry permits pre-bending of leading & trailing ends of the profile without removal from the machine
• Telescoping modular multi-component roll set specifically designed to bend standard sections including angle leg-in/out and square/rectangular tube, as well as other shapes in a variety of material types
• Tri-Directional Lateral Guides with cam rollers for correcting inherent twist when rolling angle leg-in
• Operates in both horizontal and vertical orientations
| Angle (L1) | 2.5" | 63.5 mm |
| Angle (L2) | 2" | 50.8 mm |
| Pipe Capacity | 2" | 50.8 mm |
| (Init/Dbl Pinch or Pyramid) | DBL PINCH | DBL PINCH |
| Hyd/Mech | HYD | HYD |
| Operation (Horz, Vert, Horz/Vert) | HORZ/VERT | HORZ/VERT |
| Power | 4.7 hp | 3.5 kW |
| Weight | 2420 (LBS) | 2420 (LBS) |
