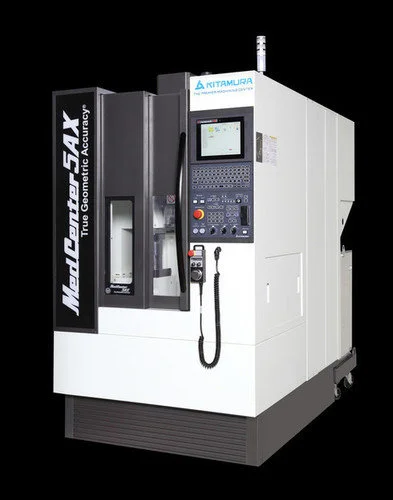

Ideal for ultra-high precision simultaneous 5-axis machining of small medical parts, micro machining
Features
• Ideal for ultra-high precision simultaneous 5-axis machining of small medical parts, micro machining
• Positioning Accuracy: ±0.000079” Full Stroke, Repeatability: ±0.000039”
• Compact design fits within a 4' x 7' footprint
• Powerful high speed 30,000rpm HSK-E40 25HP Integral Drive Spindle
• 40 tool, fixed pot ATC with maximum tool weight of 4.4Lbs. Optional 120T ATC available.
• High accuracy package - Linear & rotary scales, 67 million pulse encoder technology, 16mm pitch ballscrews
• Optional 12-station and 24 APC systems available
| X | 10" | 254 mm |
| Y | 13" | 330.2 mm |
| Z | 13" | 330.2 mm |
| # Axis | 5 | 5 |
| RPM | 30,000 RPM | 30,000 RPM |
| # ATC | 40 | 40 |
| Taper | HSK- E40 | HSK- E40 |
