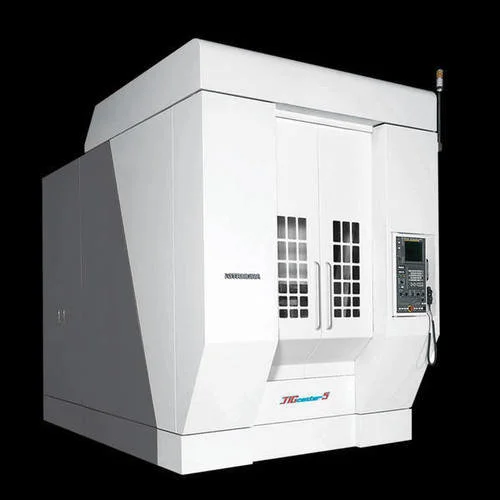

NEW KITAMURA JIGCENTER-5
Overview
Description
Features
• Ideal for ultra-high precision simultaneous 3-axis machining.
• Positioning Accuracy: ±0.000039” Full Stroke, Repeatability: ±0.00002”
• Sliding overhead door allows for easy workpiece loading/unloading
• Powerful 4-step geared spindle delivers high torque and high speed for maximum machining flexibility
• Standard 220psi Coolant thru the spindle and Double Decker style conveyor and filtration system
• Linear scale feedback on all axes
• Highest grade meehanite cast iron construction with solid box ways
Specifications
| X | 32" | 812.8 mm |
|---|---|---|
| Y | 29.3" | 744.22 mm |
| Z | 19.7" | 500.38 mm |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 50 | 50 |
| Taper | NST No. 40 | NST No. 40 |
| Table-W | 30.7" | 779.78 mm |
| Table-L | 47.2" | 1,198.9 mm |
