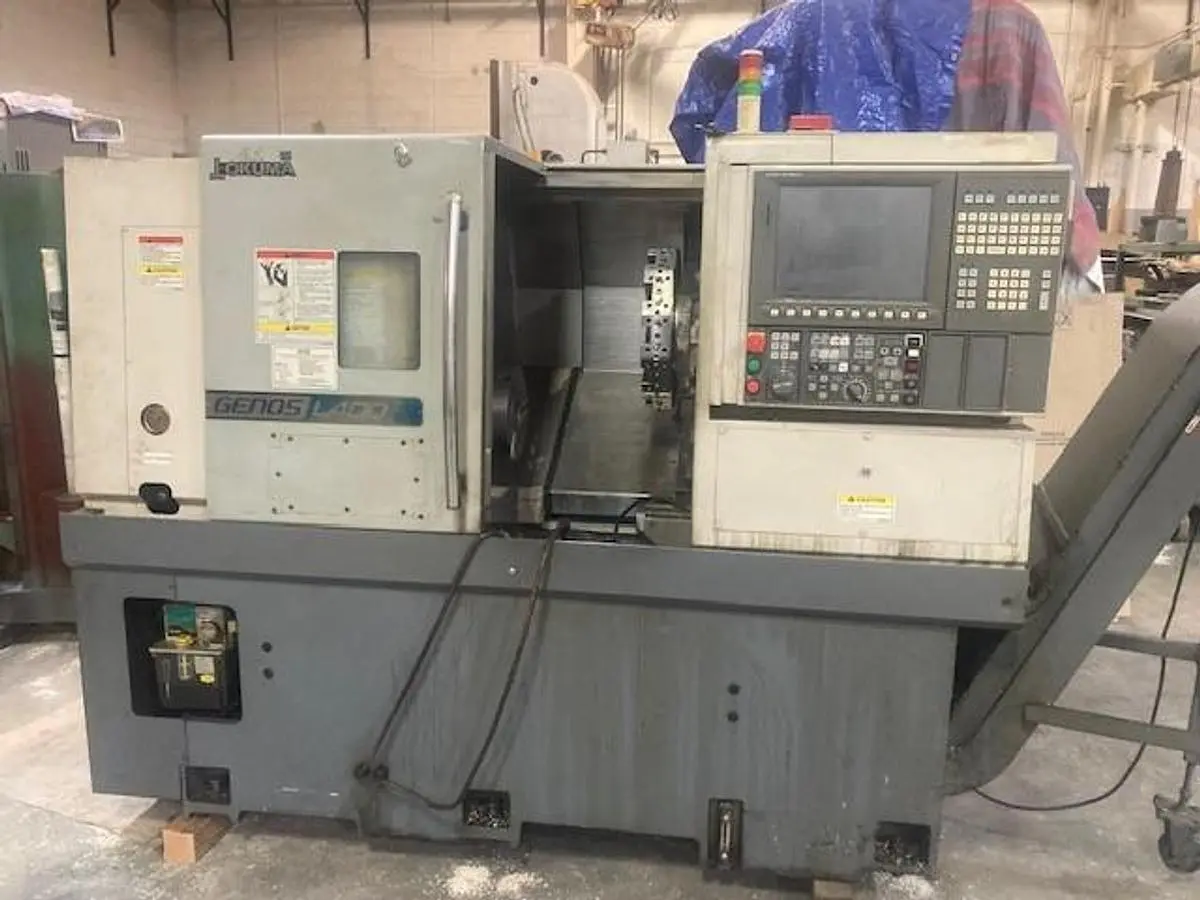

USED 2013 OKUMA GENOS L400

The 2013 OKUMA Genos L400 is a reliable and efficient CNC lathe suitable for various turning operations. It features a robust OSP-P200LA-R control system and is equipped with a 10-inch chuck, providing versatility in handling different workpiece sizes. The lathe's swing is 20.47 inches, with a maximum turning diameter of 15.35 inches and a center distance of 19.68 inches, making it ideal for medium to large workpieces.

This used CNC lathe includes a 20 hp main motor, ensuring powerful performance, and operates at a spindle speed of 3,000 rpm. With an X-axis travel of 8.66 inches and Z-axis travel of 20.47 inches, it offers considerable flexibility for complex machining tasks. The rapid traverse rates of 787 ipm on the X-axis and 985 ipm on the Z-axis enhance productivity in operations.

Weighing 10,150 pounds, the machine boasts a sturdy build and includes a 12-station turret for efficient tool handling. Additional features like the coolant system and tailstock increase its functionality and capacity for a variety of machining applications. This model is an excellent choice for businesses looking to optimize their turning processes with dependable and high-quality equipment.

2013  OKUMA GENOS L400 CNC 2-AXIS TURNING CENTER LATHE
S/N 0970





SPECIFICATIONS:

OKUMA GENOS L400 CNC 2-AXIS TURNING CENTER LATHE

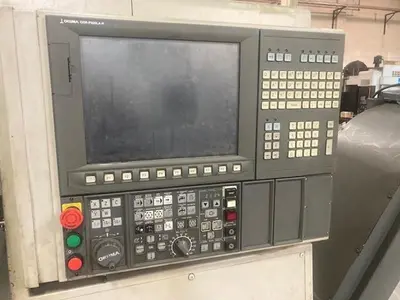

OSP-P200LA-R Control
Swing: 20.47"
Turning diameter: 15.35"
Center distance: 19.68"
Chuck size: 10"
Bar capacity: 3.14"
X axis travel: 8.66"
Z axis travel: 20.47"
Rapid traverse (x/z): 787/985 ipm
Spindle nose: A2-8
Spindle speed: 3,000 rpm
Main motor: 20 hp
Turret capacity: 12
Machine weight: 10,150 pounds

Coolant System
Tailstock
