USED DENFORD VICEROY TDS1/1GB
Overview

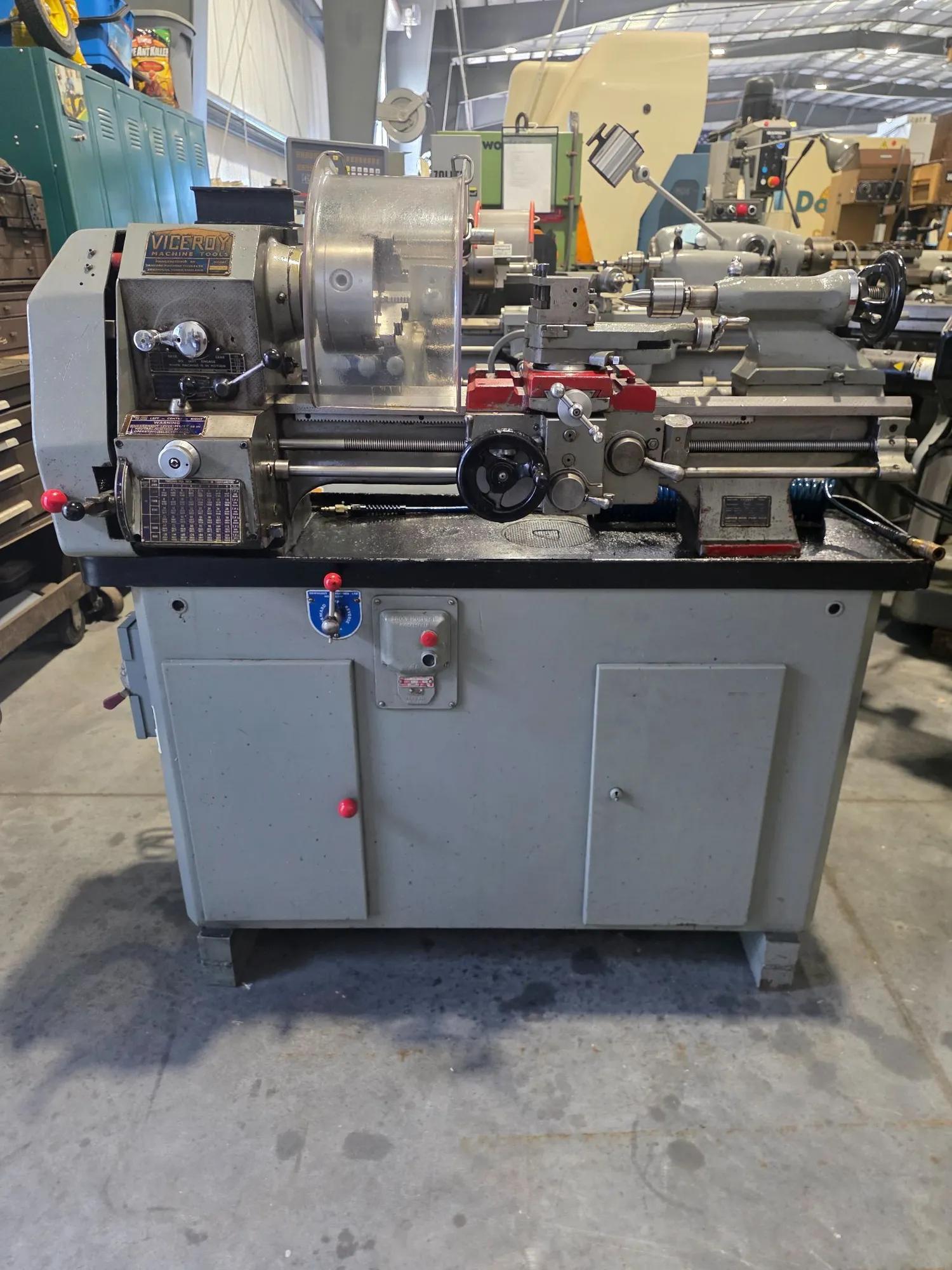

DENFORD VICEROY TDS1/1GB 10” x 24”cc Lathe INCH/MM ENGLAND #8314
Specs
DENFORD VICEROY TDS1/1GB 10” x 24”cc Lathe INCH/MM ENGLAND #8314
Reference #8314
Model # TDS1/1GB
Serial # 10776
Swing over bed- 10”
Distance between centers- 24”
Spindle bore- 13/16”
Max Spindle speed- 1,350 R.P.M.
Spindle nose taper - 1-1/2" x 8 T.P.I.
Swing over cross slide- 6-5/8”
Inch threads- 4" – 224 T.P.I.
Metric threads- 0.10 – 7.0 mm
Longitudinal feeds Inch/R.P.M.- .08" to .0014"
Cross feeds Inches- .03"to .0005"
Cross slide travel- 6-1/2”
Tailstock quill diameter- 15/16”
Tailstock quill travel- 2.25”
Tailstock taper- #3 Morse
Equipped With
6.3” Bison 3 Jaw Chuck 1.6" Bore
6" DST 4 Jaw Chuck 1.3" Bore
Spindle motor 1.5 H.P.
Machine is wired for 220 volt / 3 phase / 60 H.Z.
Machine weight- 1000 Lbs.
Machine dimensions- 50” x 22” x 46” H
Machine location- Sarasota, Florida
