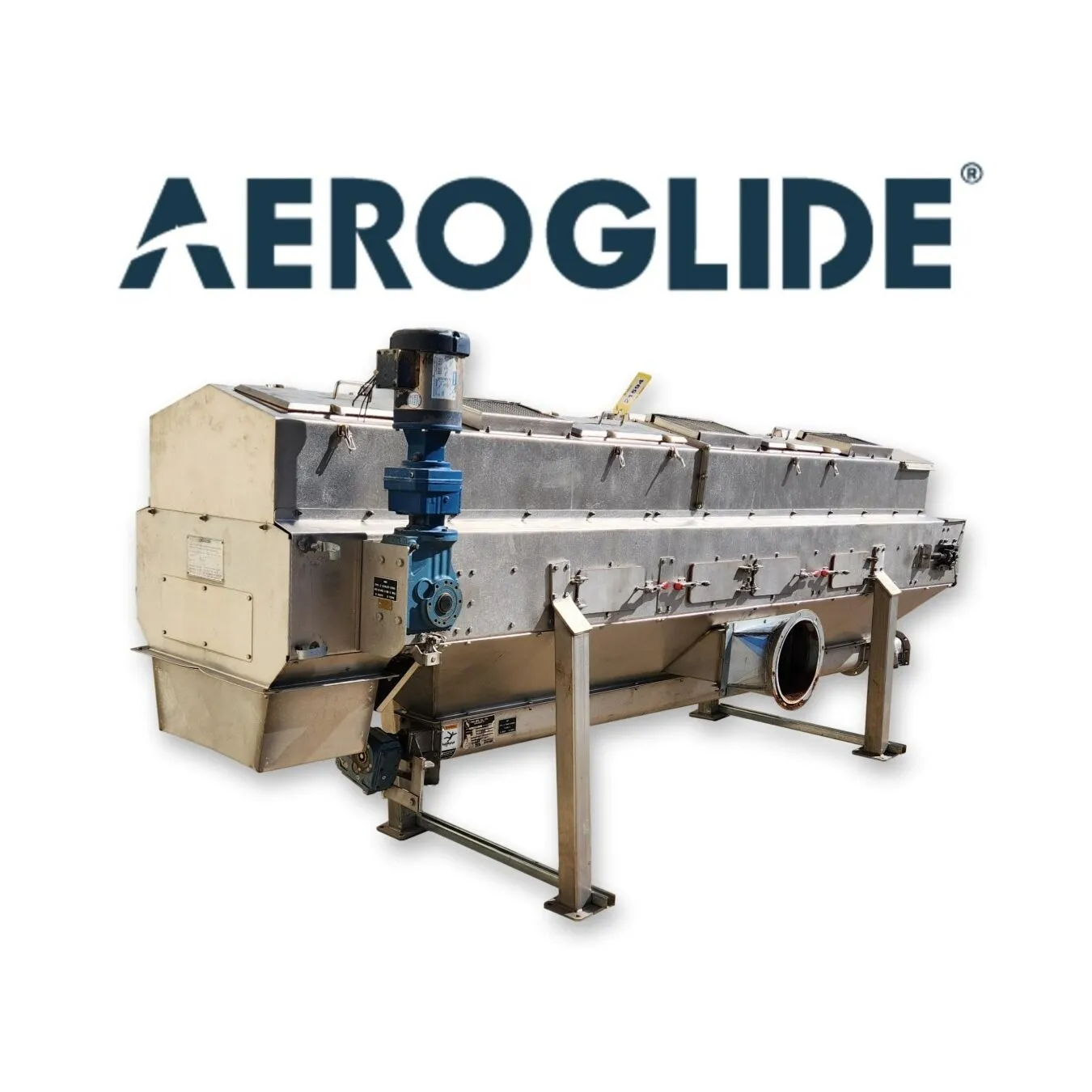

USED AEROGLIDE C1-24-13 XXC

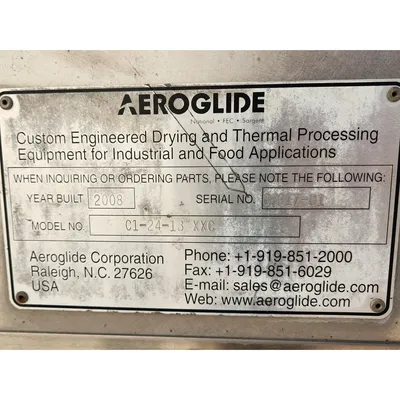

Serial No: 08017-01

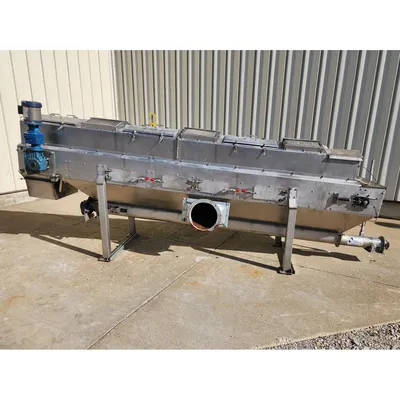

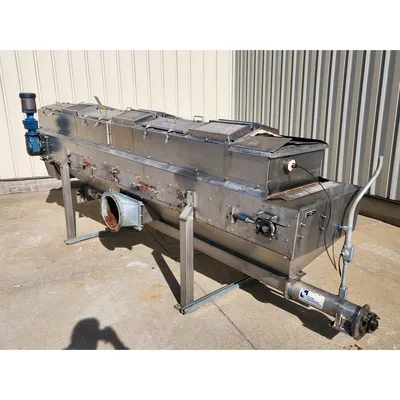

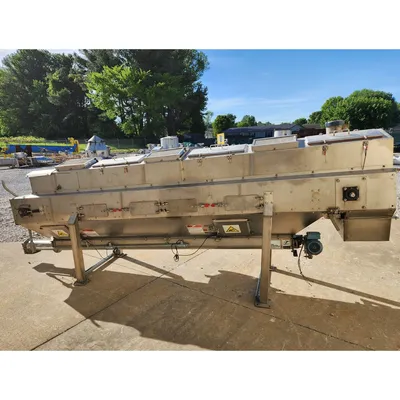

High-capacity continuous cooling system (non-insulated), stainless steel sanitary construction.

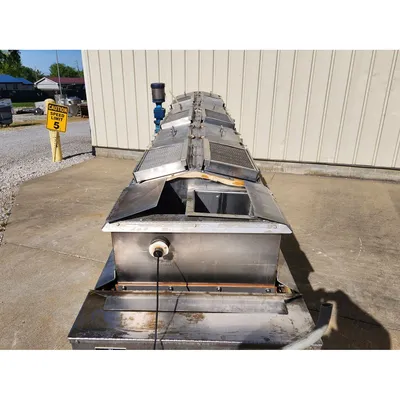

Top cover with inspection & diffuser panels and an inlet capacitive sensor.
Product Inlet: 13" X 10" (51" above base)
Product Discharge: 20" X 13" (27" clearance under)
Process Air Inlet: 17.5"W X 7.5" flange

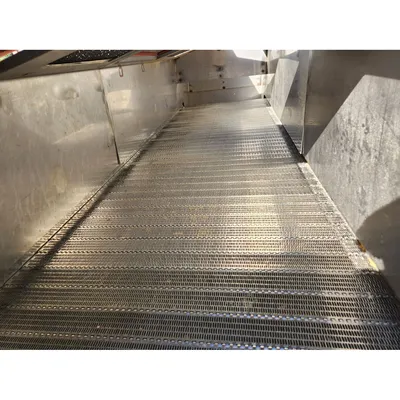

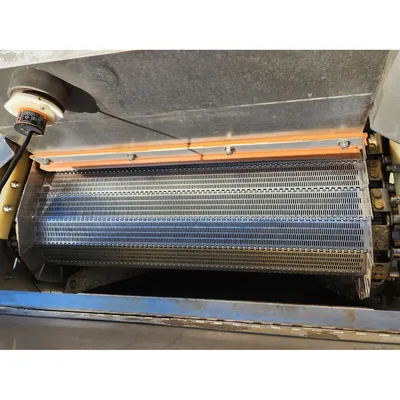

Belt: 24" wide X 12' long stainless steel slotted slats, 2" pitch, roller chain side glides
Adjustable product spreader blade and bottom belt scraper.

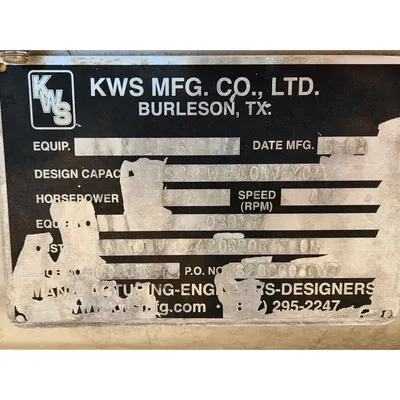

Bottom hopper directs conveyor fines into a 4"Ø X 11'-6" screw conveyor.

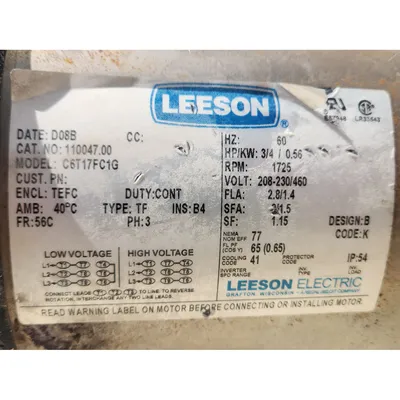

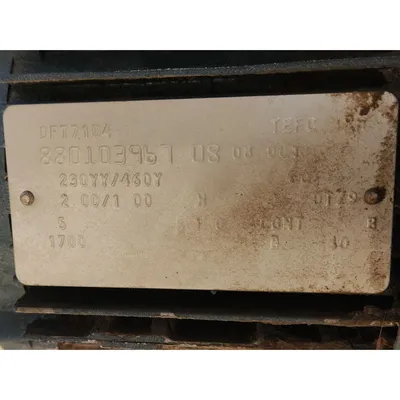

Electrical Service (belt & auger): 230/460V, 60Hz, 3ph
Speed Controllers sold separately

FOB: Millwood, WV 25262

Item: 21594      Model :   C1-24-13 XXC
 MFG: Aeroglide
