Fulton Thermal Fluid Heater Skid — 480V 3-Phase Complete Skid System with Pump, Motor & Control Panel

OVERVIEW

This is a Fulton thermal fluid heater skid with integrated circulation pump, pump motor, piping, valves, and control panel. Electrically powered at 480V, 3-Phase, 3-Wire — fed from HPKB7/16. Complete skid-mounted system ready for inspection — contact us to schedule.
Fulton Thermal Fluid Heater Skid — complete skid-mounted thermal fluid (hot oil) heating system. Manufacturer: Fulton. Thermal fluid heater with integral circulation pump and motor, suction strainer, flexible connections, process piping, valves, and fittings — all mounted on a structural steel skid with yellow safety curbing. Fulton factory control panel included with temperature controllers, indicator lights, safety shut-off, and all operational controls. Electrical supply: 480V, 3-Phase, 3-Wire, fed from panel HPKB7/16.
Ideal for industrial process heating, food and beverage processing, chemical processing, plastics and rubber manufacturing, pharmaceutical operations, or any application requiring a reliable, high-temperature thermal fluid heating system.

EQUIPMENT SPECIFICATIONS

Manufacturer: Fulton
Equipment Type: Thermal Fluid Heater Skid (Hot Oil System)
Electrical Supply: 480V, 3-Phase, 3-Wire
Power Feed: HPKB7/16
Skid Color: Tan / Gold (factory finish)
Skid Type: Structural steel skid with yellow safety curb/containment


KEY FEATURES & BENEFITS
Fulton Thermal Fluid Heater:

Skid-mounted thermal fluid (hot oil) heater — complete, self-contained system
Fulton brand — well-known manufacturer of industrial thermal fluid heating systems
480V / 3-Phase / 3-Wire electrical supply — standard industrial power
Tan factory finish — consistent with Fulton standard product appearance

Circulation Pump & Motor:

Integral hot oil circulation pump mounted on skid
Electric motor drive — TEFC-type enclosure
Suction strainer and isolation valves included
Flexible stainless hose connectors for vibration isolation
Insulated pump and piping connections

Piping, Valves & Fittings:

Complete process piping included on skid
Flanged connections throughout
Y-strainer / suction strainer on pump inlet
Insulated piping — mineral wool or fiberglass insulation
Stainless flex connectors visible in photos

Fulton Control Panel:

Factory-mounted Fulton control panel — tan enclosure matching heater
3x digital temperature controllers (Fuji or equivalent)
Pilot / indicator lights — green run and red alarm lamps
Large red emergency stop / safety mushroom button
Power / energy meter (GE or equivalent)
Main rotary disconnect / isolator
NEMA-rated enclosure — 480V 3P 3W

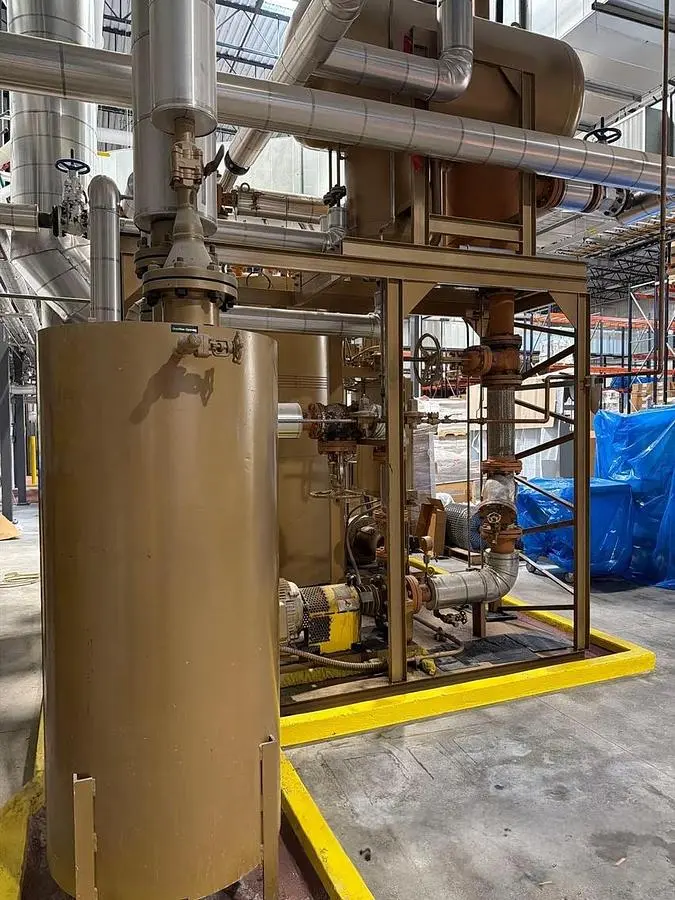

Skid & Containment:

Structural steel skid frame — gold/tan painted
Yellow painted containment curbing around skid perimeter
Forklift-accessible base


SYSTEM COMPONENTS

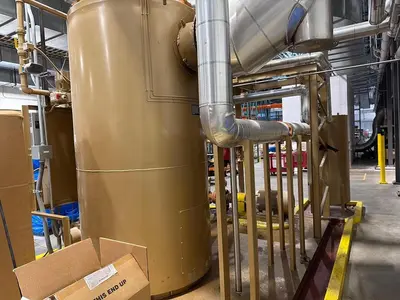

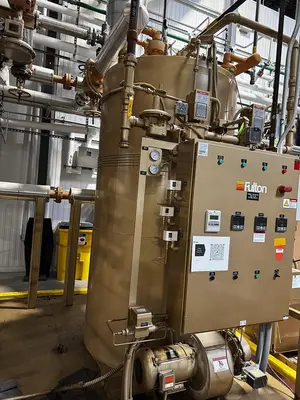

Main Heater Unit:

Fulton thermal fluid heater — vertical cylindrical vessel design
Tan painted outer jacket/shell
Top-mounted pipe connections to process header
Insulated ductwork/stack connections at top

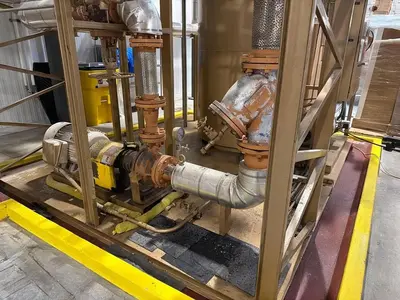

Pump Skid Assembly:

Hot oil circulation pump with electric motor
Suction strainer
Flanged isolation valves
Flexible stainless hose connectors
Insulated suction and discharge piping
Pressure gauge on pump assembly

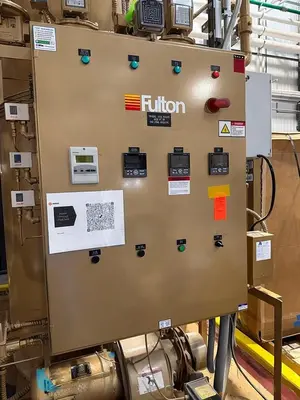

Control Panel:

Fulton factory control panel (480V, 3P, 3W — Fed from HPKB7/16)
3x digital temperature controllers
Power/energy meter
Indicator pilot lights (green run, red alarm/fault)
Red emergency stop mushroom button
Rotary main disconnect


SPECIFICATIONS SUMMARY

Manufacturer: Fulton
Equipment Type: Thermal Fluid Heater (Hot Oil Heater) — Skid Mounted
Model: TBC
Serial Number: TBC
Year: TBC
Energy Source: Electric — 480V, 3-Phase, 3-Wire
Power Feed: HPKB7/16
Heater Configuration: Vertical
Pump: Integral hot oil circulation pump with motor
Control Panel: Fulton factory panel — 480V 3P 3W
Temperature Controllers: 3x digital (Fuji or equivalent)
Skid: Structural steel, yellow safety curbing
Condition: Used


ADDITIONAL INFORMATION

Condition: Used
Manufacturer: Fulton
Equipment Type: Thermal Fluid Heater Skid
Electrical: 480V, 3-Phase, 3-Wire — Fed from HPKB7/16
Control Panel: Fulton factory-mounted panel included
Pump: Integral circulation pump and motor included
Piping/Valves: Complete — included on skid
Inspection: Welcome — contact us to schedule


IMPORTANT NOTES:

Electric thermal fluid (hot oil) heater — 480V 3-Phase supply required
Complete skid assembly — heater, pump, motor, piping, valves, and control panel all included
Buyer responsible for transport and rigging arrangements from current location
Contact us for additional photos, video walkthroughs, or technical questions

* Manufacturer: Fulton
* Electrical Supply: 480V, 3-Phase, 3-Wire
* Condition: Used
