USED SMC C4SF
Overview
Description

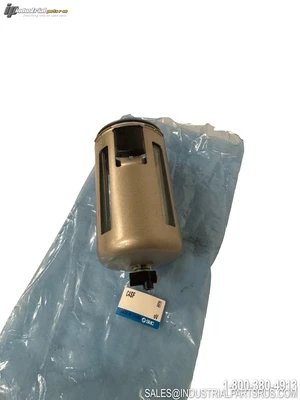

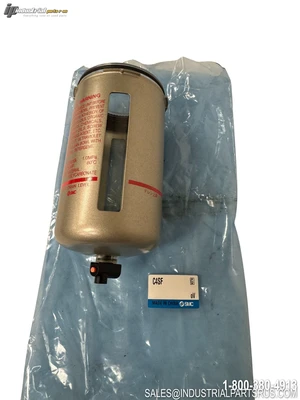

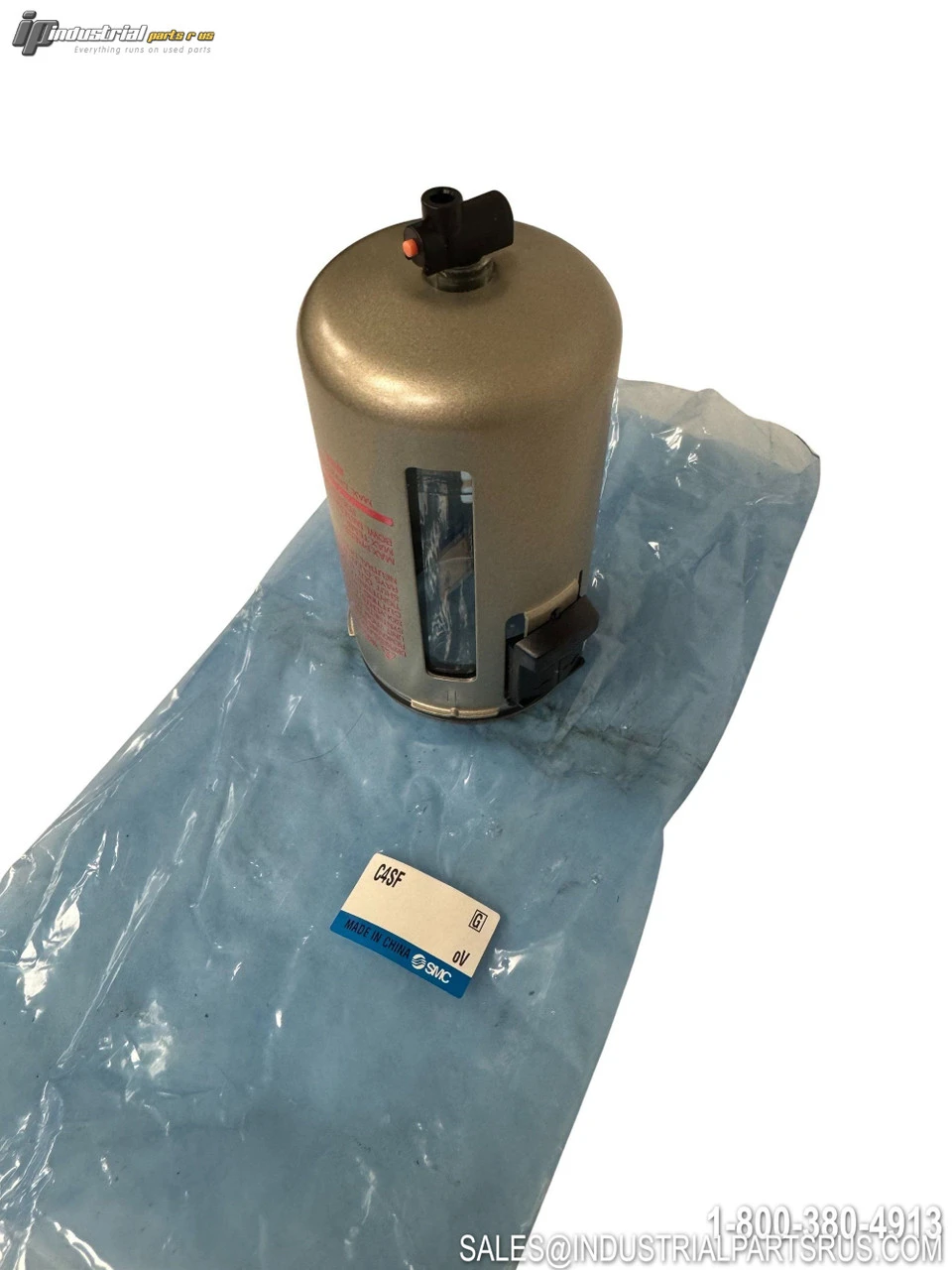

The SMC C4SF is a pneumatic bowl assembly designed for use with SMC AF, AFD, and AFM series air filters in body sizes 40-60. This polycarbonate bowl assembly provides clear visibility for monitoring fluid levels and ensures reliable filtration performance in pneumatic air preparation systems.
Specification
Value
Brand
SMC
Model/Part Number
C4SF
Product Type
Bowl Assembly
Compatible With
AF, AFD & AFM Series Filters
Body Size
40-60
Material
Polycarbonate
Max Pressure
1.0 MPa
Min Operating Pressure
0.1 MPa
Max Temperature
60°C
Diameter
2.5 inches
Weight
0.25 lbs (0.113 kg)
Series
AF Series
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI1617
UPC: 679523686208
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686208
Manufacturer: SMC
Part Number: C4SF
Shelf: B-7
Model: C4SF
MPN: C4SF
Type: Pneumatic OTHER
