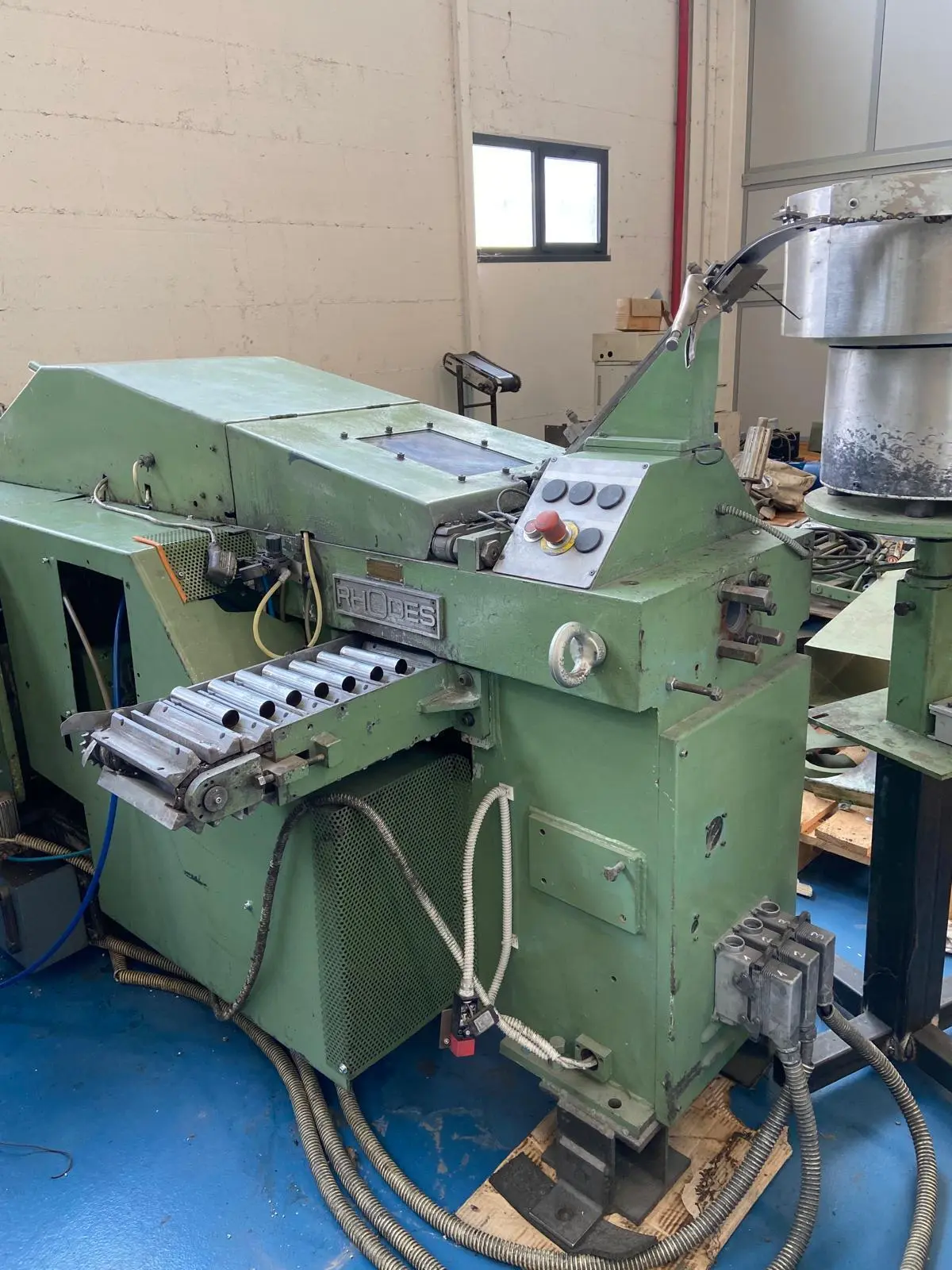

USED 1975 RHODES KJ 160/12

Manufacture
- Rhodes / New: 1975
- Model: KJ 160/12

With a New Vibratory Slug Elevator

Material
- Aluminum and zinc

Tonnage
- 160 mtons

Stroke
- 12" (305mm)

Tube Diameters
- Current Owner made 19, 22, 25, and 28mm diameter tubes and cans
- Press design max = 1.75" or 44.45mm
- Press design max for Collapsible Tubes at 70 mtons = 1.75" or 44.45mm

Speed
- Press design: 60-120 pieces per minute
- Current Owner ran at 110 pieces per minute on average

Drive Motor
- 20 hp (15 kW)

Adjustment to Slide: 0.5" (12.7mm)
Bed to Slide with Stroke and adjustment up 'X' = 31.5" or 800mm
Maximum die base diameter 'Y' = 6" or 152mm

Included:
- New vibratory slug elevator
- Slug Feeder/Bowl
- Onboard controls
- Tube exit conveyor

Size:
- 13'6" L x 5'9" W x 5'3" H x 21,000 lbs
- 4115mm L x 1753mm W x 1600mm H x 9,500 kg

Sold "as is, where is" FCA Europe.
