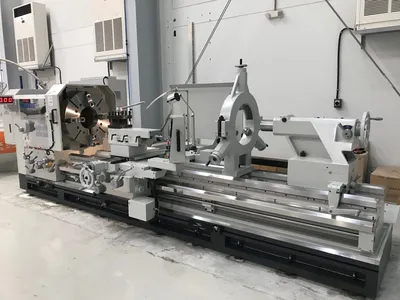

MEGABORE LATHE MODEL PA5021020
Spindle Bore ..............................535 mm
Swing over bed.........................1275 mm
Distance between centers ....... 2000 mm
INBUILT SYSTEMS INCLUDES
1. Infinitely variable inverter drive for Spindle RPM control
2. Equipped with CSS for constant surface speed.
3. Push button triggered auto gear change
DATASHEET of MEGABORE LATHE PA5021020
MODEL PA5021020
CAPACITY Center Height 645 mm
Swing over bed 1275 mm
Swing over cross – slide 1015 mm
Swing over Gap 1740 mm
Gap width from Headstock 600 mm
Distance between centres 2000 mm
BED Bed width 560 mm
Bed width w/ 3rd Support 660 mm
SPINDLE Spindle Bore 535 mm (21”)
Spindle Nose A2-28
Spindle speeds 0-200 rpm
CARRIAGE Cross slide travel 670 mm
Compound slide travel 450 mm
THREAD RANGE Metric Threading 1-56mm (60)
Inch Thread TPI ½-28 (60)
Module thread MOD 0.25-14 (60)
Diametric DP 2-112 (60)
Lead Screw Pitch 12 mm
TAILSTOCK
Quill Diameter 115 mm
Quill travel 200 mm
Quill Taper MT6
MOTOR Motor capacity 30 HP
Variable Speed Inverter Rating 40 HP
Coolant Motor 0.125 HP
Rapid Motor 1 HP
FOOT PRINT Length x width 4250 mm x 1800 mm
STANDARD ACCESSORIES

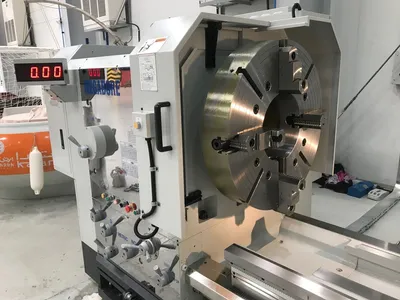

• 2 x 40" OD four Jaw Independent all Steel Chuck
• Chuck Guard two piece type with safety interlock
• Yaskawa Variable Speed Inverter drive, Japan
• Pneumatic Auto Gear shift in headstock
• Carriage mounted follow type rear splash guard

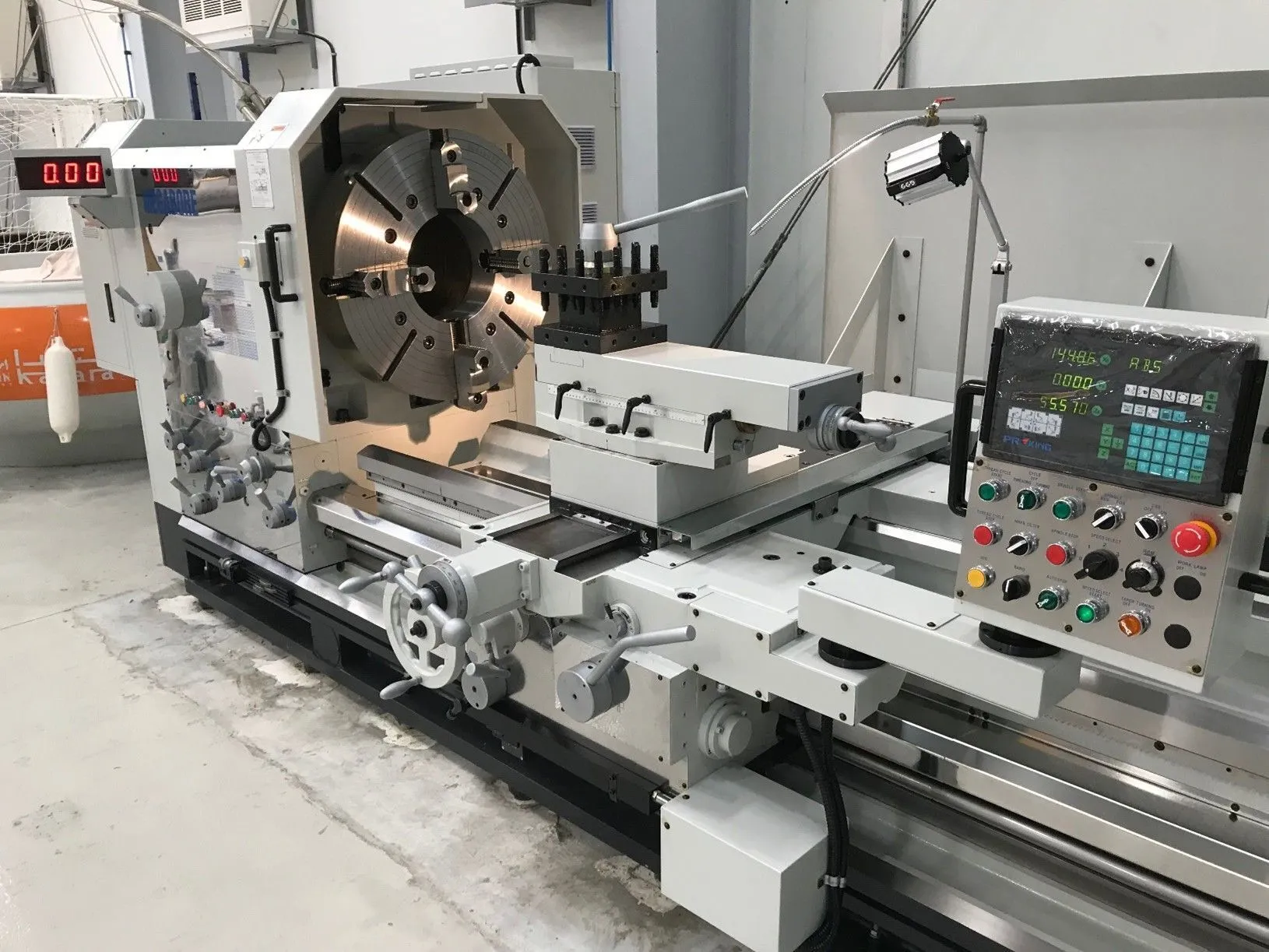

• Digital Read out DRO in X & Z Axis
• 2 x Micrometer Carriage Stopper Type A
• One piece stainless steel lead screw cover
• Water and oil collect pale under apron
• 205mm standard 4 way square tool post
• 1 x Dead Centre with MT#6
• Carriage Auto Stop function
• Machine Auto power off function
• Constant Surface Speed CSS function for surface finish

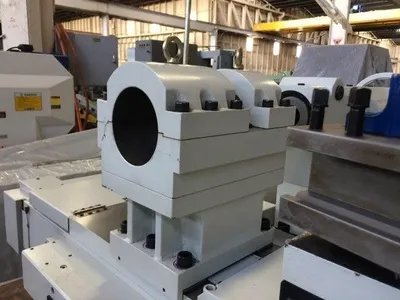

• 1 x Closed Type Fixed Steady Rest 350 – 700 mm
• Thread chasing Dial
• Rapid traverse motor
• 6 way rapid traverse, includes power feed to top slide
• Auto lubrication system
• Overload safety device
• In-built Coolant tank & Coolant System
• Spindle RPM Monitor
• Electromagnetic Spindle Brake
• Halogen Work Light
• Levelling pad, bolt, Tool Box
• Operation and Spare Parts Manual (English)
All photos shown here are for illustration purpose only size and mounted accessories may differ from quote.
