2022 JBT A&B Process Systems Stainless Steel Jacketed Tank with Mixer — MAWP 14.9 PSI @ 200°F — S/N 2106760303C

OVERVIEW

This is a 2022 JBT A&B Process Systems stainless steel jacketed pressure vessel with mixer. Certified by A&B Process Systems. MAWP 14.9/-2 PSI @ 200°F, MDMT -20°F @ 14.9 PSI. Serial Number 2106760303C. Tank is marked PHOS 6. Ready for inspection — contact us to schedule.

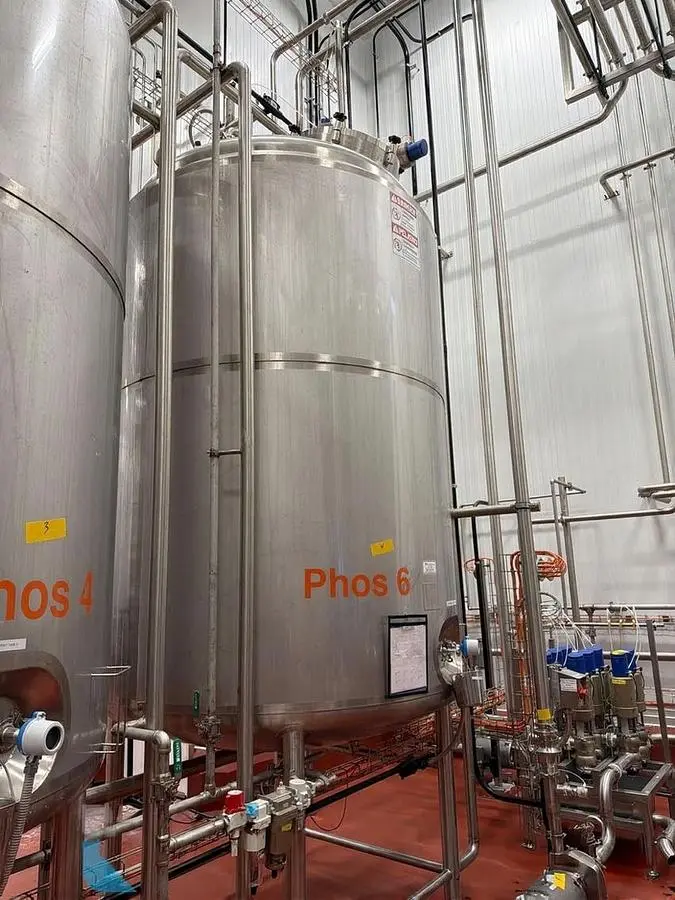

JBT A&B Process Systems stainless steel jacketed tank — vertical cylindrical vessel with dished bottom head, stainless steel tubular leg support frame, top-mounted mixer/agitator, and multiple top and side process connections. Built 2022 to ASME pressure vessel standards and certified by A&B Process Systems. Suitable for food, beverage, dairy, pharmaceutical, or chemical processing applications.
Ideal for food and beverage processing, dairy operations, brewing and fermentation, pharmaceutical manufacturing, chemical blending, or any application requiring a sanitary stainless steel jacketed pressure vessel.

EQUIPMENT SPECIFICATIONS

Manufacturer: JBT — A&B Process Systems
Equipment Type: Stainless Steel Jacketed Tank / Pressure Vessel with Mixer
Serial Number: 2106760303C
Year Built: 2022
Vessel/Shell MAWP: 14.9 / -2 PSI @ 200°F
Vessel/Shell MDMT: -20°F @ 14.9 PSI
Jacket/Tube MAWP: N/A
Jacket/Tube MDMT: N/A
Certification: Certified by A&B Process Systems
Tank Designation: PHOS 6
Construction: Stainless Steel
Orientation: Vertical
Bottom Head: Dished / Cone bottom
Support: Stainless steel tubular leg frame with floor anchoring pads


KEY FEATURES & BENEFITS
Vessel Construction:

Stainless steel construction throughout — sanitary finish
Vertical cylindrical design with dished bottom head
Jacketed vessel — MAWP 14.9/-2 PSI @ 200°F
ASME-rated pressure vessel — certified by A&B Process Systems
Built 2022 — lightly used, excellent condition

Top Head & Connections:

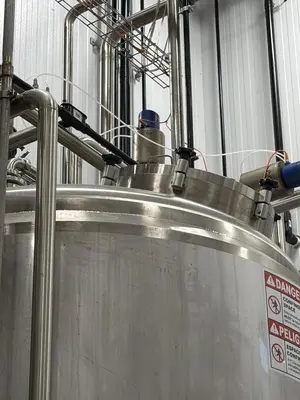

Bolted / clamp-style top head — removable for access and cleaning
Multiple top nozzles and process connections
CIP / spray ball connection visible at top
Agitator / mixer — top-mounted with drive motor and mechanical seal
Level transmitter / probe included

Bottom & Outlet:

Dished bottom head — full drain design
Bottom outlet valve and pneumatic actuator assembly
Air filter / regulator unit on outlet piping — visible in photos
Stainless flanged bottom connections

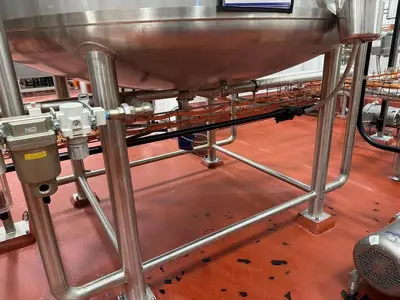

Leg Support Frame:

Stainless steel tubular leg frame — four-leg design
Welded stainless base rails / stretcher frame
Floor anchor pads — bolt-down mounting

Tank Markings:

Marked PHOS 6 — dedicated product designation
Danger / Confined Space labeling — OSHA compliant


SYSTEM COMPONENTS

Stainless steel jacketed vertical tank — dished bottom
Top-mounted agitator / mixer with drive motor and mechanical seal
Removable bolted/clamped top head
Multiple top and side process nozzles
CIP spray ball connection
Level transmitter / probe
Bottom outlet with pneumatic actuator valve
Air filter / regulator assembly on outlet piping
Stainless steel tubular leg support frame with floor anchor pads
A&B Process Systems ASME nameplate — S/N 2106760303C, Y/B 2022


SPECIFICATIONS SUMMARY

Manufacturer: JBT — A&B Process Systems
Serial Number: 2106760303C
Year Built: 2022
Equipment Type: Stainless Steel Jacketed Tank with Mixer
Vessel MAWP: 14.9 / -2 PSI @ 200°F
Vessel MDMT: -20°F @ 14.9 PSI
Jacket MAWP: N/A
Construction: Stainless Steel
Orientation: Vertical
Bottom: Dished
Agitator: Top-mounted mixer with drive motor included
Support: SS tubular leg frame with anchor pads
Tank Designation: PHOS 6
Condition: Used


ADDITIONAL INFORMATION

Condition: Used — 2022 build, lightly used
Manufacturer: JBT — A&B Process Systems
Serial Number: 2106760303C
Year Built: 2022
Vessel MAWP: 14.9 / -2 PSI @ 200°F
Agitator / Mixer: Top-mounted with drive motor, included
Tank Designation: PHOS 6
Inspection: Welcome — contact us to schedule


IMPORTANT NOTES:

Stainless steel jacketed pressure vessel — ASME certified by A&B Process Systems
Tank marked PHOS 6 — dedicated product use designation
Capacity not confirmed — buyer encouraged to verify via documentation or inspection
Buyer responsible for transport and rigging arrangements from current location
Contact us for additional photos, video walkthroughs, or technical questions
