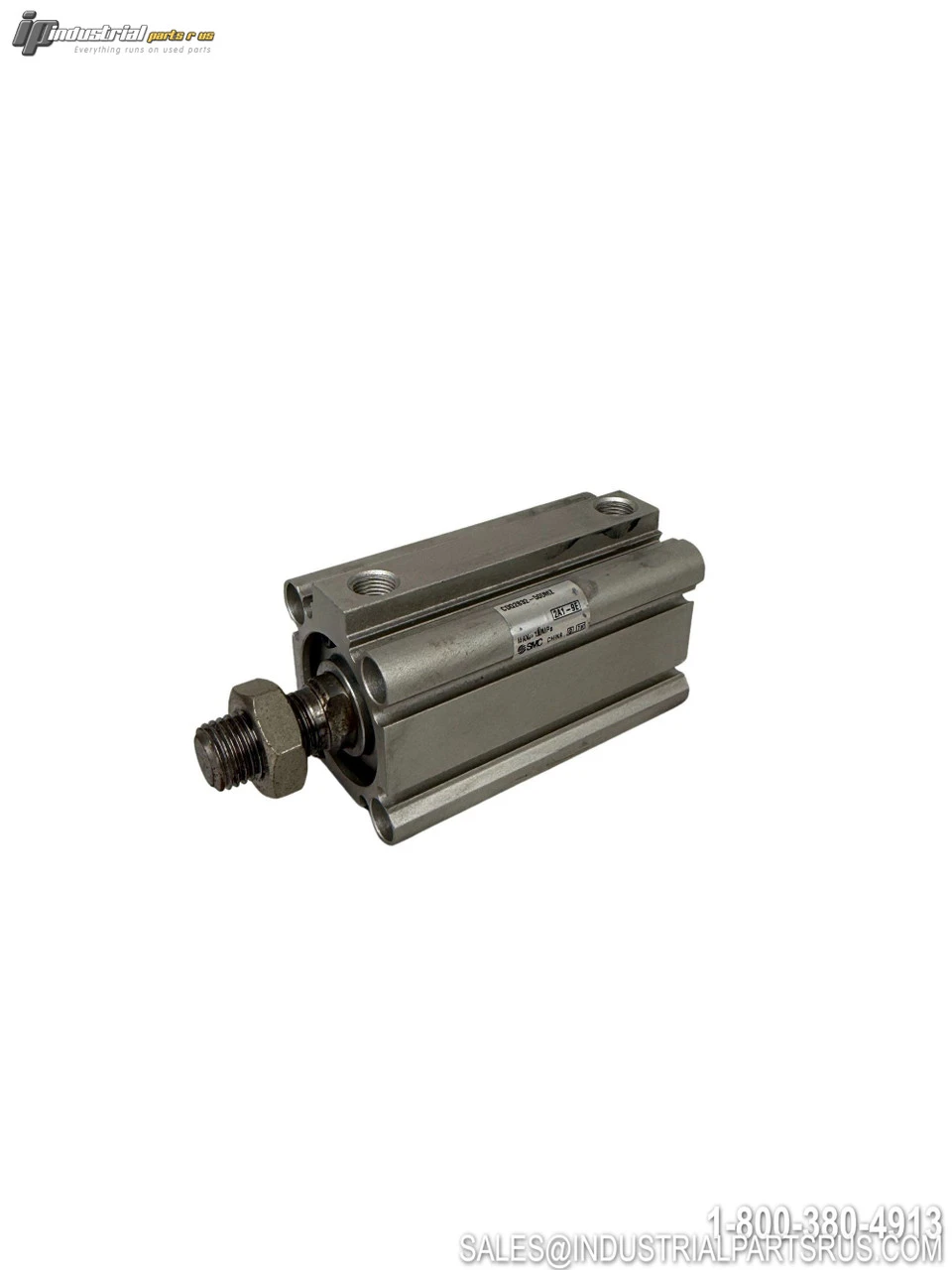

USED SMC CDQ2B32-50DMZ
Overview
Description
The SMC CDQ2B32-50DMZ is a compact pneumatic cylinder designed for space-saving applications. This double acting single rod cylinder features a 32mm bore diameter and 50mm stroke length with built-in magnet for sensor mounting. The cylinder uses standard through-hole mounting and Rc port threads.
Specification
Value
Brand
SMC
Model/Part Number
CDQ2B32-50DMZ
Product Type
Standard Single Rod Pneumatic Compact Cylinder
Bore Diameter
32mm
Stroke Length
50mm
Action Type
Double Acting
Mounting Type
Through-hole (Standard)
Port Thread Type
Rc
Body Option
Standard (Rod end male thread)
Built-in Magnet
Yes
Series
CQ2-Z
Auto Switch Mounting Groove
4 Surfaces (32-100mm bore)
Operating Pressure Range
0.12-1.0 MPa
Material
Aluminum Alloy
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 2.00 LBS | 2.00 LBS |
|---|
SKU: AI1597
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: CDQ2B32-50DMZ
Shelf: B-7
Bore Diameter: 32 mm
Model: CDQ2B32-50DMZ
MPN: CDQ2B32-50DMZ
Type: Compact Cylinder
