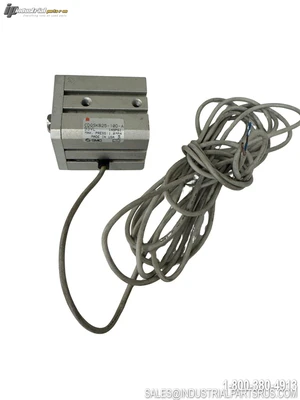

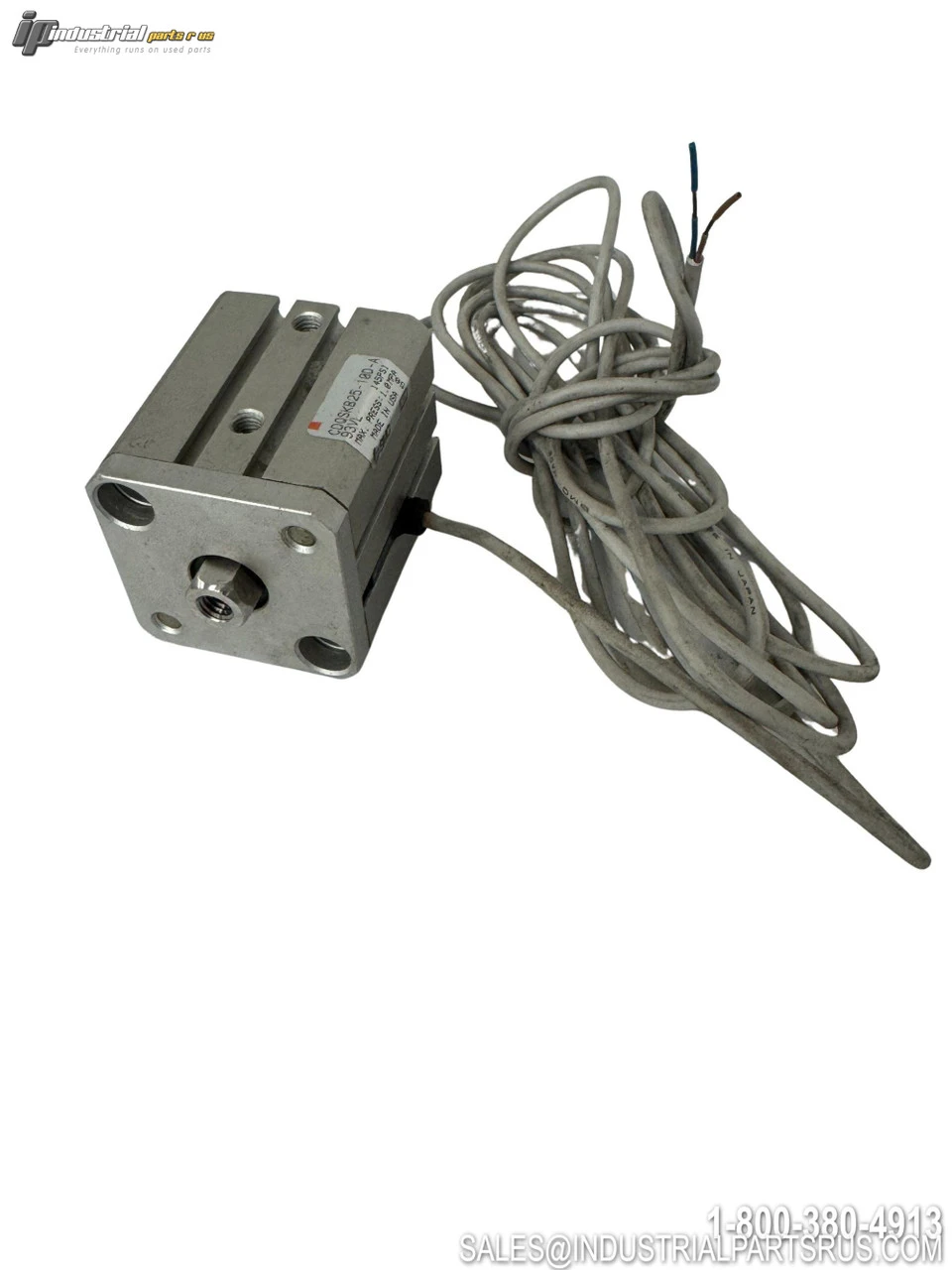

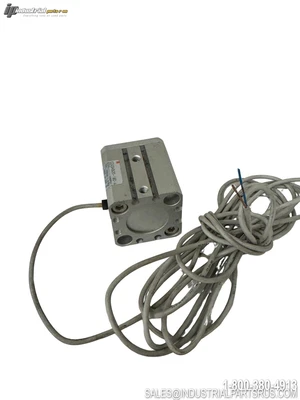

USED SMC CDQSKB25-10D-A93VL
Overview
Description
The SMC CDQSKB25-10D-A93VL is a compact double-acting pneumatic cylinder from SMC's CQSK series, designed for applications requiring small space requirements. This cylinder features a 25mm bore diameter, 10mm stroke length, non-rotating rod design, and includes a built-in magnet with A93VL auto switch for position sensing.
Specification
Value
Brand
SMC
Model/Part Number
CDQSKB25-10D-A93VL
Series
CQSK
Product Family
CQS Series
Cylinder Type
Compact Double-Acting Non-Rotating
Bore Diameter
25mm
Stroke Length
10mm
Action Type
Double-Acting
Rod Type
Single Rod Non-Rotating
Body Style
Square Compact Body
Built-in Magnet
Yes
Auto Switch
A93VL
Maximum Pressure
1.0 MPa (145 psi)
Proof Pressure
1.5 MPa (218 psi)
Minimum Pressure
0.05 MPa (7.3 psi)
Port Connection
Metric M5 x 0.8 Thread
Rod End
Female Thread
Mounting Type
Through-hole Basic (B)
Auto Switch Mounting
3 or 4 Sides
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI1619
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: CDQSKB25-10D-A93VL
Shelf: B-6
Bore Diameter: 25 mm
Model: CDQSKB25-10D-A93VL
MPN: CDQSKB25-10D-A93VL
Type: Pneumatic Cylinder
