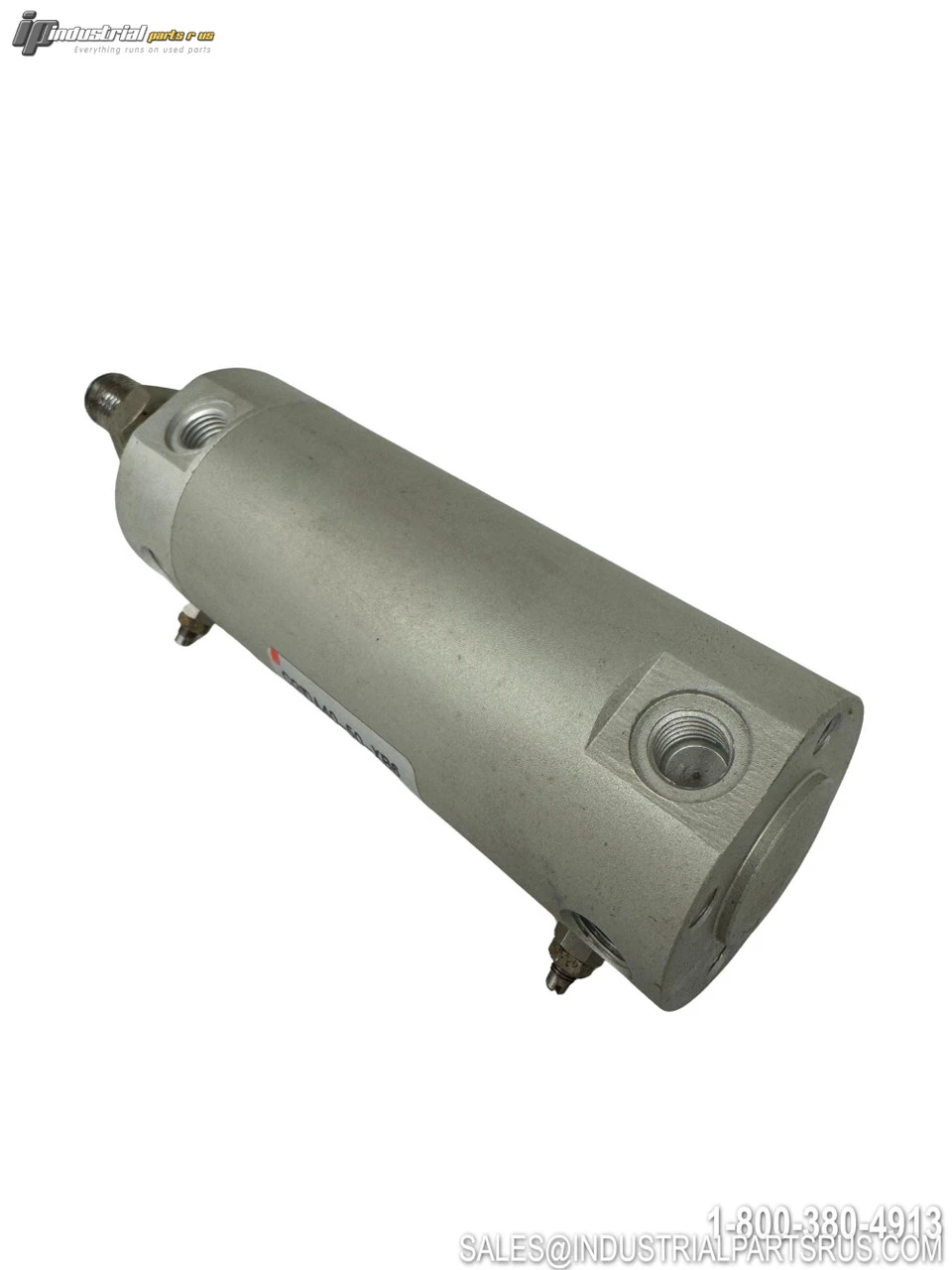

USED SMC CG1DA40-50-XB6
Overview
Description
The SMC CG1DA40-50-XB6 is a double-acting pneumatic cylinder from the CG1 series designed for demanding applications requiring heat resistance. This clevis-mounted cylinder features a 40mm bore diameter with 50mm stroke length and incorporates the -XB6 heat resistant option for operation in high temperature environments up to 150°C.
Specification
Value
Brand
SMC
Model/Part Number
CG1DA40-50-XB6
Series
CG1
Bore Diameter
40mm
Stroke Length
50mm
Cylinder Type
Double Acting
Mounting Type
Clevis (DA)
Maximum Operating Pressure
1.0 MPa (145 psi)
Minimum Operating Pressure
0.05 MPa (8 psi)
Proof Pressure
1.5 MPa
Operating Temperature Range
-10°C to +150°C
Heat Resistant Option
XB6 (Up to 150°C)
Piston Speed
50-500 mm/s
Action
Single Rod
Lubrication
Non-lube
Fluid
Air
Cushion
Air Cushion/Rubber Bumper
Stroke Tolerance
+1.4/-0 mm
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 2.00 LBS | 2.00 LBS |
|---|
SKU: AI1618
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: CG1DA40-50-XB6
Shelf: B-7
Bore Diameter: 40 mm
Model: CG1DA40-50-XB6
MPN: CG1DA40-50-XB6
Type: Pneumatic Cylinder
